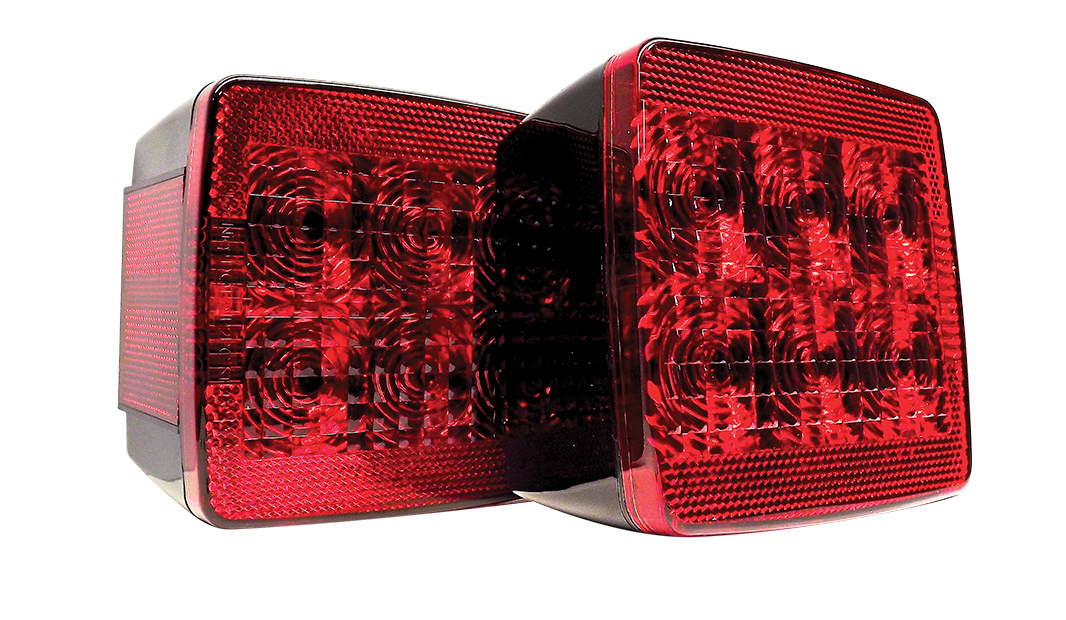

T89 4" TecLoq - Eight Function Box Light
T89 4" TecLoq - Eight Function Box Light
Technical Features
- Locking bracket system that allows for no hardware to be used during tail light installation and the manufacturing process.
- Ability to cut labor times for installs, as no hardware necessary to install
- T89 TecLoq system brackets can also accommodate traditional lighting sources, for easy roadside fixes when original lights may not be accessible.
- Meets or exceeds FMVSS 108, and is dust and water proof being sonically welded.
- TecNiq's Limited Lifetime Warranty
- WIRE COLORS
White – Ground, Brown – Low/License Plate (left), Green (right) – High, Yellow (left) – High
TecNiq's ALL NEW T89 TecLoq System is an evolution in the trailer lighting industry. The TecLoq lights feature an all new, locking interface with a bracket design that locks the box tail light into place with no fasteners necessary. The T89 box light is an 8 function light (left side includes license plate light) and/or 7 function for the right, including stop, tail, turn, combination side marker and clearance lights, as well as rear and side reflectors. These lights are SUBMERSIBLE!

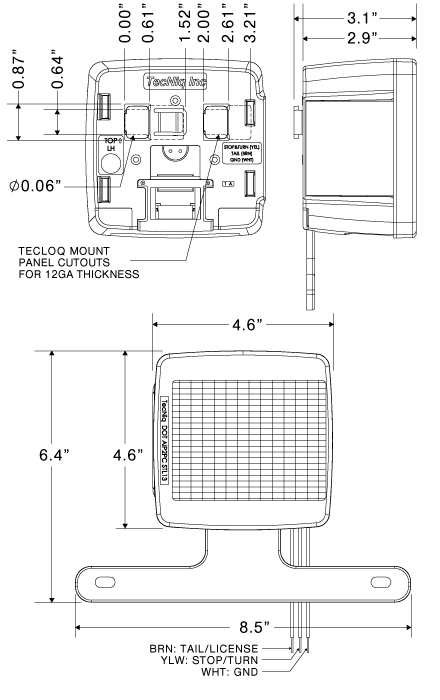

| Dimensions |
|
| LEDs | 7 (+1 white license plate light on left side) |
| Voltage | 9-14VDC |
| Current |
0.15A-0.19A - Left 0.05A-0.09A - Right + 0.9A-0.15A - Brake |
| Connectors | 16" Pigtail or 16" 0.156" bullets |
| Mounting | TecLoq - hardware free system |
| LED Colors | Red |
| Wire Colors |
White Wire - Ground Brown Wire - Low Intensity Green Wire - Right Stop/Turn Yellow Wire - Left Stop/Turn |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T89-RRLP-1 |
8 Function 4" Box Tail Light Snap Mount Left Pigtail
Does not include mounting bracket
|
 |
 |
Pigtail | ||
| T89-RRRP-1 |
7 Function 4" Box Tail Light Snap Mount Right Pigtail
|
|
|
Pigtail |
