P10 : Flush Mounted Spreader Lighting

  • Designed for the most demanding task illumination applications, in the most extreme environments
  • Vibration resistant and 100% water proof
  • Built with anodized and white powder coated aluminum bodies with impact-resistant polycarbonate flood projection lenses for exceptional durability
  • Available with four high-performance white LEDs, or two white and two night-vision friendly red.
  • Proprietary thermal management provides powerful performance in a small package
  • Operating voltage range of 9 - 30 VDC
  • Completely waterproof and sealed to IP68 standards.
  • Reliable performance over 50,000 hours
  • WIRE COLORS
    Black –
    Ground, White – Positive
Dust and Waterproof. IP68 Rated.
Meets all FMVSS 108 requirements.
Reliable over 50,000 hours.

Related Products


  Product Description

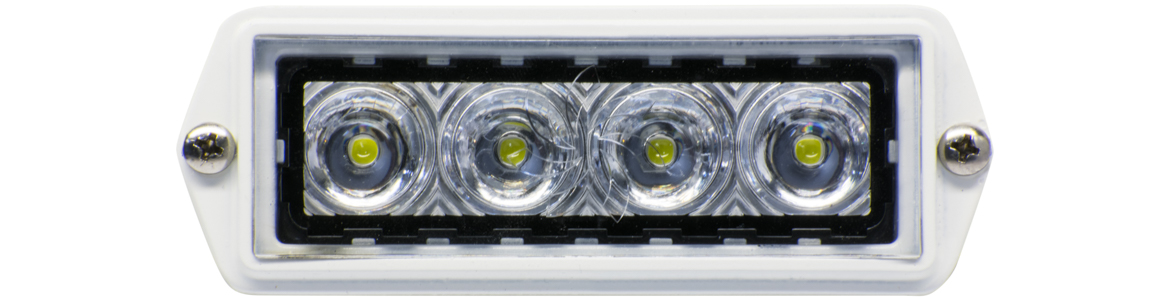

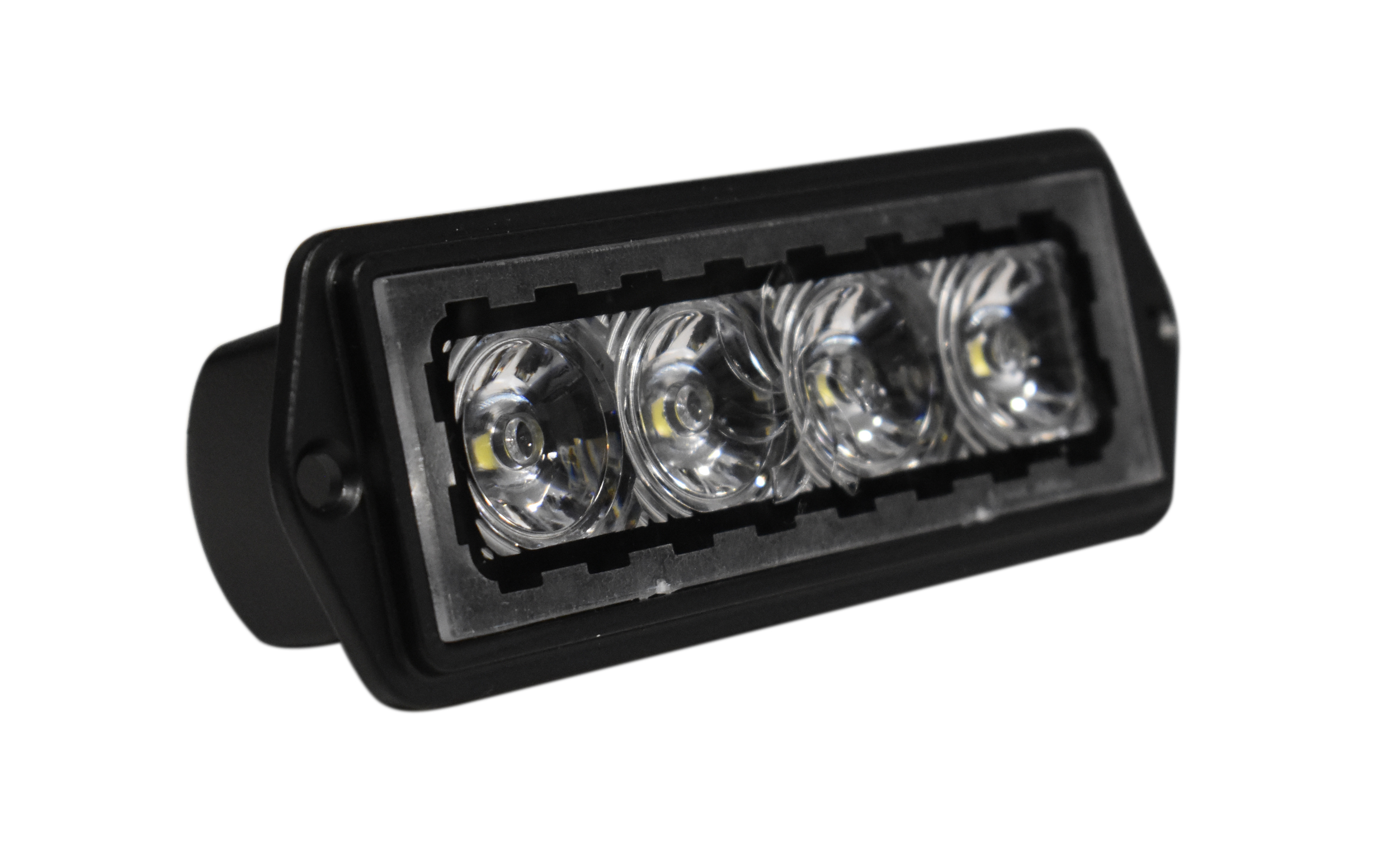

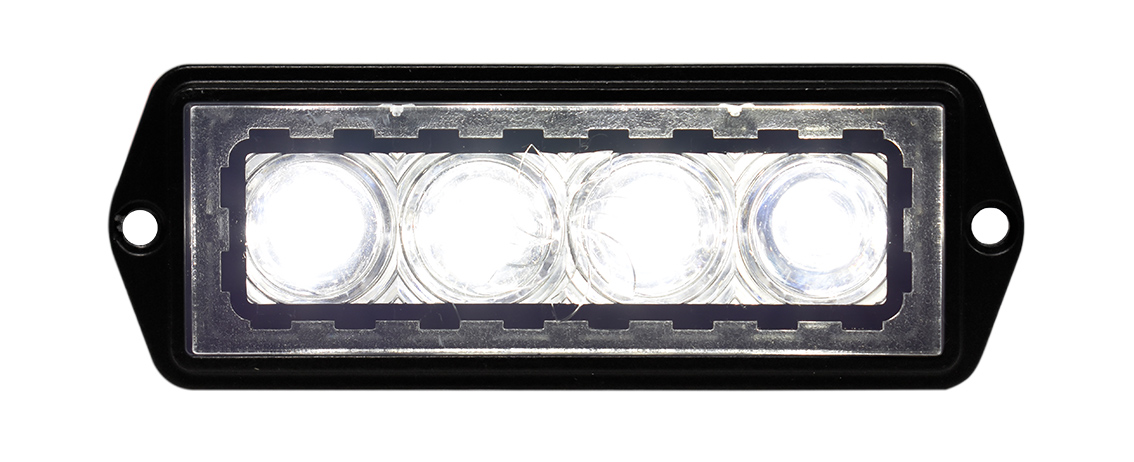

The TecNiq P10 was built for the demanding task of illumination in the most extreme conditions. Comprised of anodized aluminum, impact resistant polycarbonate, 100% waterproof and vibration resistant - the P10 is a work horse. Proven performance with TecNiq proprietary thermal management testing and IP68 rated. Our flush mount work light beats the competition in quality and performance.

  Product Specifications

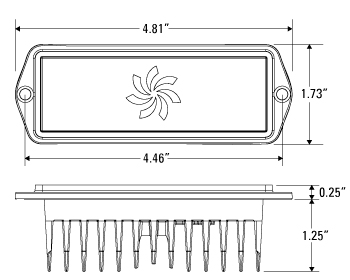

Dimensions:
LEDs: 4 (white)
2 + 2 red (red option)
Lumens: 1300 Lumens
700 Lumens + 155 (red combo model)
Voltage: 9 - 30VDC
Current (12V/24V): 1.2A / 0.6A (White)
0.6A +0.3A(red) / 0.3A +0.15A(red)
Mounting: Flush mounted using two regular screws
Wire: 9" Pigtail
Wire Colors:
Black WireGround
White Wire12/24VDC Power

  Part Numbers

Part NumberDescriptionLED – LensStdPackConnector
P10-WBFP-1Spreader Light, White LED, Flush Mt. Black Finish, Pigtail Wires   2Sheathed Pigtail (9")
P10-WRBFP-1Spreader Light, White & Red LED, Flush Mt. Black Finish, Pigtail Wires   2Sheathed Pigtail (9")
P10-WRFP-1Spreader Light, White & Red LED, Flush Mt. White Finish, Pigtail Wires   2Sheathed Pigtail (9")
P10-WWFP-1Spreader Light, White LED, Flush Mt. White Finish, Pigtail Wires   2Sheathed Pigtail (9")
