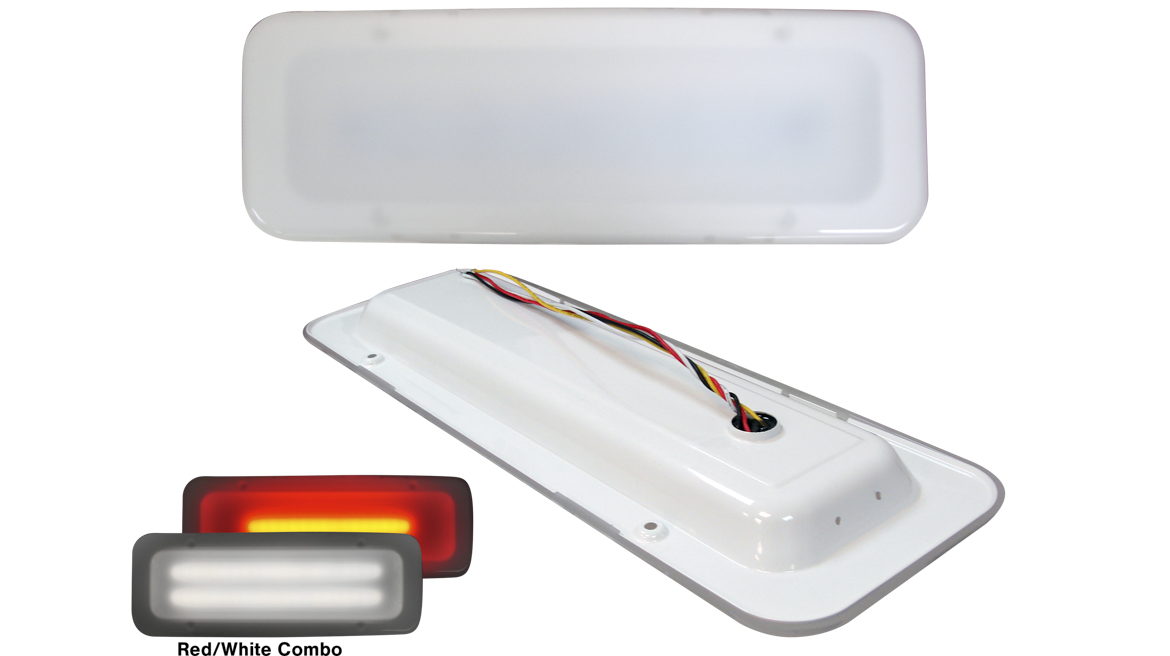

E30 High Performance Ceiling Light

Technical Features

  • Powerful 1050-2100 lumen output
  • Available with 21 or 42 LEDs that minimize bright spots and reduce shadows
  • Excellent replacement for fluorescent light fixtures
  • Red/white combination lamps are available for tactical vision applications
  • Moisture-resistant, vibration proof light design
  • NFPA and Triple K compliant
  • White powder coated finish
  • WIRE COLORS
    Black –
    Ground, White – Low Intensity, Yellow – High Intensity, Red (red/white model) – Red LEDs

TecNiq's E30 offers a unique and elegant design that includes top-end LEDs, urethane potting and military-grade circuit board material encased in extra thick polycarbonate that results in a tough, reliable lighting solution at an impressive price. When you include TecNiq's AccuColor technology for color balance, you have an unbeatable combination of high-performance and value.

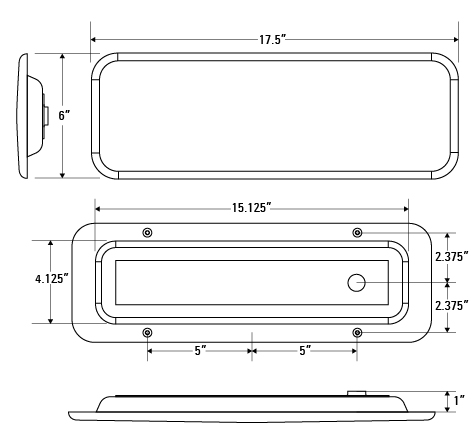

https://tecniqinc.com/img/product/diagrams/diagram_E30.jpg
21 or 42 + 16 Red (optional)
1050 Lumens - (21 LED)
2100 Lumens - (42 LED)
9-14VDC
0.7A - (21 LED)
1.3A - (42 LED)
+0.65A-0.90A - (Red)
12" Pigtail
Mounts using (4) #10 screws hidden by the lens
White • White/Red
https://tecniqinc.com/img/product/diagrams/angle_generic180.jpg
Black - Ground
White - Low Intensity
Yellow - High Intensity
Red (red/white model) - Red LEDs
Black

Downloadable Resources

Name Description LED Lens STD Pack Connector
E30-L000-1 Recessed 4K White 42 LED Light 6"x17.5" Neutral White Clear 12
E30-L00M-1 Recessed 4K White 42 LED Light 6"x17.5" w/Motion Detection Neutral White Clear 12
E30-L00R-1 Recessed 4K White/Red 42/16 LED Light 6"x17.5" Neutral White/Red Clear 12
E30-L010-1 Recessed 4K White 21 LED Light 6"x17.5" Neutral White Clear 12
E30-L01R-1 Recessed 4K White/Red 21/16 LED Light 6"x17.5" Neutral White/Red Clear 12
E30-L0S0-1 Recessed 4K White 42 LED Light 6"x17.5" Switched Neutral White Clear 12
E30-L0SR-1 Recessed 4K White/Red 42/16 LED Light 6"x17.5" Switched Neutral White/Red Clear 12
E30-L1S0-1 Recessed 4K White 21 LED Light 6"x17.5" Switched Neutral White Clear 12
E30-L1SR-1 Recessed 4K White/Red 21/16 LED Light 6"x17.5" Switched Neutral White/Red Clear 12
