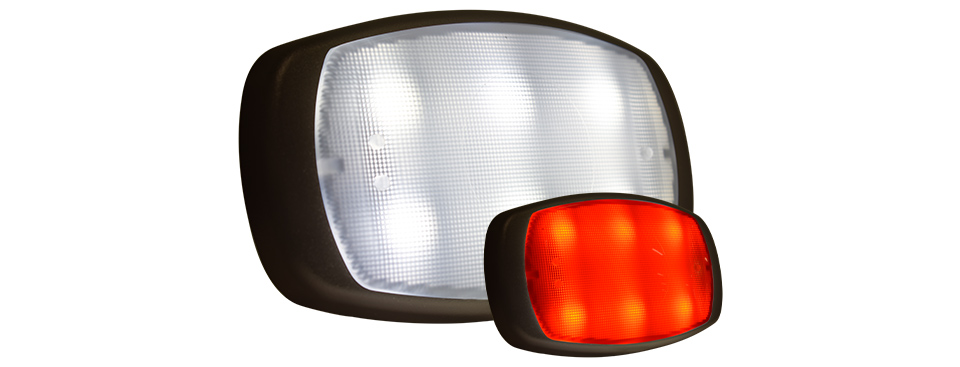

E12 White/Red Combo Dome Light
E12 White/Red Combo Dome Light
Technical Features
- Surface mounted for ease of installation - requires one 3/4" wire hole
- Vibration resistant, low profile design
- Reliable performance over 50,000 hours
- Lamp output of 550 lumens
- Excellent optic quality with impact resistant lensing
- WIRE COLORS
Black – Ground, Red – Positive, Green – Red/White Indicator,
White – White Door Switch Input (12V or Ground),
Blue – Red Door Switch Input (12V or Ground)
The All NEW TecNiq E12 White/Red Combo Dome Light is a surface mounted dome light, that offers a convenient push body design. The E12 puts out 550 lumens of light, with a vibration resistant design, excellent optic quality and and impact resistant lens. White can be connected to the white door on apparatuses, and the Blue wire will connect to the Red Door switch. Light functions can easily be toggled through even while wearing fire protectant gloves. The E12 comes with a 9" pigtail connector and operates in the 9-14V DC power range.

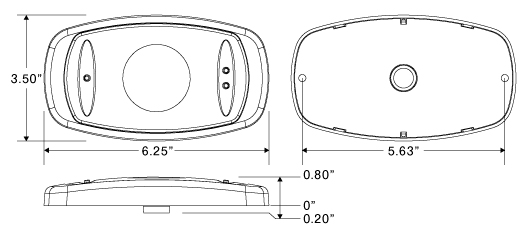

| Dimensions |
|
| LEDs | 14 |
| Lumens |
550 (high) 220 (low) |
| Voltage | 9-14VDC |
| Current |
Nominal Current: 0.36A -nbsp;White High Mode 0.07A -nbsp;White Low Mode 0.09A -nbsp;Red Mode |
| Connectors | 9" Pigtail |
| Mounting | Surface mount using (2) #6 screws |
| LED Colors | White/Red Combo |
| Wire Colors |
Red Wire - 12V DC Power Black Wire - Ground Green Wire - Red/White Indicator White Wire - White Door Switch Input (12V or Ground) Blue Wire - Red Door Switch Input (12V or Ground) |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| E12-WB0R-1 | White Red Combo Dome Light w/ 3P Conn |
 |
 |
36 |
|
|
| E12-WB0RP-1 | White Red Combo Dome Light w/ Pigtails |
|
|
36 |
|
|
| E12-WB0RX-1 | White Red Combo Dome Lt 3P Molex |
 |
|
|
||
| E12-WB1R-1 | ***White Red Combo Dome Light +DT w/ 3P Conn |
|
|
|
