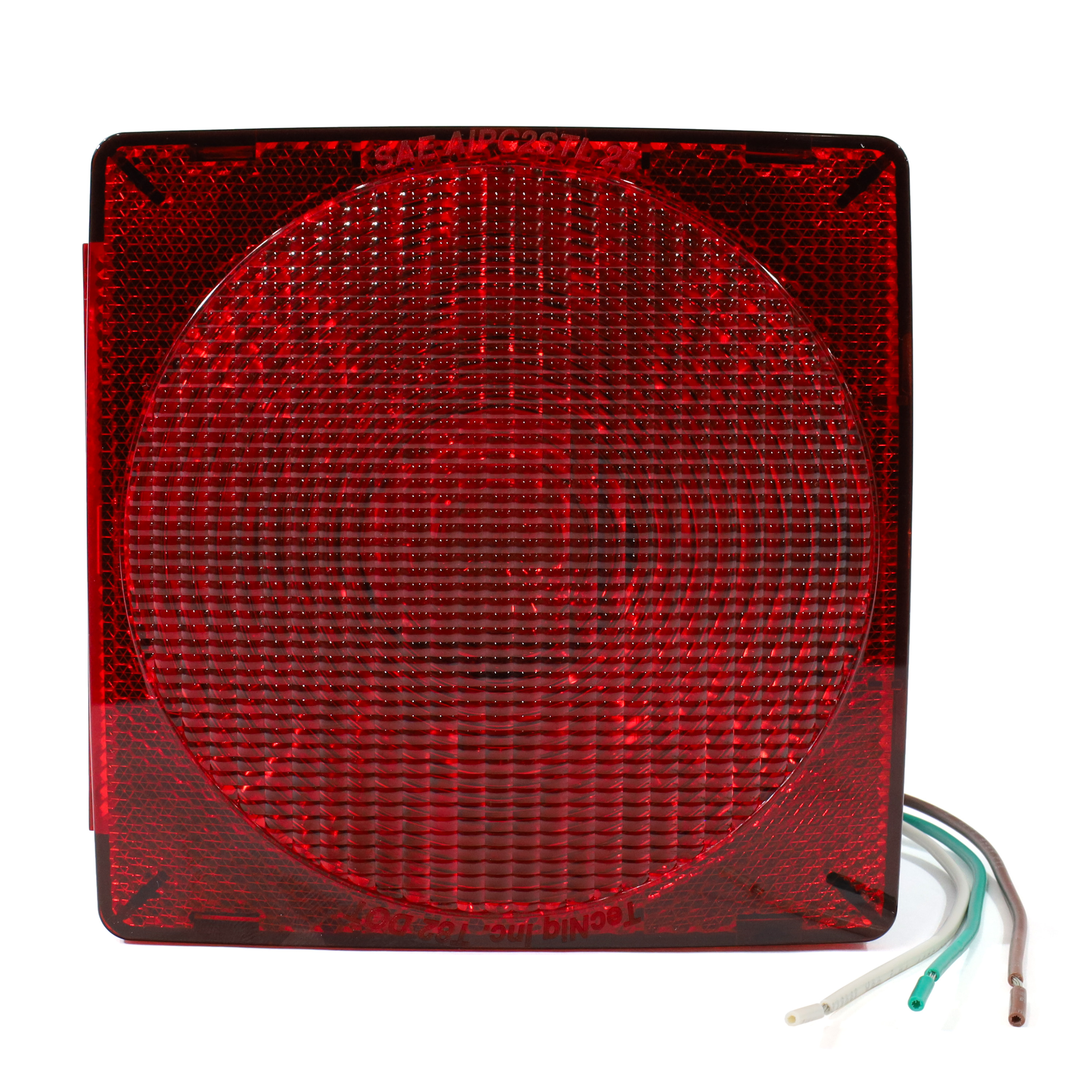

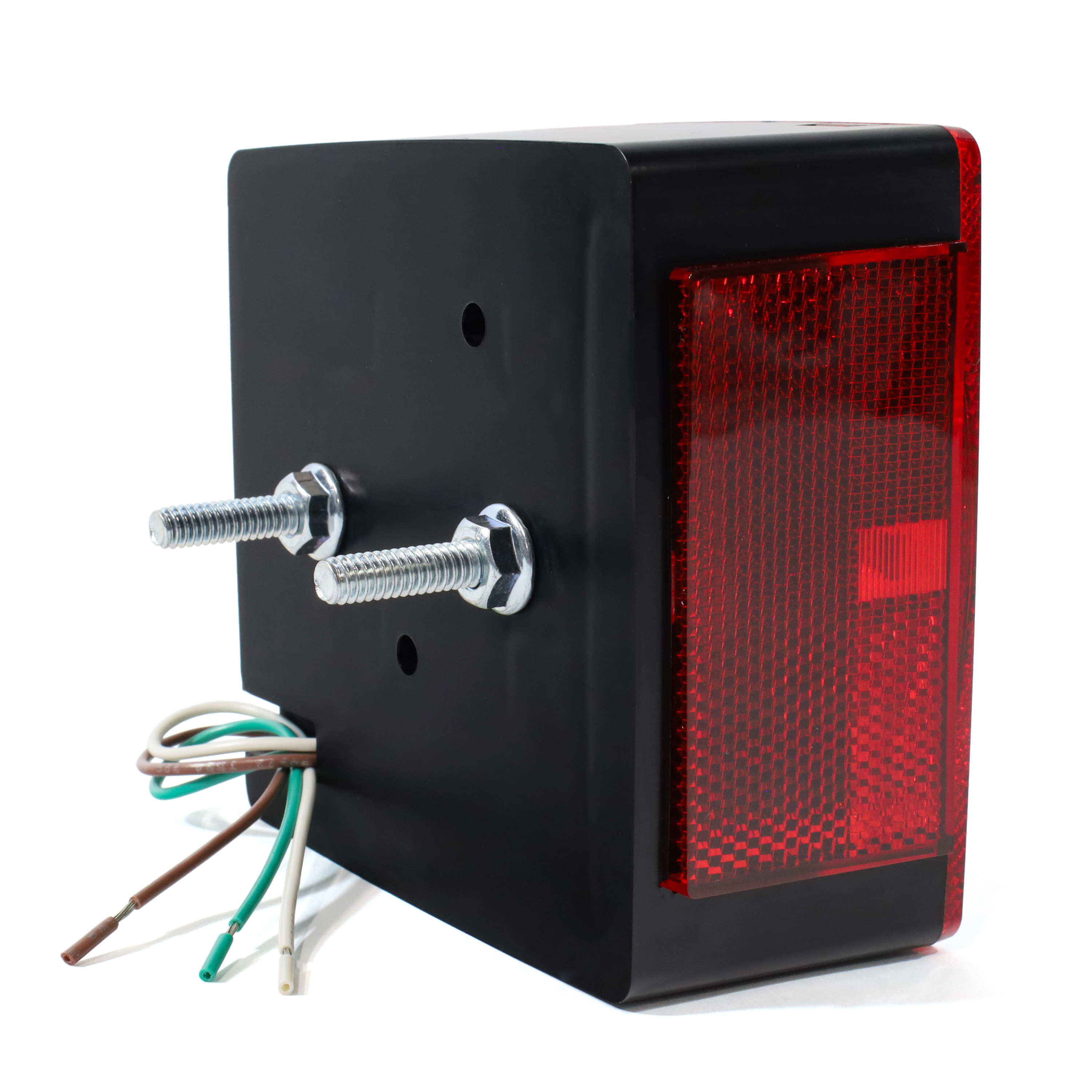

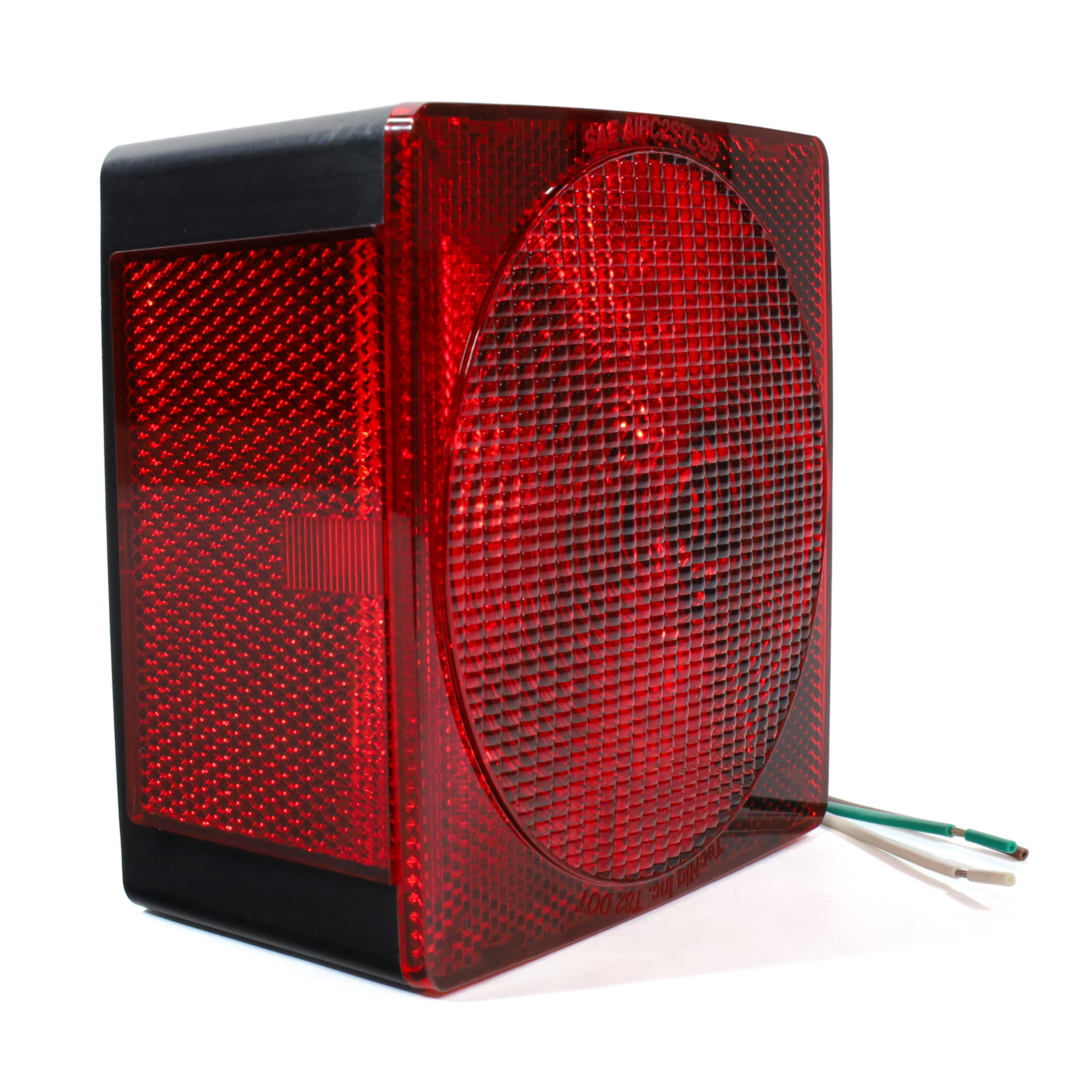

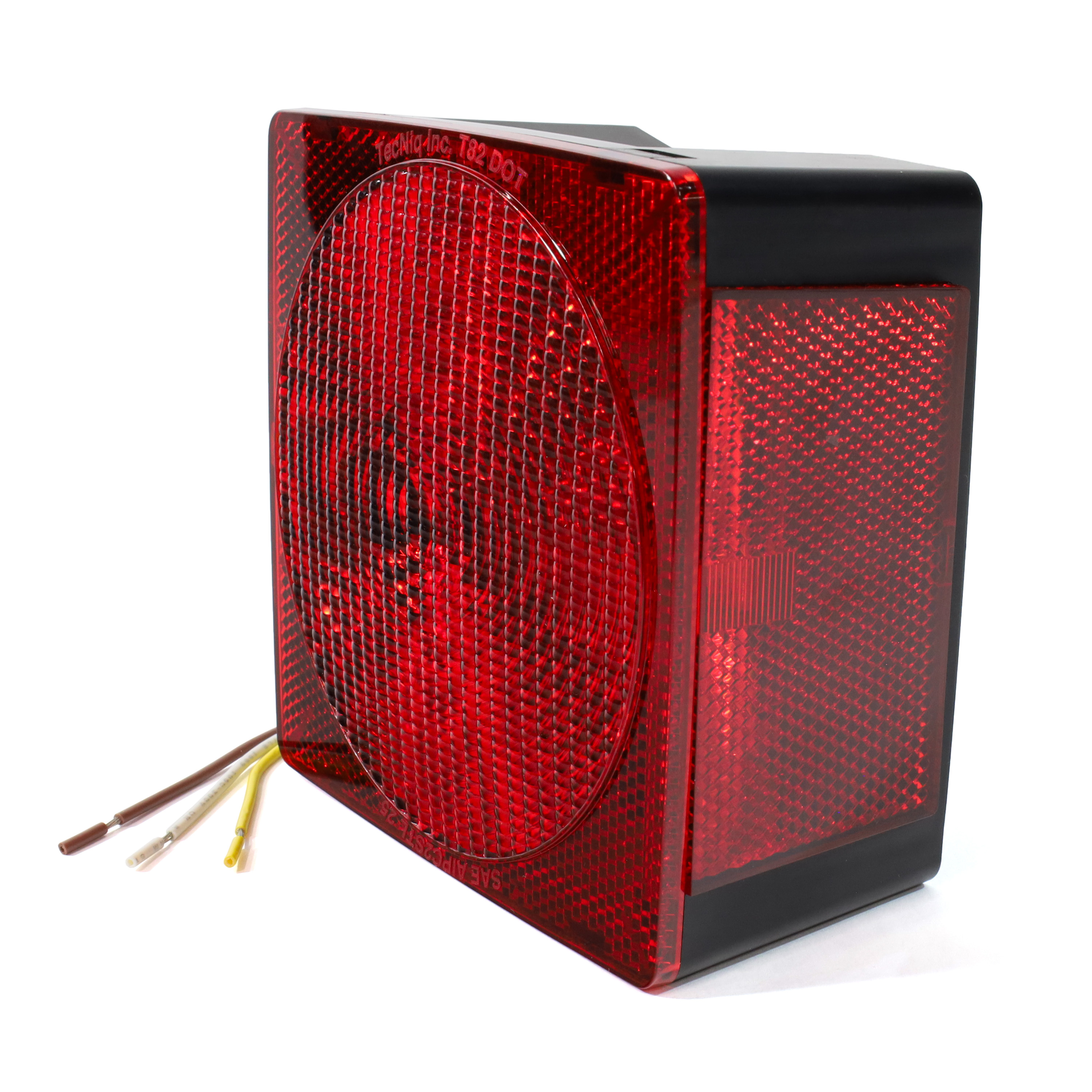

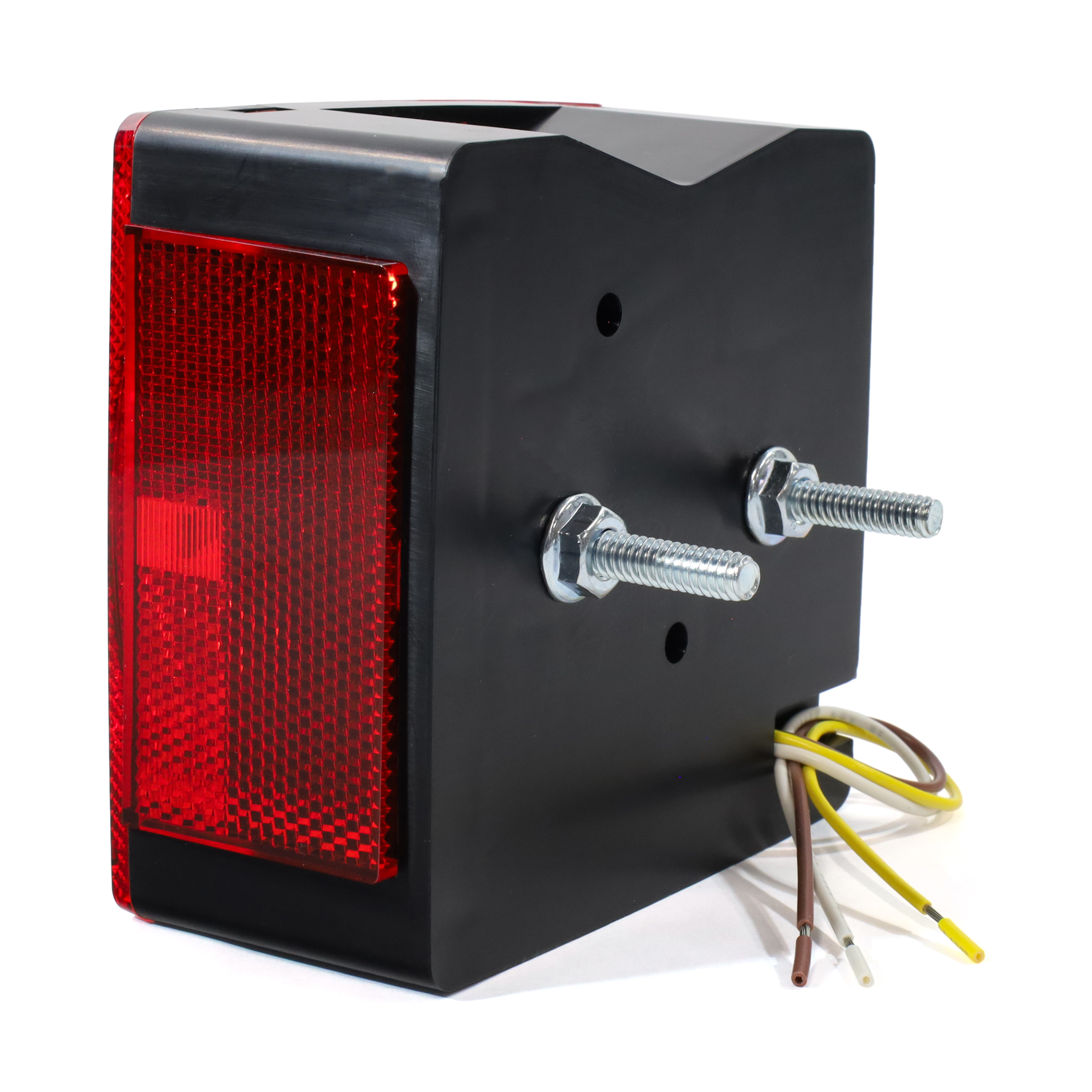

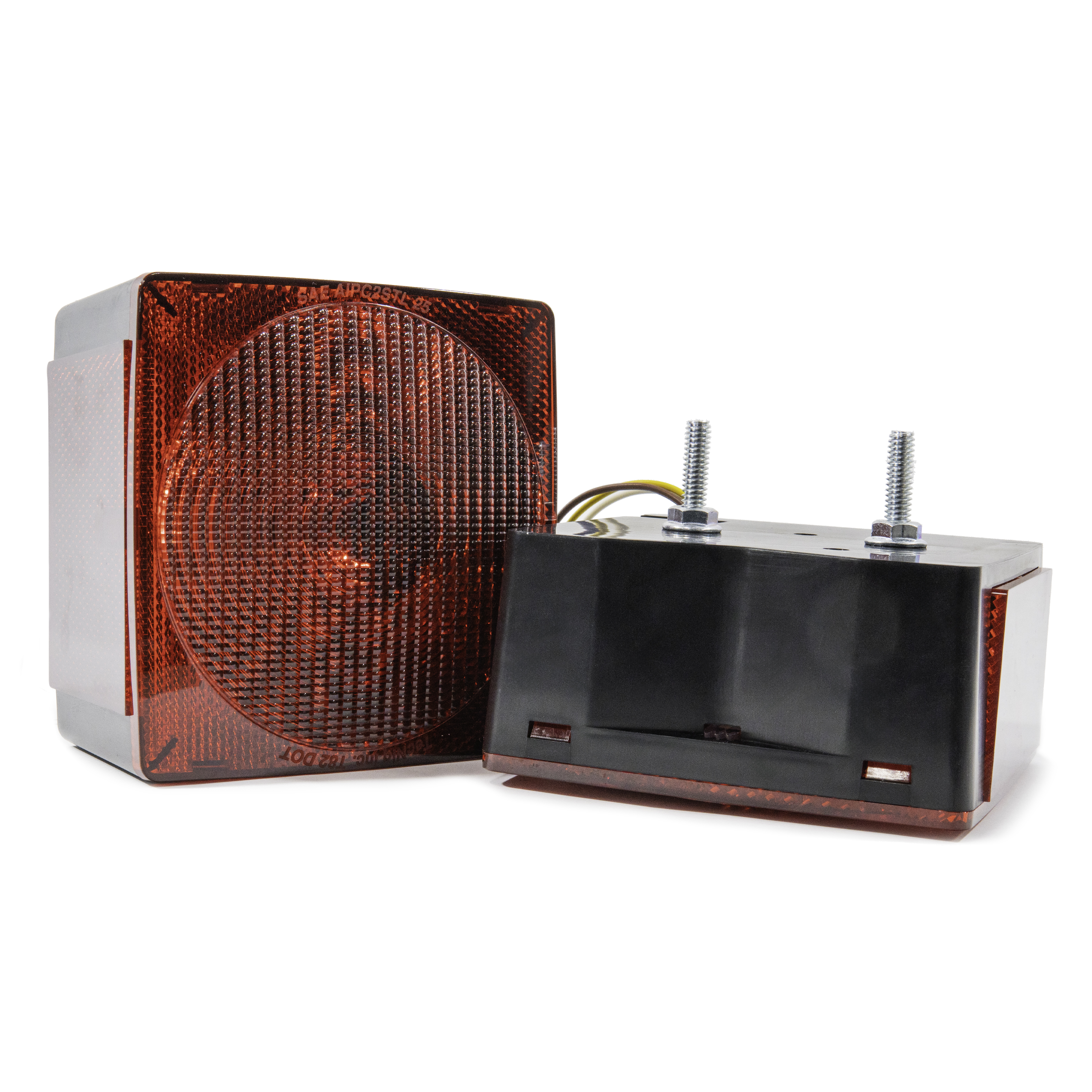

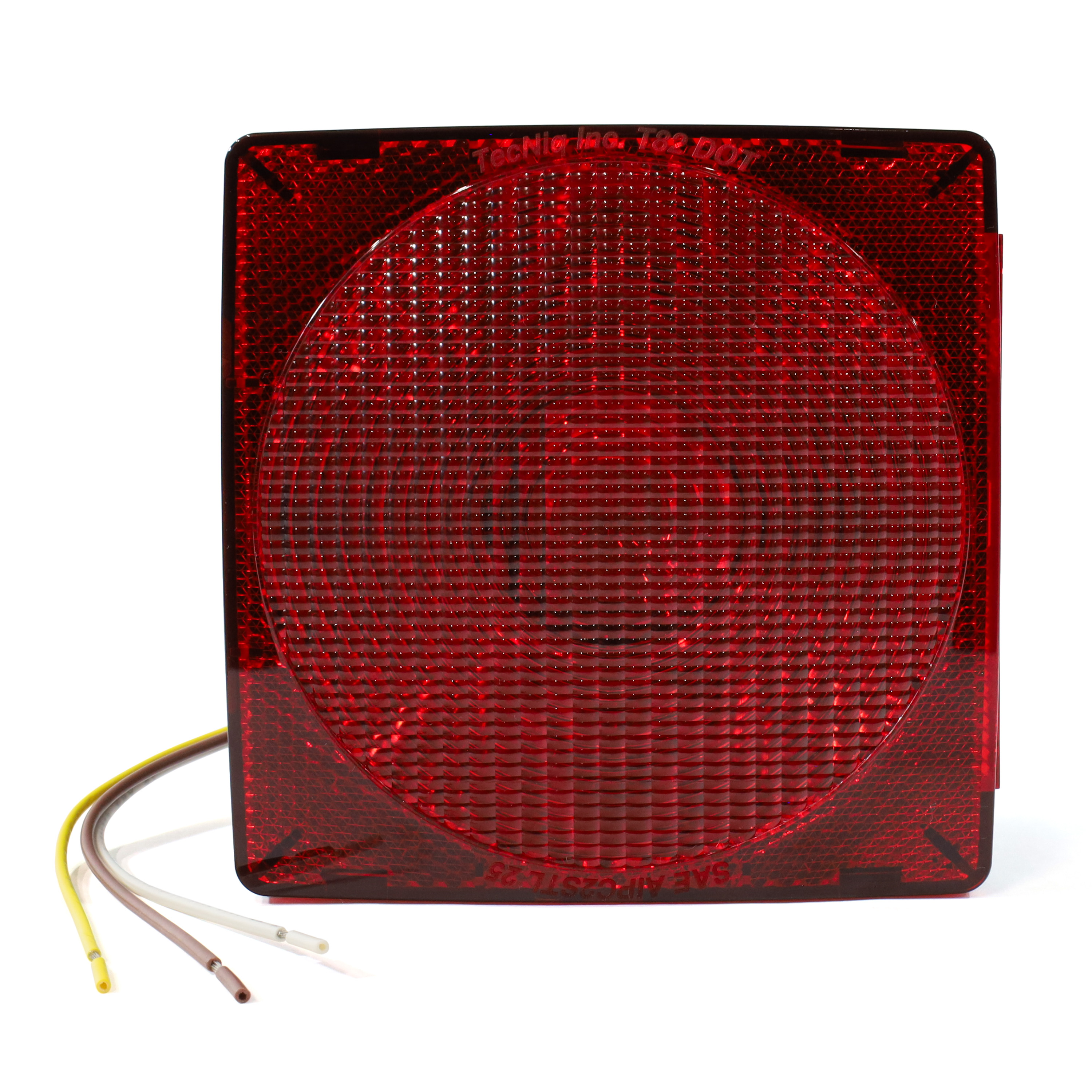

T82 4" Eight Function Box Tail Light
T82 4" Eight Function Box Tail Light
Technical Features
- Multi-Function 4" box tail light
- IP68 Rated - Dust and Waterproof
- FMVSS 108 - meets all standards for wide and narrow vehicles
- Functions include : Stop • Turn • Tail • Clearance • Side marker • Side Reflector • Rear Reflector • License Plate Light (Left)
The T82 is able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. The T82 is sonically welded to create a fully sealed housing, ensuring maximum protection against water and environmental intrusion. A great choice for light-duty trailers, this all-in-one light helps simplify your lighting setup.
| Dimensions |
4.52" x 4.5" x 2.23"
|
| LEDs | 1 |
| Current |
Stop/Turn: 0.153A - 0.207A Tail including Sidemarker/License: 0.085A - 0.115A |
| Connectors | Pigtail |
| Mounting | surface mount with Carriage bolt |
| LED Colors | White |
| Wire Colors |
White - Ground Green/Yellow - Stop/Trun Brown - Tail |
| Ground | White |
| Lens Colors | Red |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T82-RRL0-1 |
4IN Box STTR LH
|
 |
 |
Pigtail | ||
| T82-RRR0-1 |
4IN Box STTR RH
|
|
|
pigtail |
