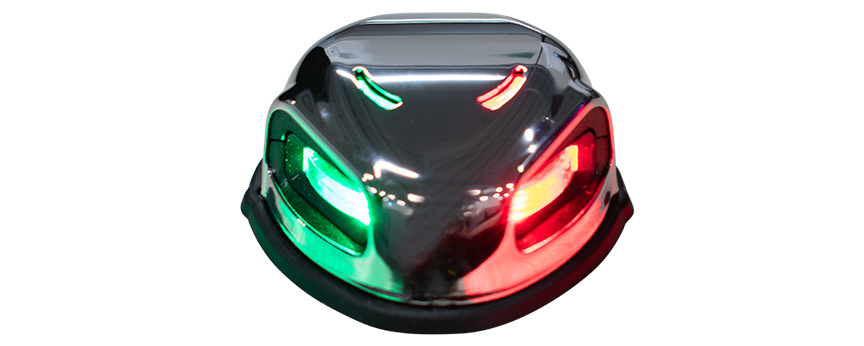

M20 Navigation Light

Technical Features

  • Reinforced, sleek design providing a lifetime of navigation lighting
  • Uses our TecSeal Potting - Guaranteed sealed light
  • Meets or exceeds IP68 rating for dust and waterproof
  • Reliable 100,000 hour life performance
  • WIRE COLORS
    Black –     Ground, White – Positive

Our M20 sleek design navigation light proves that you don't have to compromise looks for safety. Constructed from quality materials, this light is IP68 rated and backed by our limited lifetime guarantee.

Related Products

Dimensions

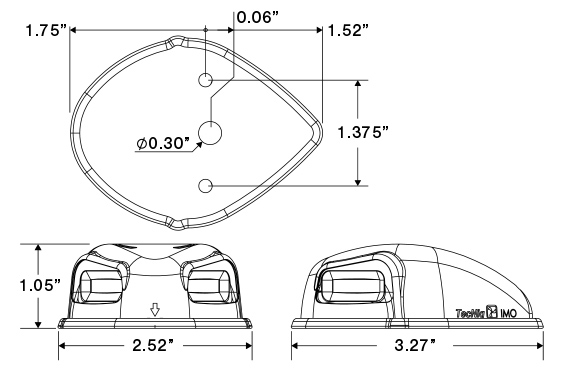

https://tecniqinc.com/img/product/diagrams/diagram_M20-2.jpg

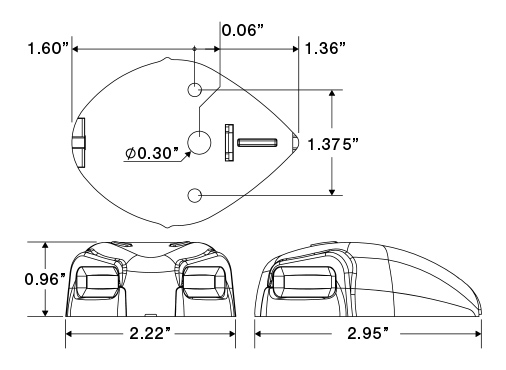

https://tecniqinc.com/img/product/diagrams/diagram_M20-1.jpg
Voltage 9-14VDC
Current 0.39A - 0.51A – Green
0.39A - 0.51A – Red
0.73A - 0.97A – Red/Green
Connectors 6" Pigtail
Mounting Surface mounted with two screws
LED Colors Red/Green
Wire Colors Black Wire - Ground
White Wire - 12VDC Power
Ground Black
Range 2 Nautical Miles

Downloadable Resources

M20 M22 Installation Instructions
M20 Installation Instructions
M20 Specsheet
M20 Sales Sheet
Name Description LED Lens STD Pack Connector
M20-2B10-1 Bi color navigation light no cover 12in wires Red/Green Clear
M20-2S00-1 Bi color navigation light stainless cover Red/Green Clear 100
M20-2S00-7 M20 Bi color navigation light stainless cover Red/Green Clear
M20-2S0E-1 Bi Color Navigation Lt SS Cvr W xT04-3P Conn Red/Green Clear
M20-2S0F-1 Bi Color Navigation Lt SS Cvr W xT04-2P Red/Green Clear
M20-2S0V-1 Bi Color Navigation Lt SS Cvr .25IN Male Spade Red/Green Clear
M20-G000-1 Starboard Light Engine with Lens Using Backer Green Clear 100
M20-G01D-1 Starboard Nav Light Engine Assembly w/ xT06 Socket 17in Wire Green Clear 100

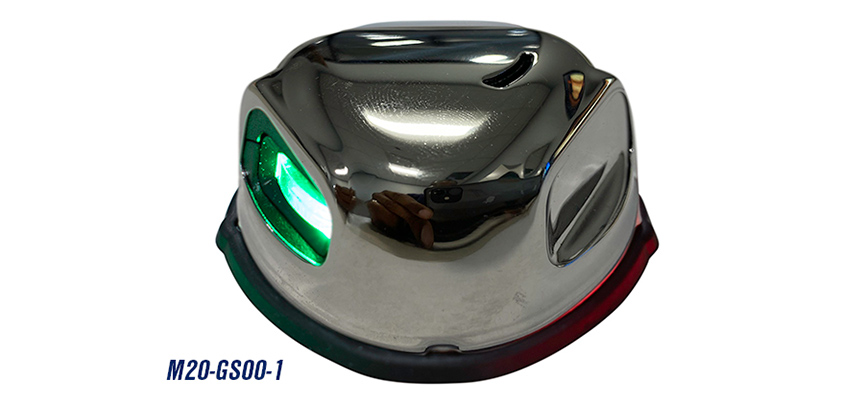

M20-GS00-1 Starboard navigation light stainless cover Green Clear 100
M20-GS0F-1 Starboard Navigation Lt SS Cvr W xT04-2P Pinned Green Clear
M20-R000-1 Port Light Engine with Lens Using Backer Red Clear 100
M20-R01D-1 Nav Lt Red Port SM 17IN wire w xT06-2S Red Clear 100
M20-RG10-1 Bi Color Navigation Light No Housing 12in Wires Red Clear 100

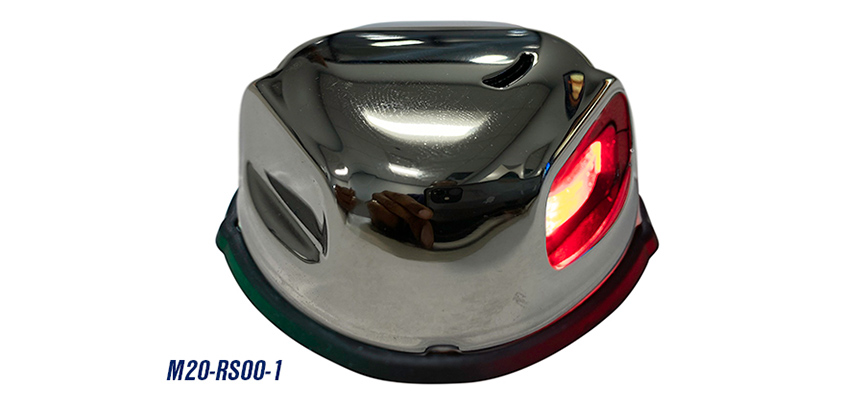

M20-RS00-1 Port navigation light stainless cover Red Clear 100
M20-RS0F-1 Port Navigation Lt SS Cvr W xT04-2P Pinned Red Clear
