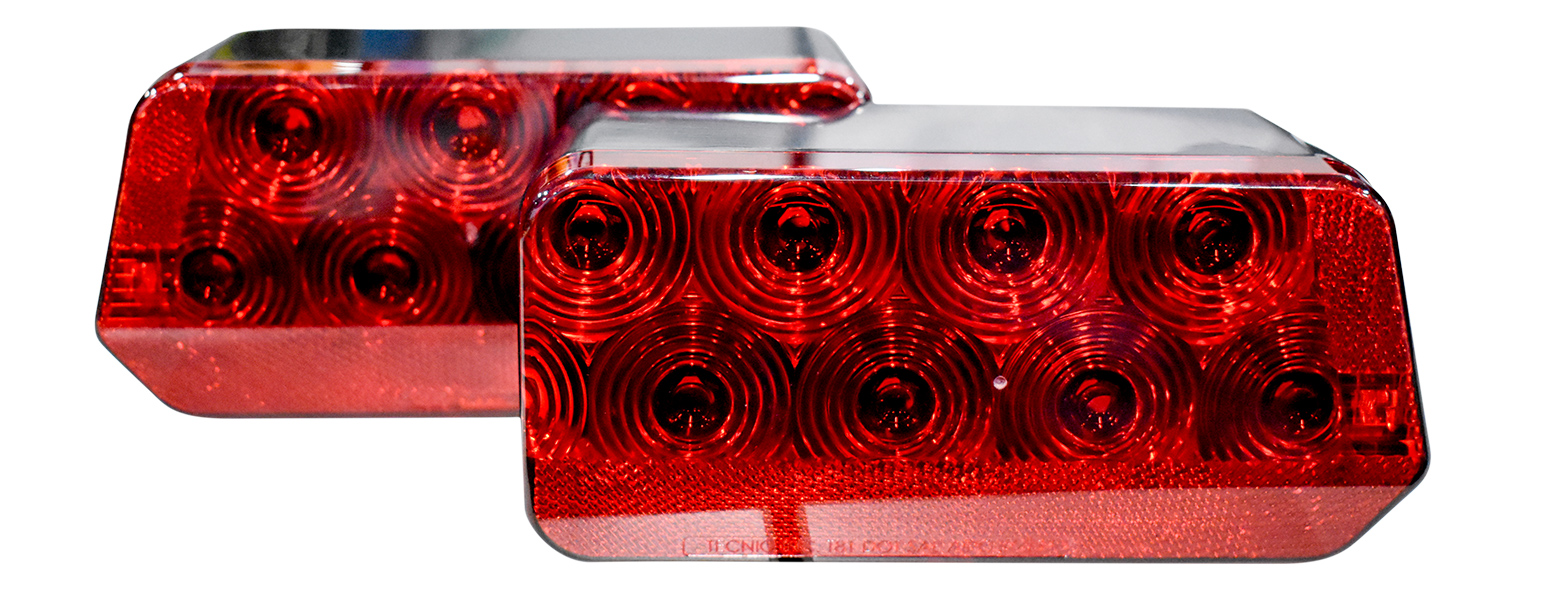

T81 7.5" Contoured Eight Function Box Tail Light
T81 7.5" Contoured Eight Function Box Tail Light
Technical Features
- Multi-Function 8" low profile tail light
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Meets all FMVSS 108 requirements for narrow and wide vehicles
- Reliable performance over 100,000 hours
- Functions include : Stop • Turn • Tail • Clearance • Side marker • Side Reflector • Rear Reflector • License Plate Light (Left)

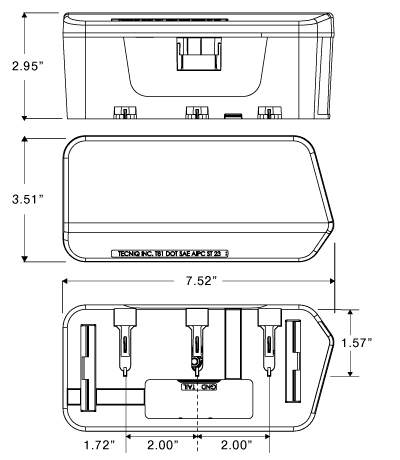

| Dimensions |
|
| LEDs | 9 (+2 white license plate light on left side) |
| Voltage | 9-14VDC |
| Current |
0.15A-0.21A - Left 0.03A-0.04A - Right + 0.09A-0.12A - Brake |
| Connectors | PL-3 |
| Mounting | Uses (2) ¼-20 carriage bolts |
| LED Colors | Red |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T81-RRLP-1 | 7.5IN Contour Box Tail Lt 8 Function 12IN PgTl |
 |
 |
|
||
| T81-RRLT-1 | Red 9LED White 2LED Red Lens 8 Function 7.5IN Contoured STT W/License and Tri-Pole Conn |
|
|
32 |
|
|
| T81-RRRP-1 | 7.5IN Contour Box Tail Lt 7 Function 12IN PgTl |
|
|
|
||
| T81-RRRT-1 | Red 9LED Red Lens RH 7 Function 7.5IN Contoured STT W/Tri-Pole Conn |
|
|
32 |
|
|
| T99-0020-1 | 12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree |
|
||||
| T99-0021-1 | Harness PL3 to 2 Pole Conn and Grnd Rng 12in |
|
