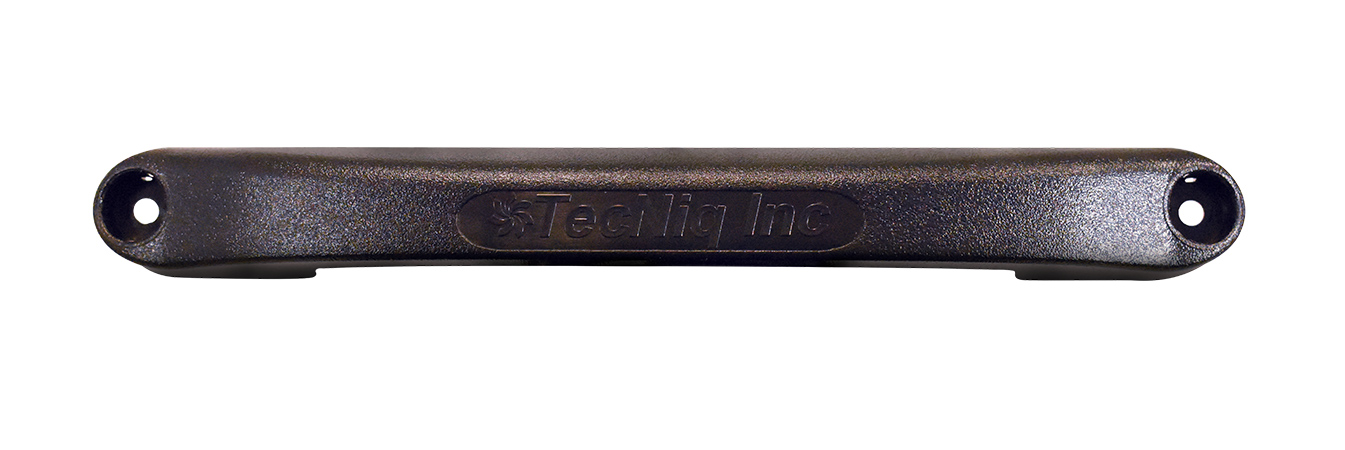

D17 Ancillary Accent Light
D17 Ancillary Accent Light
Technical Features
IP68 Rated for Superior Dust & Water Protection
- This accent light provides efficient options for boat decks, RV's, and additional applications, where style and function are desired
- Lamp features (6) high efficiency LEDs, providing 540 lumens of output
- Sleek and stylish surface mount design

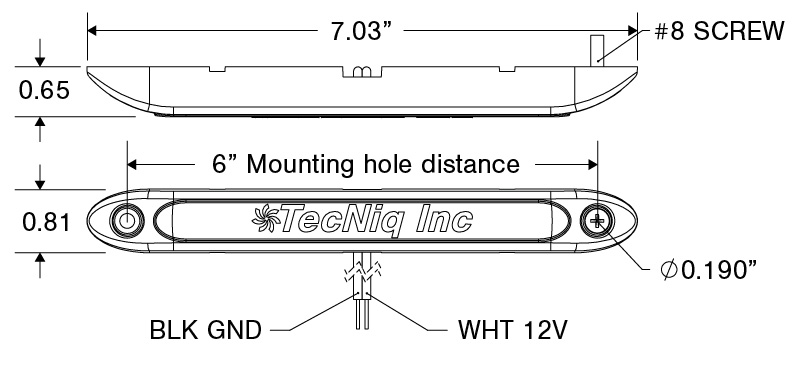

- NOW AVAILABLE with New Front Facing Light Projection (see D17-W0S0-1 model)
Introducing the D17 Porch/Deck Accent Lights. The ALL NEW D17 Accent Lights are built on the same foundation as all TecNiq Lights - superior engineering, sleek design, and an unwavering commitment to the highest quality product on the market. The D17's are the perfect option for boats, RV's, work trucks, trailers, delivery trucks, and more. Light up walk areas for safer movement, deliver visibility in dark areas, and provide long lasting performance.

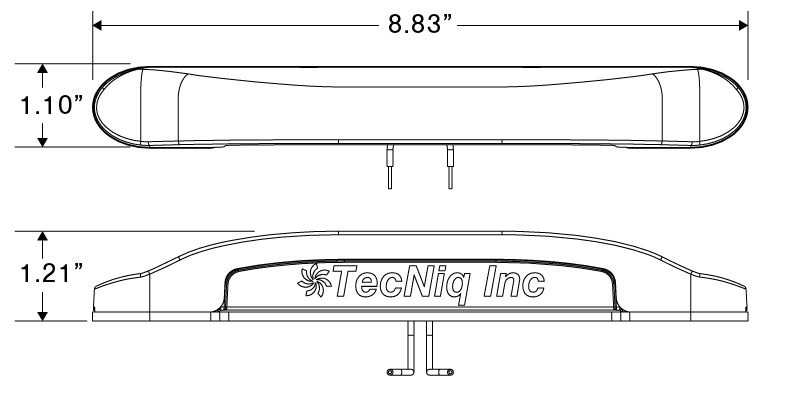

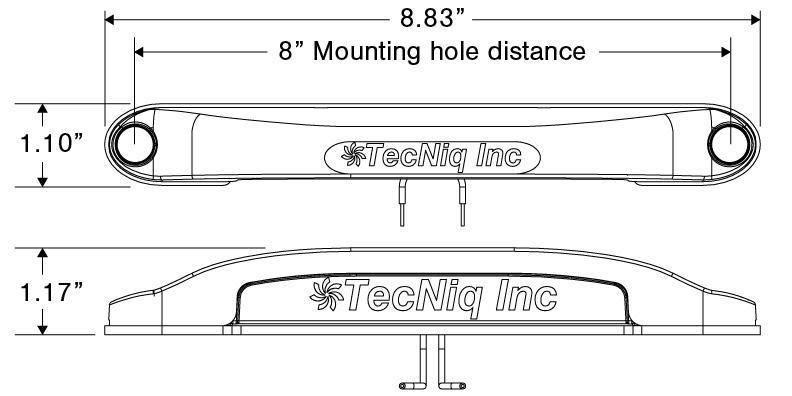

| Dimensions |
|
| LEDs | 6 |
| Lumens | 540 |
| Voltage | 9-14VDC |
| Current | 0.21A -0.29A |
| Connectors | 9" Unsheathed Pigtail |
| Mounting | Surface Mounted vertically |
| LED Colors | White |

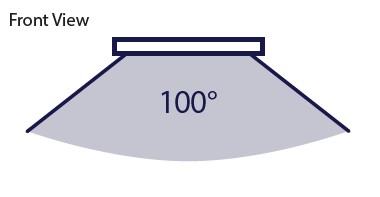

| Angle |
|
| Wire Colors |
Black -Ground White - Positive |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| D17-30S0-1 |
Surface Mount RGB Accent Light
|
 |
 |
30 | Pigtail (9") | |
| D17-A0S0-1 |
Surface Mount Amber Accent Light
|
 |
|
30 | Pigtail (9") | |
| D17-BB00-1 |
Porch/Accent Light Blue
|
 |
|
30 | Pigtail (9") | |
| D17-W0S0-1 |
Surface Mount White Accent Light
|
 |
|
30 | Pigtail (9") | |
| D17-WB00-1 |
Porch/Accent Light Black
|
|
|
30 | Pigtail (9") | |
| D17-WS00-1 |

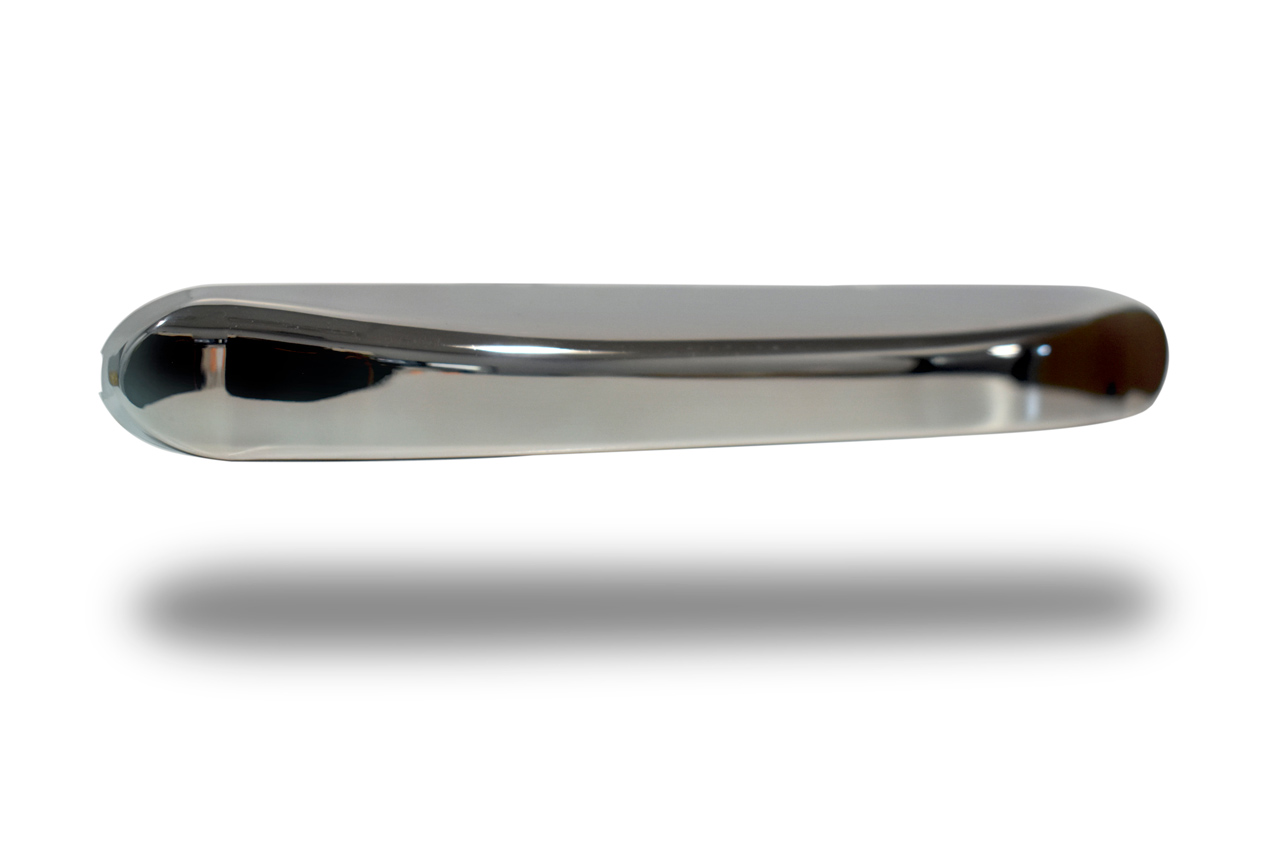

Porch/Accent Light with Stainless Cover
|
|
|
30 | Pigtail (9") | |
| D17-WW00-1 |

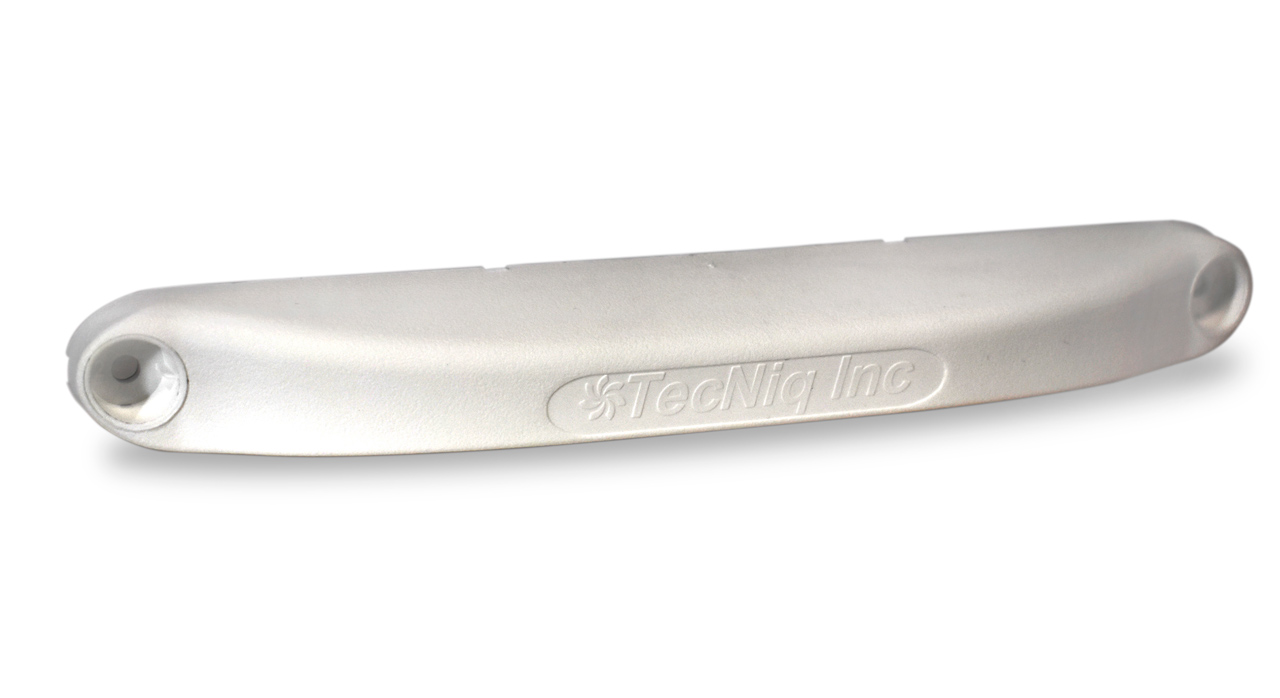

Porch/Accent Light White
|
|
|
30 | Pigtail (9") |
