L34 DOT rated LED License Lamp

Technical Features

  • IP68 Rated - Dust and water proof
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • Durable impact resistant lens

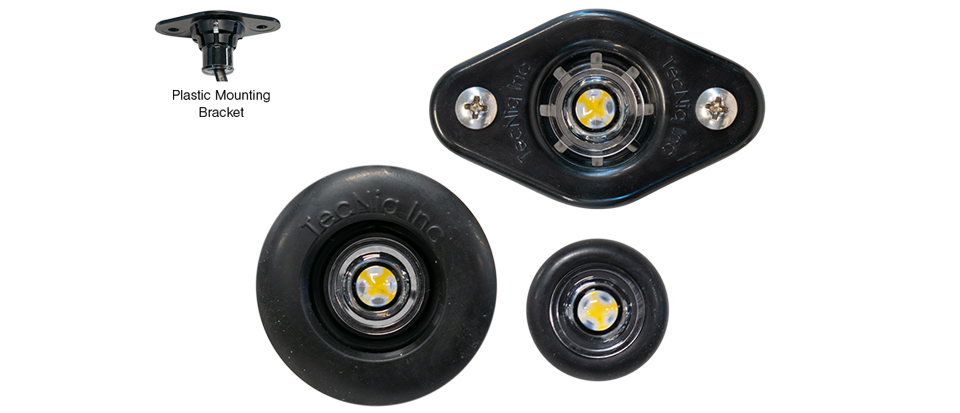

  • Easily mounts into standard 3/4" hole also available with large grommet style (1.19" mounting hole)
  • Life performance over 50,000 hours
  • WIRE COLORS
    White –
    Ground, Black – Positive

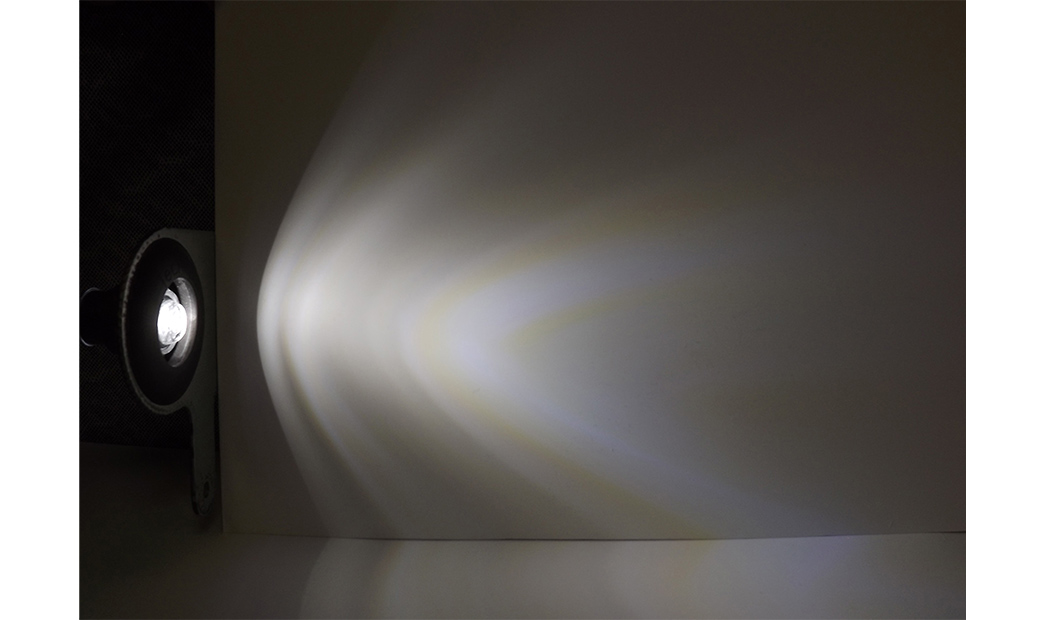

Compact, yet bright - the TecNiq L34, DOT rated License Lamp provides an IP68 rated for dust and water proof, durable imact resistant design. The L34 easily mounts into a standard 3/4" hole, and is also available with a large grommet or gracket style.

https://tecniqinc.com/img/product/diagrams/diagram_S33.jpg

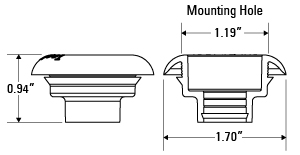

https://tecniqinc.com/img/product/diagrams/diagram_L34g.jpg
1
9-14VDC
0.07A-0.9A
9" wire w/ 0.180" bullet
Grommet Mounts in 3/4" hole
White Wire - Ground
Black Wire - 12VDC Power

Downloadable Resources

Name Description LED Lens STD Pack Connector
L10-WB00-1 Black Base License Lamp Vertical Plane Mount Neutral White Clear 10
L10-WB0F-1 Black Base License Lamp Vertical Plane Mount xTM06-2S Neutral White Clear
L10-WB0G-1 Black Base License Lamp Vertical Plane Mount with9" black wire, 2.5" white wire & #10 ground ring Neutral White Clear 10
L10-WB9B-1 Black Base License Lamp Vertical Plane Mount w/.180 Bullet Neutral White Clear 10
L10-WB9M-1 Black Base License Lamp Vertical Plane Mount W/.156 Bullet Neutral White Clear 10
L10-WC00-1 Chrome Base License Lamp Vertical Plane Mount Neutral White Clear 10
L10-WC0F-1 Chrome Base License Lamp Vertical Plane Mount w xT06-2S Connector Neutral White Clear 10
L10-WC10-1 DOT License Lt SM Vertical Plane Wht LED Chrome Back 13IN PgTl Neutral White Clear 10
L10-WC9B-1 Chrome Base License Lamp Vertical Plane Mount w/.180 Bullet Neutral White Clear 10
L11-WB00-1 Black Base License Lamp Vertical Plane Mount Neutral White Clear 10
L11-WB0F-1 Black Base License Lamp Vertical Plane Mount & 2 position Deutsch Connector Neutral White Clear 10
L11-WB0G-1 Black Base License Lamp Vertical Plane Mount W/ 9" wires & 1/4" Ground Ring Neutral White Clear 10
L11-WB1B-1 Black Base License Lamp Vertical Plane Mount 13" Wires w 180 Bullets Neutral White Clear 10
L11-WB9B-1 Black Base License Lamp Vertical Plane Mount w/.180" Bullets Neutral White Clear 10
L11-WB9N-1 Black Base License Lamp Vertical Plane Mount w/.156" Barrels Neutral White Clear 10
L11-WC00-1 Chrome Base License Lamp Vertical Plane Mount Neutral White Clear 10
L11-WC10-1 Chrome Base License Lamp Vertical Plane Mount 13IN PgTl Neutral White Clear
L11-WC2B-1 Chrome Base License Lamp Vertical Plane Mount 24in PgTl 180 Bullets Neutral White Clear
L11-WC9B-1 Chrome Base License Lamp V-Plane Mount w/.180" Bullets Neutral White Clear 10
L11-WC9M-1 Chrome Base License Lamp Vertical Plane Mount W/.156 Bullets Neutral White Clear 10
L11-WC9N-1 Chrome Base License Lamp V-Plane Mount w/.156" Barrels Neutral White Clear 10
L12-WB00-1 Black Base License Lamp Vertical Plane Mount Neutral White Clear 10
L12-WB5B-1 Black Base License Lamp Vertical Plane Mount w/.180" Bullets Neutral White Clear 10
L12-WB8B-1 Black Base License Lamp Vertical Plane Mount 18" Lead W/.180 Bullet Neutral White Clear 10
L12-WC00-1 Chrome Base License Lamp Vertical Plane Mount Neutral White Clear 10
L14-WB00-1 Black Base License Lamp Vertical Plane Mount Neutral White Clear 10
L14-WG00-1 Grey Base License Lamp Vertical Plane Mount Neutral White Clear 10
L17-WS00-1 4IN x 2IN License Plate Light Neutral White Clear
L31-WB00-1 License Plate Frame with Light Neutral White Clear 10
L31-WB0D-1 License Plate Frame with Light W/ DTM04-2P Connector Neutral White Clear 10
L31-WB0F-1 License Plate Frame with Light with Deutsch Connector Neutral White Clear 10
L31-WB10-1 License Plate Frame with Light, 15" Wire Neutral White Clear 10
L34-WB9B-1 License Lamp Black Bracket w/ .180 Bullets Neutral White Clear 10
L34-WC9B-1 License Lamp Large Grommet w/ .180 Bullets Neutral White Clear 10
L34-WC9LD-1 License Lamp Large Grommet Low Current w Delphi Weatherpack Neutral White Clear 10
L34-WG90-1 License Lamp Standard Grommet 12in Pigtails Neutral White Clear 10
L34-WG9A-1 License Lamp Standard Grommet w/ Amp Connector Neutral White Clear 10
L34-WG9B-1 License Lamp Standard Grommet w/ .180 Bullets Neutral White Clear 10
L90-0B00-1 License plate Full Back No Lamp Black 10
L90-0B00-K License plate frame no light with screw kit 10
L90-0G00-1 License plate frame grey no light 10
L90-0G00-K License plate frame grey no light with screw kit 10
L95-0B00-1 License Plate Bracket Black Tecniq 10
L95-1B00-1 Elevated License Plate Bracket Black 10
