M91 RGB+W Accent Light

Technical Features

  • M91 is IP68 rated for Dust & Water incursion
  • This new light performs at over 100,000 hours
  • Diffused lensing provides great, even color
  • The M91 connects with a 9" Unsheathed Pigtail
  • Provides professional grade accent lighting for boats, RV's, trailers and more

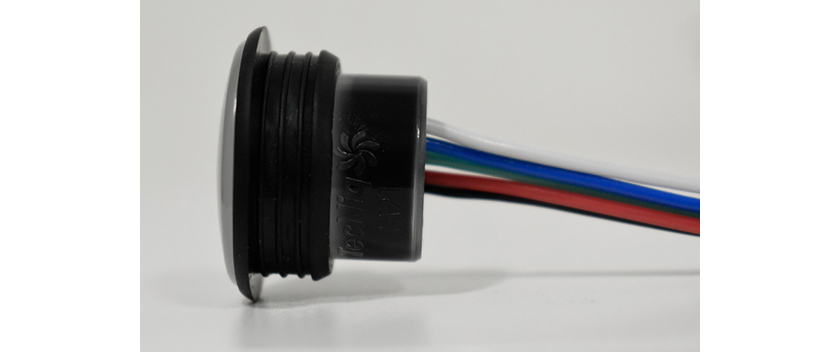

The ALL NEW M91 RGB+W Accent Light is the perfect light for boats, RV’s and more. The M91 provides subtle, diffused lighting that looks great, and will last a lifetime. This grommet mounted light is IP68 rated to withstand dust and water incursion. The M91 comes with a 9” unsheathed pigtail, and is often utilized for steps, inside storage areas, and all around commercial vehicles and boats.

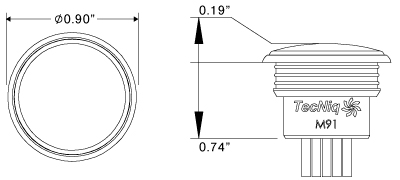

https://tecniqinc.com/img/product/diagrams/diagram_M91.jpg
3 RGBW
66 (White)
9-14VDC
Red - 0.02A
Green - 0.02A
Blue - 0.02A
White - 0.02A
9" Pigtail
Grommet Mounted
RGB+W
Black Wire - 12VDC Power
Red Wire - Ground (Red)
Green Wire - Ground (Green)
Blue Wire - Ground (Blue)

Downloadable Resources

Name Description LED Lens STD Pack Connector
M91-4F00-1 1" Round RGBW LED Diffused Accent Light RGB Clear
M91-4FT0-1 1IN Round Accent Lt RGBW LED Diff Threaded RGB Clear
M91-4FTF-1 1IN Round Accent Lt RGBW LED Diff Threaded DT04-4P and AT04-2P RGB Clear
M91-RF0B-1 Accent Lt 1IN Rnd Red PCB Assembly 180 Bul Red Clear
