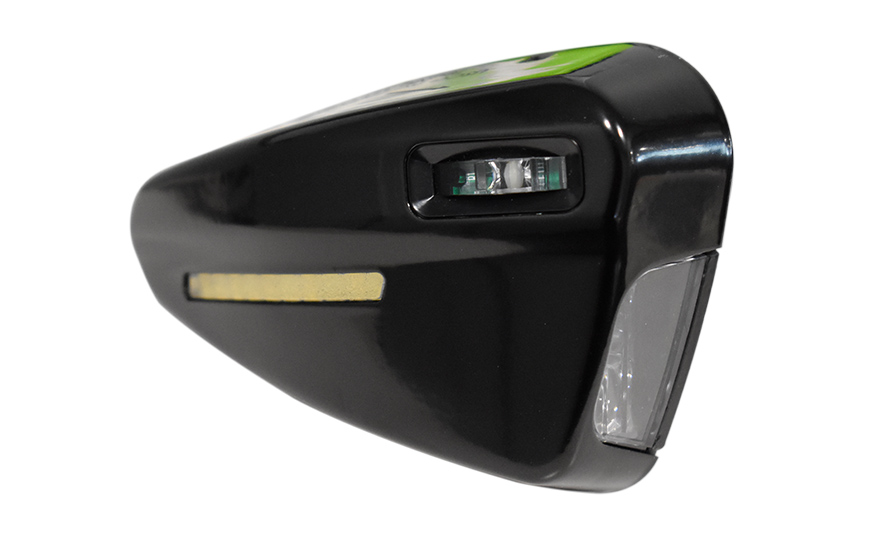

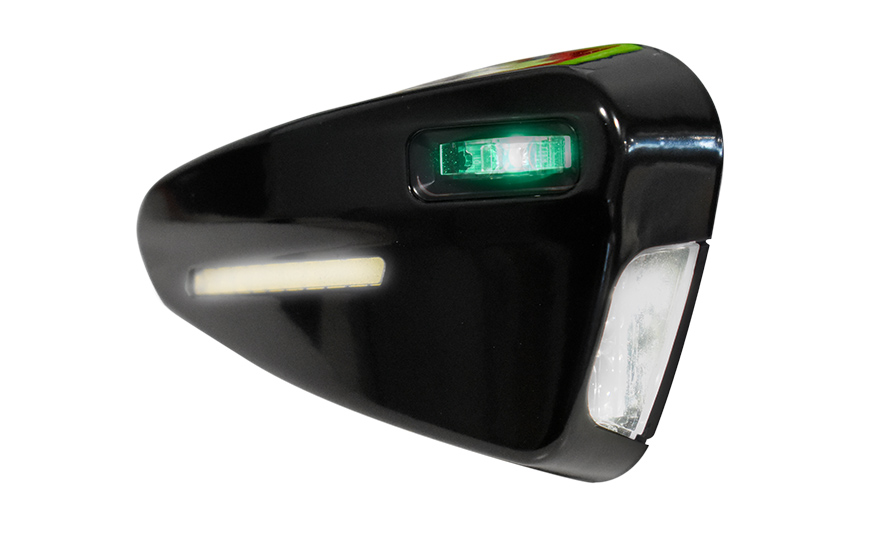

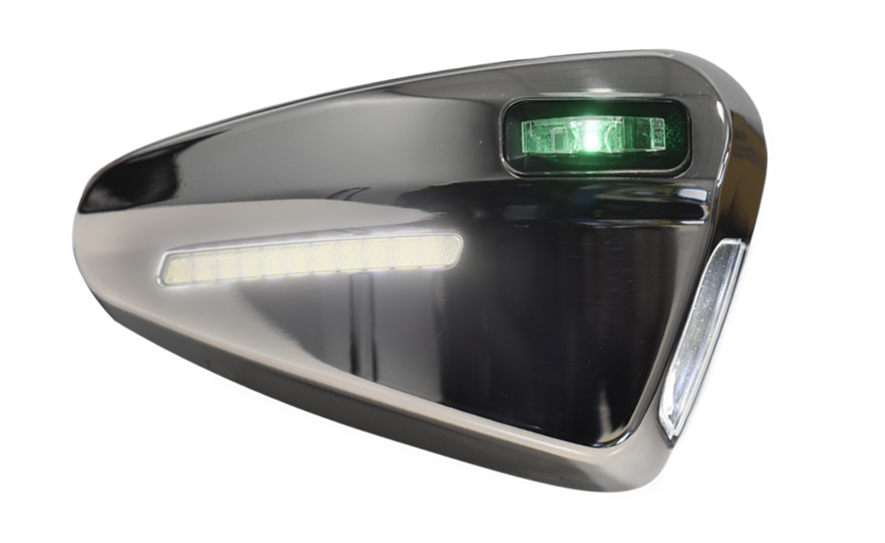

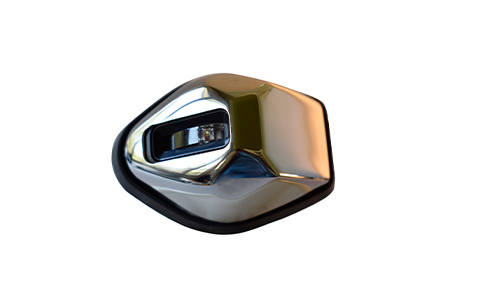

M511 Navigation/Docking/Courtesy Lights

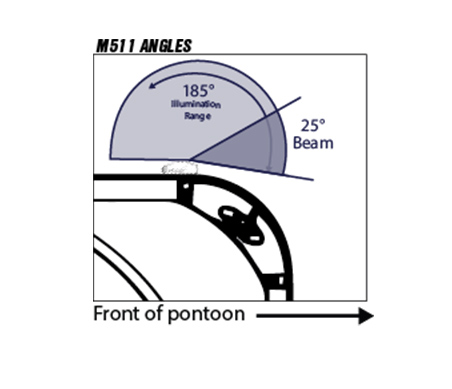

Mounts Parallel to Centerline of Boat





M511 Navigation/Docking/Courtesy Lights
Mounts Parallel to Centerline of Boat
Technical Features
- C5 Certified - Highly resistant to corrosion from salt and other elements
- Stainless steel body for protection against salt & fresh water conditions
- Thermal overheat protection for longer lasting lifespan
- Surface mount design is a snap to install, no large holes to seal
- TecSeal Potting for guaranteed circuit board protection
- (12) LED Waveguide Courtesy light
- (1) LED Dedicated Navigation light
- (3) LED High powered Docking light
- WIRE COLORS
Black – Ground, White – Docking, Yellow – Navigation
TecNiqs BRAND NEW M510 3-in1 Navigation/Docking/Courtesy lights are ready to hit the market. Designed to give boaters an all-in-one solution for safety and coastal boating regulations. The M510 is a surface mounted light that provides 1750 lumens at the docking light position, while also providing a 100,000 hour lifespan. The M510 also provides a navigation light that is visible up to 2NM, meeting all NMMA and Coast Guard specs.

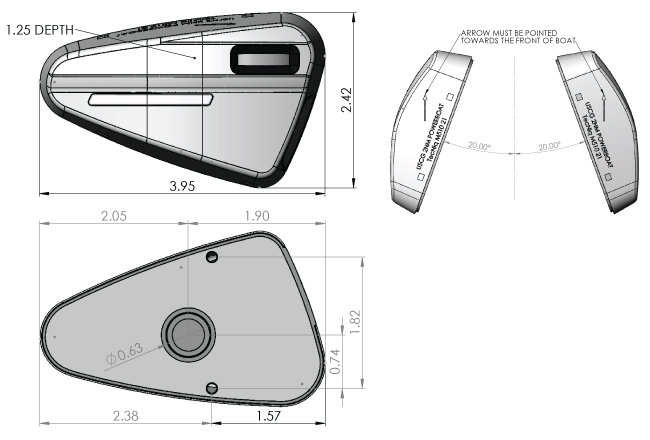

Dimensions |
![]() ![]() |
LEDs | 15 |
Lumens | 1750 |
Voltage | 9-14VDC |
Current | 1.0A per light |
Connectors | 11" Sheathed Pigtail |
Mounting | Surface mount using (2) #8 screws |
LED Colors | Green/White • Red/White |
Wire Colors |
Black Wire - Ground White Wire - Docking LEDs Yellow Wire - Navigation LED |
Ground | Black |
Name | Description | LED | Lens | STD Pack | Connector | |
---|---|---|---|---|---|---|
M511-0S03-1 | M511 Stainless Cover Starboard | 10 |
{ added = false }, 333);
">
|
|||
M511-0S08-1 | M511 Stainless Cover Port | 10 |
{ added = false }, 333);
">
|
|||
M511-WBPM-1 | Docking/Nav Lt Wht LED Blk Cover Port .156 Bullets 30IN PgTl |
![]() |
![]() |
{ added = false }, 333);
">
|
||
M511-WBSM-1 | Docking/Nav Lt Wht LED Blk Cover StBd .156 Bullets 30IN PgTl |
![]() |
![]() |
{ added = false }, 333);
">
|
||
M511-WS2PF-1 | Docking Nav Lt White LED SS Evolution Cover Port 2X xT04-2P 30IN PgTl |
![]() |
![]() |
{ added = false }, 333);
">
|
||
M511-WS2SF-1 | Docking/Nav Lt Wht LED Blk Cover StBd 2X xT04-2P 30IN PgTl |
![]() |
![]() |
{ added = false }, 333);
">
|
||
M511-WSP0-1 | Docking/Nav Light White LED SS Cover Port Side w/ 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSP4P-1 | Docking/Nav Light White LED SS Cover Port Side w/ xT04-4P 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSPD-1 | Docking/Nav Light White LED SS Cover Port Side w/ xT04-6P 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSPF-1 | Docking/Nav Light White LED SS Cover Port Side w/ xT06-3S 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSPM-1 | Docking/Nav Light White LED SS Cover Port Side w/ .156 Bullets 30" Wire |
![]() |
![]() |
{ added = false }, 333);
">
|
||
M511-WSS0-1 | Docking/Nav Light White LED SS Cover Starboard Side w/ 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSS4P-1 | Docking/Nav Light White LED SS Cover Starboard Side w/ xT04-4P 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSSD-1 | Docking/Nav Light White LED SS Cover Starboard Side w/ xT04-6P 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSSF-1 | Docking/Nav Light White LED SS Cover Starboard Side w/ xT06-3S 30" Wire |
![]() |
![]() |
10 |
{ added = false }, 333);
">
|
|
M511-WSSM-1 | Docking/Nav Light White LED SS Cover Starboard Side w/ .156 Bullets 30" Wire |
![]() |
![]() |
{ added = false }, 333);
">
|
