E20 Orion Surface Mount Dome Light - 6"

Technical Features

  • Ultra thin surface mount light
  • Easy installation with two screws hidden under lens
  • High performance - 750 Lumens
  • Moisture resistant

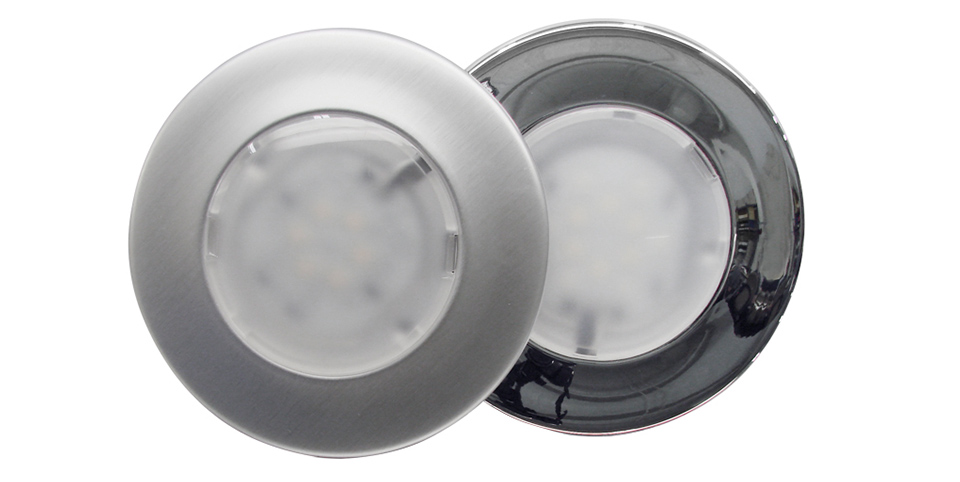

  • Available in bright or satin finished light body

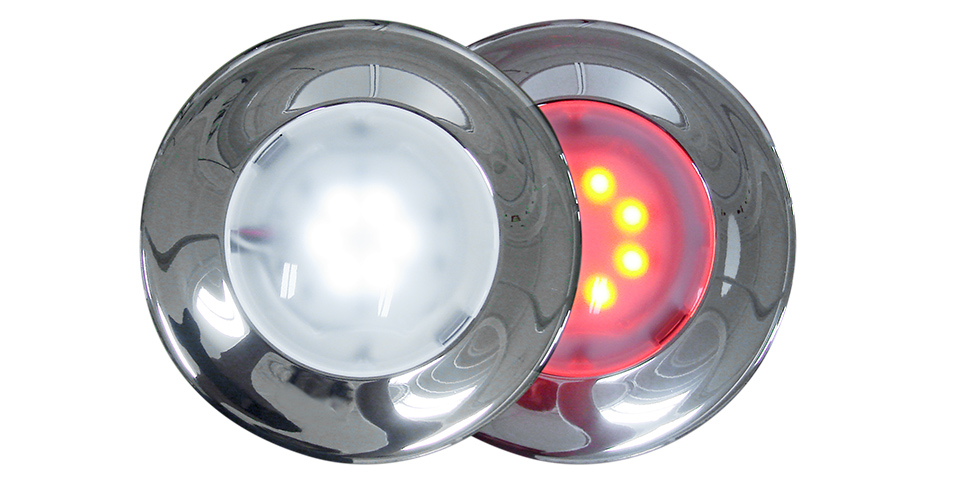

  • Night Vision - red/white LED combination also available

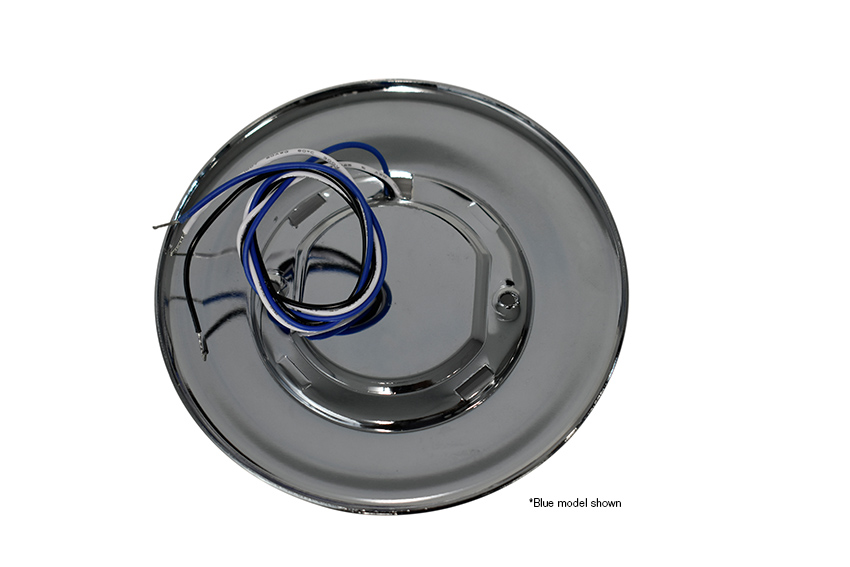

  • WIRE COLORS
    Black –
    Ground, White – Positive, Red (red/white model) – Red LEDs

TecNiq's E20 lamp provides impressive brightness and unsurpassed value. In addition to our other unique design technologies, this lamp incorporates a fully-potted circuit board to prevent corrosion in saltwater or extreme environments. Perfect for trucks, trailers, boats, RV's, homes, livestock trailers, or anywhere functional and powerful area lighting is needed.

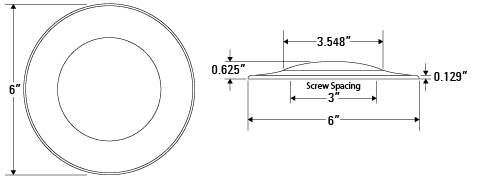

https://tecniqinc.com/img/product/diagrams/diagram_E20.jpg
9 + 8 red/blue (color option models)
750
9-14VDC
0.48A-0.59A - white
+0.32A-0.44A - red (optional)
+0.55A-0.74A - blue (optional)
9"
Mounts using (2) #8 or #10 flat-head screws hidden by the lens
White • White/Red • White/Blue
https://tecniqinc.com/img/product/diagrams/angle_generic180.jpg
Black - Ground
White - Positive
Red (red/white model) - Red LEDs
Black

Downloadable Resources

Name Description LED Lens STD Pack Connector
E20-LA00-1 6" Interior Light Neutral White Aluminum Trim Ring Neutral White Clear 5
E20-LA03-1 Orion Int. Lt. Tri-Level Intensity Neutral White Aluminum Trim Ring Neutral White Clear 5
E20-LA0R-1 6" interior Light Neutral White/Red Aluminum Trim Ring Neutral White Clear 5
E20-LC00-1 6" Interior Light Neutral White Chrome Trim Ring Neutral White Clear 5
E20-LC0R-1 6" interior Light Neutral White/Red Combo Chrome Trim Ring Neutral White Clear 5
E20-MA00-1 6" Interior Light Warm White Aluminum Trim Ring Warm White Clear 5
E20-MA03-1 Orion Int. Lt. Tri-Level Intensity Warm White Aluminum Trim Ring Warm White Clear 5
E20-MA0R-1 6" interior Light Warm White/Red Combo Aluminum Trim Ring Warm White Clear 5
E20-MC00-1 6" Interior Light Warm White Chrome Trim Ring Warm White Clear 5
E20-WC00-1 6" Interior Light White Chrome Trim Ring Cool White Clear 5
E20-WC0R-1 6" Interior Light White/Red Combo Chrome Trim Ring Cool White Clear 5
E20-WCB0-1 6" Interior Light White/Blue Combo Chrome Trim Ring Cool White/Blue Clear 5
