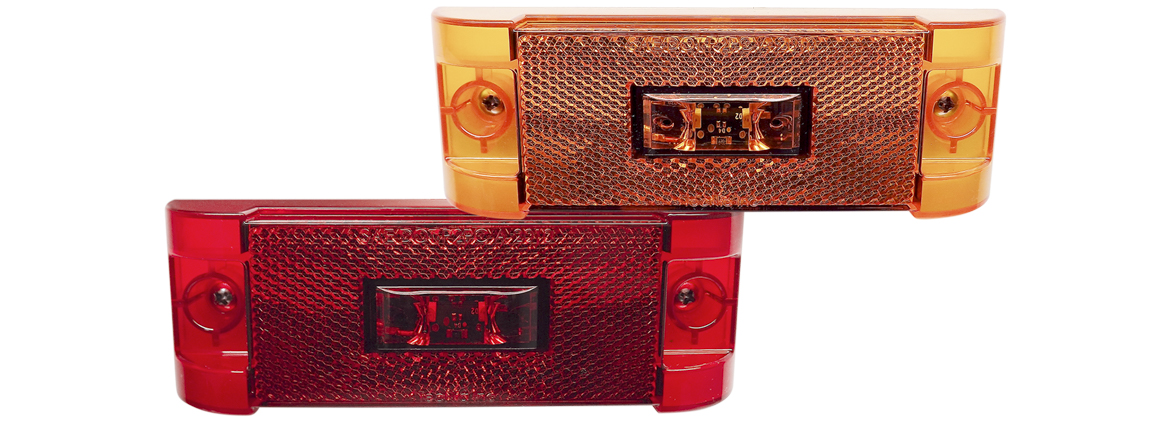

S22 PC Rated Side Marker
S22 PC Rated Side Marker
Technical Features
- Integrated retro-reflector, eliminating the need for additional reflectors
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 requirements
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Brown – Low, Yellow – High
The TecNiq S22's unique design, for this industry-standard marker lamp, results in improved price and reliability. The worldleading efficiency of our optics, combined with superior LED technology provides incredible performance and value.

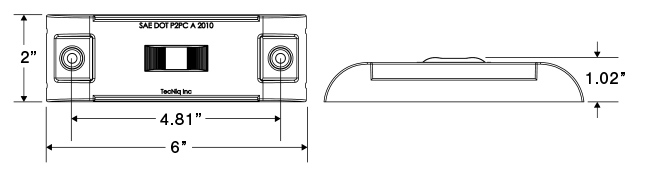

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current | 0.04A-0.07A - Red/Amber |

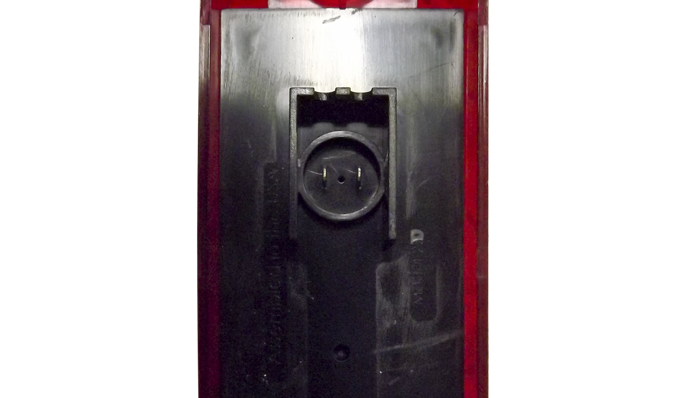

| Connectors |
S99 2-Pole Connector
|
| Mounting | Surface-mounted with 3" hole spacing (Must be mounted horizontally to meet spec) |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
Standard Model (S99 Connector) Black Wire - 12VDC Power Dual Intensity Model (Pigtail) White Wire - Ground Brown Wire - Low Intensity Yellow Wire - High Intensity |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S22-AA00-1 | Amber 2" x 6" PC Sidemarker with reflector |
 |
 |
100 |
|
|
| S22-AADT-1 | Amber 2" x 6" Dual Intensity PC Sidemarker with reflector |
|
|
100 |
|
|
| S22-RR00-1 | Red 2" x 6" PC Sidemarker with reflector |
 |
 |
100 |
|
|
| S99-0035-1 | S35 2-Pole Sure-Seal w/.180" Bullet and #6 GND Lug 90 deg. |
|
||||
| S99-0A35-1 | S35 2-Pole Sure-Seal w/.180" Bullet and 1" #10 GND Lug |
|
||||
| S99-3600-1 | 2 Pole Connector W/Bullet Ends |
|
||||
| S99-3610-1 | 2 Pole Connector W/Bullet Ends and Grommet |
|
||||
| S99-3714-1 | 2 Pole Connector w 180 Bullet/Barrel and 14mm Grommet 12 inch |
|
