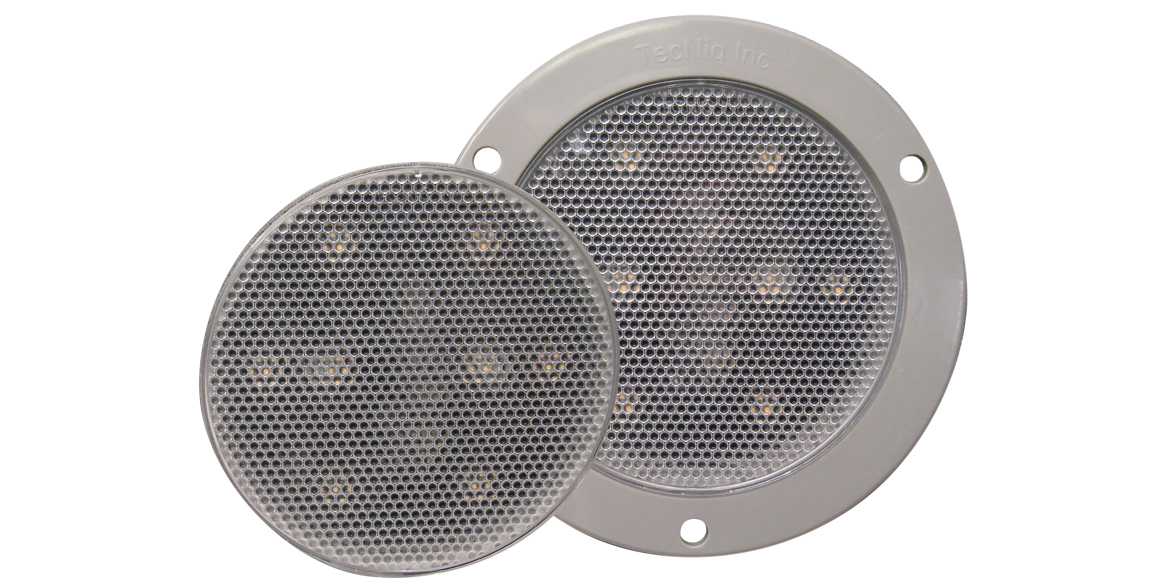

T44 4" Round High Output Area Light

T44 image

Technical Features

  • High output area light - 480 lumens
  • Low amp draw - 0.25A at 12VDC
  • Guaranteed waterproof, sealed body that is immune to shock and vibration
  • Reliable performance over 50,000 hours
  • Produces 480 lumens
  • Standard grommet or flange mount models
  • WIRE COLORS
    White –     Ground, Black – Positive

Engineered for high output and low draw the T44 dome light produces 480 lumens and is available in grommet or flange mount. Having undergone strenuous testing conditions, TecNiq guarantees this product immune to shock, vibration and water. This durability allows our customers to use the T44 for interior or exterior applications with confidence.

Related Products

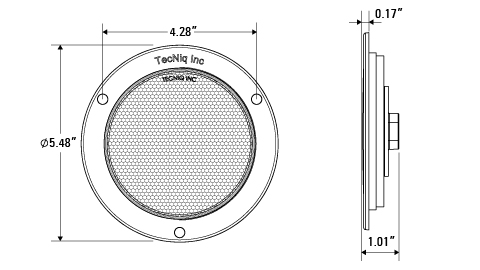

Dimensions
image image
https://tecniqinc.com/img/product/diagrams/diagram_T44f.jpg
LEDs 8
Voltage 9-14VDC
Current 0.35A-0.48A
Connectors 6" pigtail w/ 0.180" Bullet
Mounting Grommet mount or<br>Flange mount using (3) screws
LED Colors White
Angle
https://tecniqinc.com/img/product/diagrams/angle_generic180.jpg
Wire Colors White Wire - Ground
Black Wire - Reverse
Ground White

Downloadable Resources

T44 Specsheet
T44 Sales Sheet
Name Description LED Lens STD Pack Connector
T40-0G00-1 4" Round Grommet 100
T40-0G20-1 4" Round Grommet High Grip 100
T40-0GG0-1 T40 Adhesive Flange Gasket 100
T40-0S00-1 4" Round Trim Ring SS 100
T44-WD0B-1 4" Round Dome Light 0.180 bullets Neutral White Clear 100
T44-WD0F-1 4" Rnd Area Lt Wht GM Diff Lns Deutsch Neutral White Clear 100
T44-WDFB-1 4" Round Dome Light Flange Mount w/ 0.180 bullets Neutral White Clear 100
T44-WDFBS-1 4" Round Dome Light Flange Mount w 0.180" bullet/barrel Neutral White Clear 100
T44-WDFF-1 4" Rnd Area Lt Wht FM Diff Lns Deutsch Neutral White Clear 100
