E03 Linear Eon Lights

Technical Features

  • Completely sealed IP68 rated design
  • 316 stainless steel cover
  • Cover also available in black and white powder coat
  • Life performance: 50,000 hours
  • Produces 150 lumens (white)
  • Available in color changing RGB option (compatible with select RGB controllers)
  • WIRE COLORS
    Black –
    Ground, Colored (LED Color) – Positive

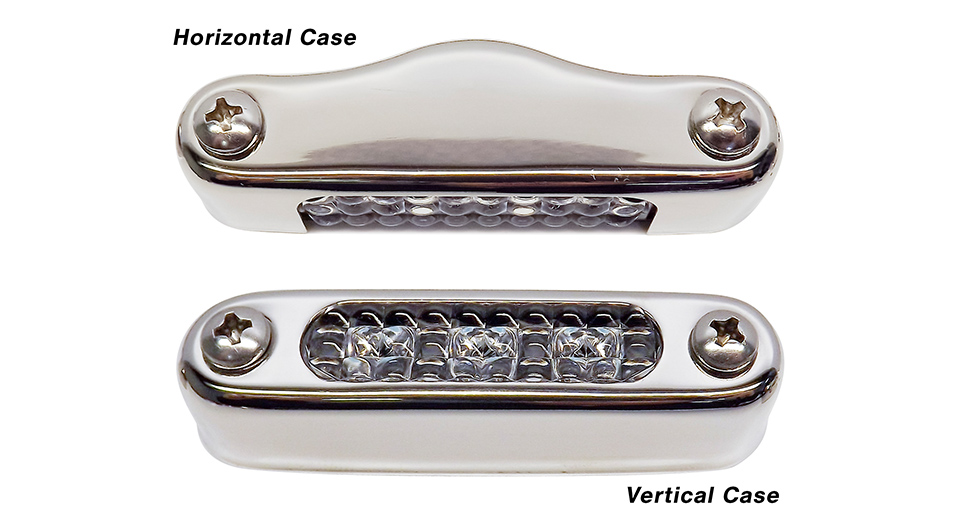

The Eon series is bigger and brighter than the Dragon light, using next generation LEDs and our high efficiency lenses. They are rugged enough to use outdoors and elegant enough to use indoors. Choose from several LED colors and exterior finishes. Don't be fooled by the number of LEDs, each of these powerful devices produces as much as 20 times the output of older style LED lights. Like our dragon light series, the lens bodies are constructed with high-impact automotive-grade polycarbonate and are fully sealed with our proprietary urethane. Combined with our 100,000 hour (color), 50,000 Hour (white) life and high-polish stainless steel cases, these lights are perfect for use in harsh environments, yet aesthetically pleasing enough for indoor applications. Eon series light bodies can be mounted in two case styles (as shown) to direct the light parallel or perpendicular to the mounting surface.

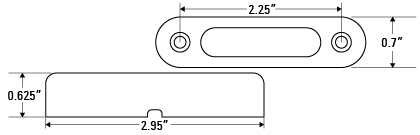

https://tecniqinc.com/img/product/diagrams/diagram_E03v.jpg

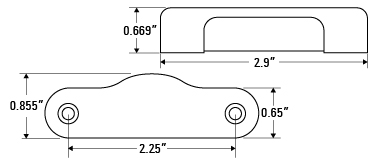

https://tecniqinc.com/img/product/diagrams/diagram_E03h.jpg
3
150
9-14VDC
0.08A-0.12A - white/red/deep red
0.09A-0.13A - blue/green
0.11A-0.15A - amber
9" or 36"
Mounts using (2) #6 screws

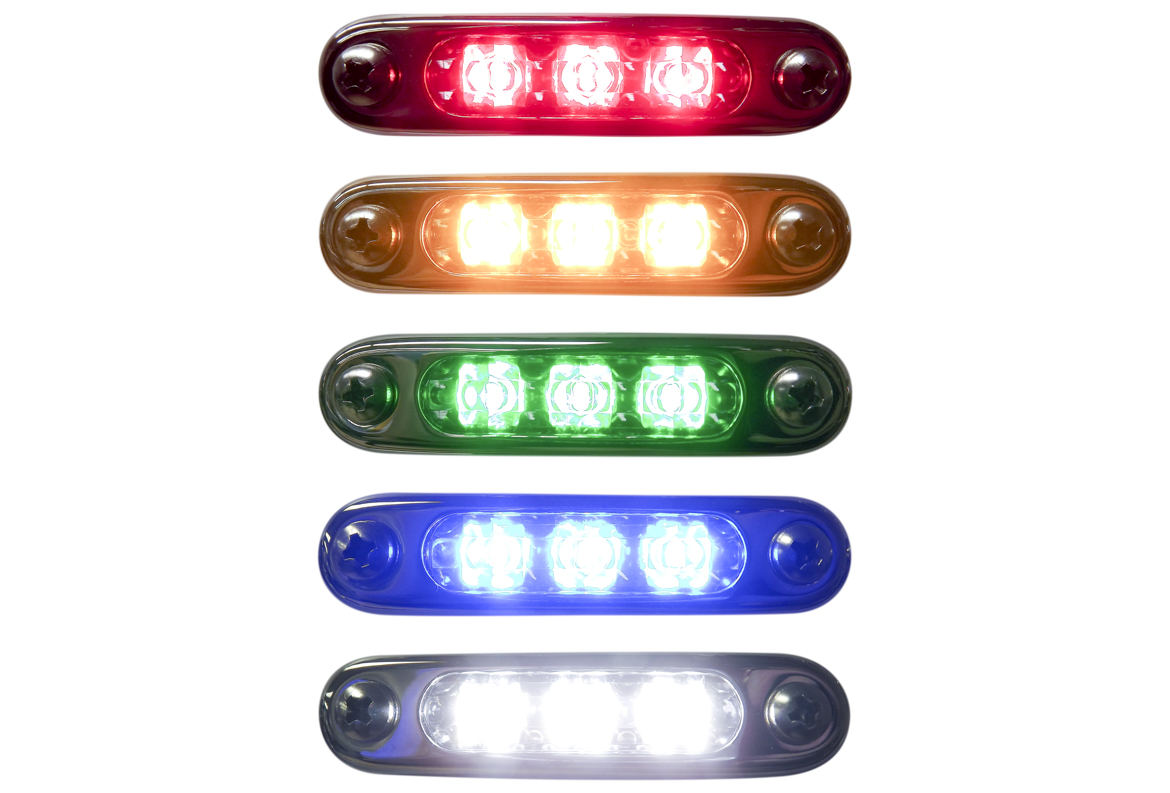

White • Amber • Blue • Deep Red • Green • Orange • Color-changing RGB

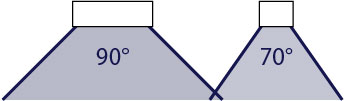

https://tecniqinc.com/img/product/diagrams/angle_E03.jpg
Black - Ground
Colored (LED Color) - Positive
Black

Downloadable Resources

Name Description LED Lens STD Pack Connector
E03-000G-1 Eon Light Linear Vertical Case Gasket 50
E03-00HG-1 Eon Light Linear Horizontal Case Gasket 50
E03-0BH0-1 Eon Light Linear Horizontal Case Black 50
E03-0BV0-1 Eon Light Linear Vertical Case Black 50
E03-0SH0-1 Eon Light Linear Horizontal Case SS 50
E03-0SV0-1 Eon Light Linear Vertical Case SS 50
E03-A001-1 Eon Light Linear Body Amber 36 in Amber Clear 50
E03-A003-1 Eon Light Linear Body Amber Dual Intensity 9 in Amber Clear 50
E03-B001-1 Eon Light Linear Body Blue 36 in Blue Clear 50
E03-D001-1 Eon Light Linear Body Deep Red 36 in Deep Red Clear 50
E03-D003-1 Eon Light Linear Body Deep Red Dual Intensity 9 in Deep Red Clear 50
E03-G001-1 Eon Light Linear Body Green 36 in Green Clear 50
E03-L000-1 Eon Light Linear Body Neutral White Neutral White Clear 50
E03-M000-1 Eon Light Linear Body Warm White Warm White Clear 50
E03-N001-1 Eon Light Linear Body Orange 36 in Orange Clear 50
E03-RGB1-1 EON Light RGB 82" Wire RGB Clear 50
E03-W000-1 Eon Light Linear Body White Cool White Clear 50
E03-W001-1 Eon Light Linear Body White 36 in Cool White Clear 50
E03-W00F-1 Eon Light Linear Body White Flood Lens Cool White Clear 50
