T23 Tank Level Light

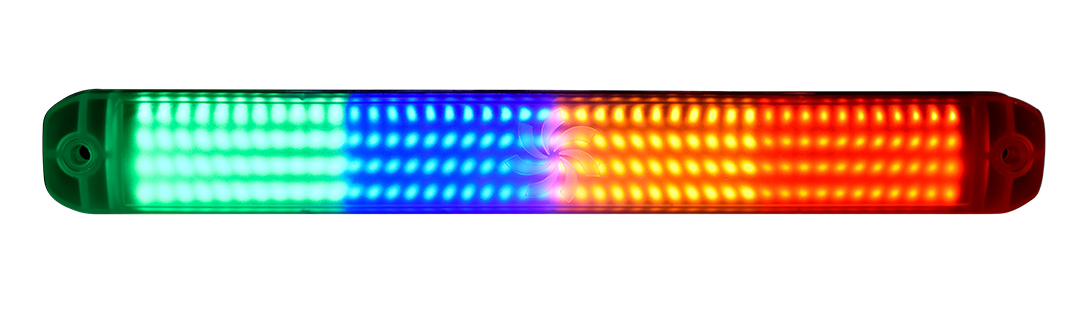

T23 image

Technical Features

  • Sealed, IP68 Rated, full size tank level light
  • Provides (4) sections of LEDs for identification
  • Designed to be surface mounted with a 9” unsheathed pigtail
  • Comes with TPE gasket for protection of vehicle surface
  • WIRE COLORS
    Black –
    Ground, Red – Red, Green – Green, Blue – Blue, Yellow – Yellow

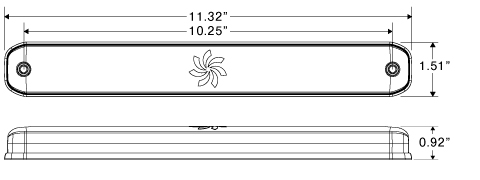

https://tecniqinc.com/img/product/diagrams/diagram_T23.jpg
176
12VDC
0.330A - Green
0.195A - Blue
0.255A - Yellow
0.255A - Red
9" Pigtail or Deutsch
Surface mounts with (2) screws
Red • Green • Blue • Yellow
Black Wire - Ground
Red Wire - Red
Green Wire - Green
Blue Wire - Blue
Yellow Wire - Yellow
Black

Downloadable Resources

Name Description LED Lens STD Pack Connector
T23-4F10-1 4-Color Indicator Light 12/24v w/ Pigtails RGB Clear
T23-4F1F-1 4-Color Indicator Light 12/24v w/ xTM06-6S RGB Clear
