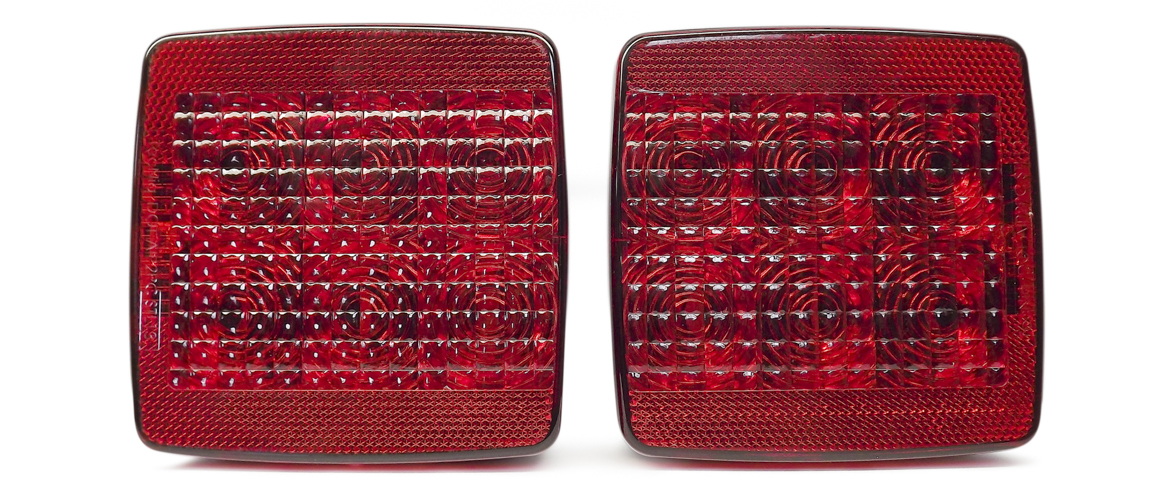

T85 4" Eight Function Box Tail Light
T85 4" Eight Function Box Tail Light
Technical Features
- Multi-Function 4" box tail light
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Meets all FMVSS 108 requirements for narrow and wide vehicles
- Reliable performance over 100,000 hours
- Fits standard mounting as a direct replacement
- Functions include : Stop • Turn • Tail • Clearance • Side marker • Side Reflector • Rear Reflector • License Plate Light (Left)
- WIRE COLORS
White – Ground, Brown – Low/License Plate (left), Green (right) – High, Yellow (left) – High
The T85 is able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. With a sonic-welded case and potted electronics, this light will survive the harshest environment. Unlike the competition, this lamp is actually submersible!
Although every manufacturer claims that their box light is waterproof, leakage is still the main complaint. We solved this problem by designing the light engine to be less than 0.6" thick. This allows us to guarantee a perfect, waterproof seal every time. And despite the T85's unique design, it still fits in the industry-standard spacing, and uses standard hardware. If you ever manage to break the lens and the light fills with water, rest assured that the potted circuitry guarantees it will still continue to work for years!

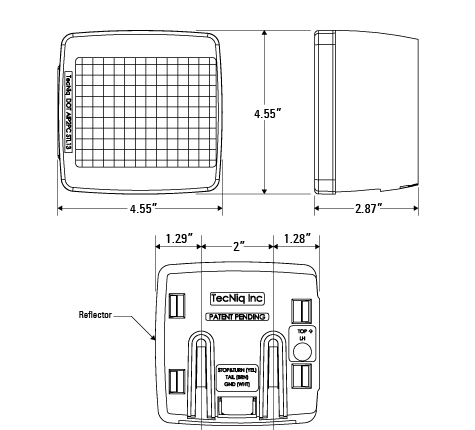

| Dimensions |
|
| LEDs | 7 (+1 white license plate light on left side) |
| Voltage | 9-14VDC |
| Current |
0.15A-0.19A - Left 0.05A-0.09A - Right + 0.9A-0.15A - Brake |
| Connectors |
9" pigtail 9" Pigtail w/ ground ring |
| Mounting | Uses (2) ¼-20 carriage bolts |
| LED Colors | Red |
| Wire Colors |
White Wire - Ground Brown Wire - Low Intensity Green Wire - Right Stop/Turn Yellow Wire - Left Stop/Turn |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T85-RRLB-1 |
8 Function 4" Box Tail Light Left Side Pig Tail W/.180 Bullets
|
 |
 |
32 | Pigtail w/ 0.180" Bullets | |
| T85-RRLG-1 |
8 Function 4" Box Tail Light Left Pig Tail 1/4" GND Ring
|
|
|
32 | Pigtail / Self grounded | |
| T85-RRLP-1 |
8 Function 4" Box Tail Light Left Side Pig Tail
|
|
|
32 | Pigtail | |
| T85-RRRB-1 |
7 Function 4" Box Tail Light Right Side Pig Tail W/.180 Bullets
|
|
|
32 | Pigtail w/ 0.180" Bullets | |
| T85-RRRG-1 |
7 Function 4" Box Tail Light Right Pig Tail 1/4" GND Ring
|
|
|
32 | Pigtail / Self grounded | |
| T85-RRRP-1 |
7 Function 4" Box Tail Light Right Side Pig Tail
|
|
|
32 | Pigtail |
