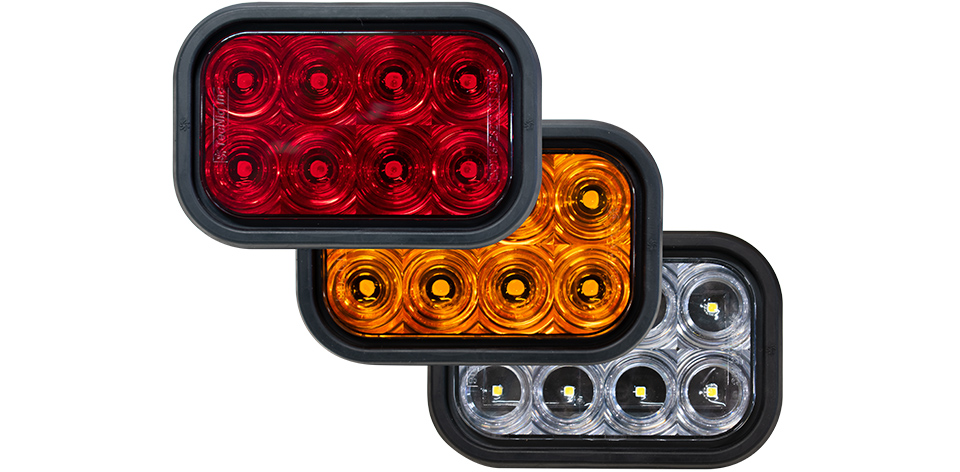

T71 4" Rectangular LED High Visibility STT
T71 4" Rectangular LED High Visibility STT
Technical Features
- Smooth surface, great looking Stop/Tail/Turn Light
- Durable impact resistant lens
- Can be mounted horizontal, vertical, or at any angle
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Meets all FMVSS 108 standards for wide and narrow vehicles
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Red/Amber – High, Black – Low/Dim
With 8 diodes, TecNiq's T71 brightness is hard to miss. This grommet mount light can be installed at any angle and still meet DOT compliance. In addition, we offer a variety of connector styles and clear lens options on request.
| Dimensions |
|
| LEDs | 8 |
| Voltage | 9-14VDC |
| Current |
0.11A-0.13A - Red (brake) 0.14A-0.18A - Amber 0.24A-0.30A - White |
| Connectors |
Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Red • Amber • White |
| Angle |
|
| Wire Colors |
White Wire - Ground Yellow Wire - Reverse Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T71-0G00-1 |
T71 Grommet
|
- | ||||
| T71-AA0P-1 |
4" Rectangular Amber Lens Amber LED W/Pigtail & Grommet
|
 |
 |
24 | Pigtail | |
| T71-AA0T-1 |
4" Rectangular Amber Lens Amber LED Tripole Connector& Grommet
|
|
|
24 | Tri Pole | |
| T71-AAZP-1 |
4" Rectangular Class 1 Amber AutoSync Flasher w/Pigtails
|
|
|
24 | Pigtail | |
| T71-AC0P-1 |
4" Rectangular Clear Lens Amber LED W/Pigtails & Grommet
|
|
 |
24 | Tri Pole | |
| T71-AC0T-1 |
Rectangular 8 LED Turn Dual Intensity Grommet Mount Clear Lens T style
|
|
|
24 | Tri Pole | |
| T71-RC0A-1 |
4" Rectangular Clear Lens Red LED Amp Conn. & Gromet
|
 |
|
24 | Amp | |
| T71-RC0P-1 |
4" Rectangular Clear Lens Red LED W/Pigtails & Grommet
|
|
|
24 | Pigtail | |
| T71-RC0T-1 |
4" Rectangular Clear Lens Red LED Tripole Connector& Grommet
|
|
|
24 | Tri Pole | |
| T71-RR0A-1 |
4" Rectangular Red Lens Red LED AMP Connector & Grommet
|
|
 |
24 | Amp | |
| T71-RR0P-1 |
4" Rectangular Red Lens Red LED W/Pigtails & Grommet
|
|
|
24 | Pigtail | |
| T71-RR0T-1 |
4" Rectangular Red Lens Red LED Tripole Connector& Grommet
|
|
|
24 | Tri Pole | |
| T71-WCRA-1 |
Rectangular 8 LED Reverse White Grommet Mount Clear Lens Amp Connector
|
 |
|
24 | Amp | |
| T71-WCRP-1 |
4" Rectangular Clear Lens White LED Pigtail
|
|
|
24 | Pigtail | |
| T71-WCRT-1 |
4" Rectangular Clear Lens White LED Tripole Connector & Grommet
|
|
|
24 | Tri Pole |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
