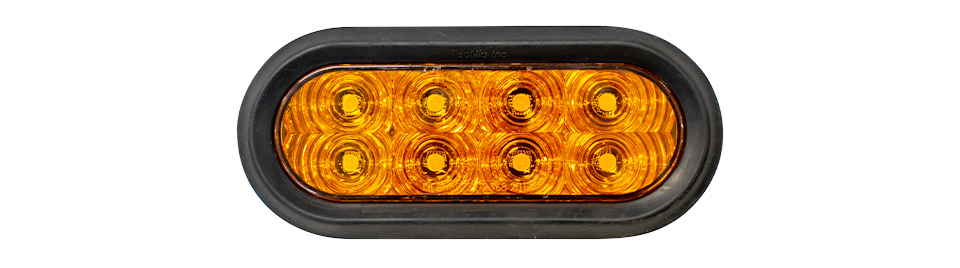

T68 Strobe 6" LED High Visibility Strobe
T68 Strobe 6" LED High Visibility Strobe
Technical Features
- Class 1 & Class 2 certified
- Durable impact resistant lens
- Fits all industry standard 6" oval applications
- Grommet Mount
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Meets all FMVSS 108 standards for wide and narrow vehicles
- Reliable performance over 100,000 hours
- Lifetime Warranty
- WIRE COLORS
Black – Ground, White – Positive
Our T68 is high visibility and available in a variety of mounts, lens colors and connectors. This lamp is IP68 rated and meets all FMVSS 108 standards for wide and narrow vehicles. A smooth finish and the ability to mount at any angle puts this light at the top of the list. These lights employ the same world-leading lens design and high quality construction used throughout our product line to create a top quality, cost-effective lighting solution.

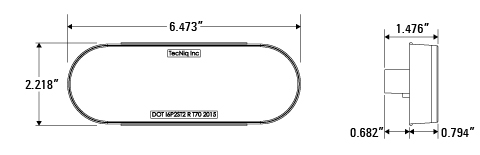

| Dimensions |
|
| LEDs | 8 |
| Voltage | 9-14VDC |
| Current | 0.125A-0.155A - Amber flasher |
| Connectors |

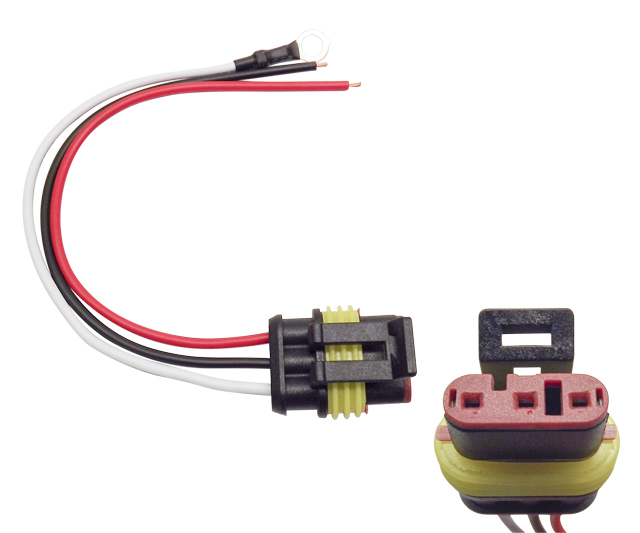

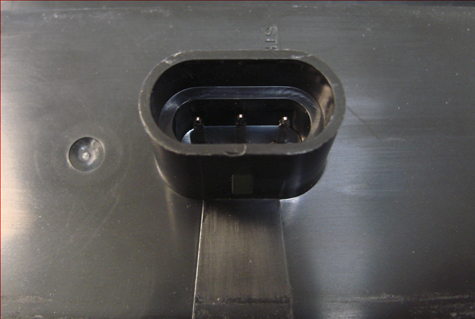

Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Amber |
| Angle |
|
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T60-0G00-1 |
6" Oval Grommet
|
- | ||||
| T68-AAZ0A-1 |
6" oval high visibility Strobe grommet mount with amp connector
|
 |
 |
120 | Amp | |
| T68-AAZ0P-1 |

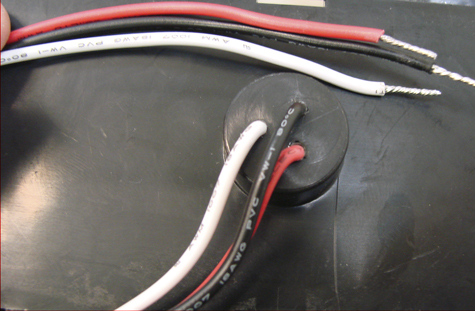

6" oval high visibility Strobe grommet mount with pigtail wires
|
|
|
140 | Pigtail | |
| T68-AAZ0T-1 |
6" oval high visibility Strobe grommet mount
|
|
|

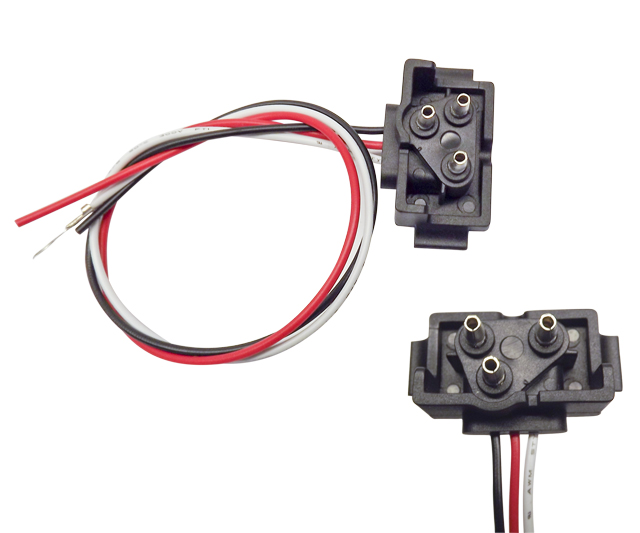

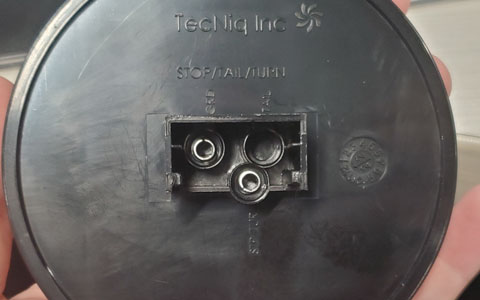

120 | Tri Pole |
