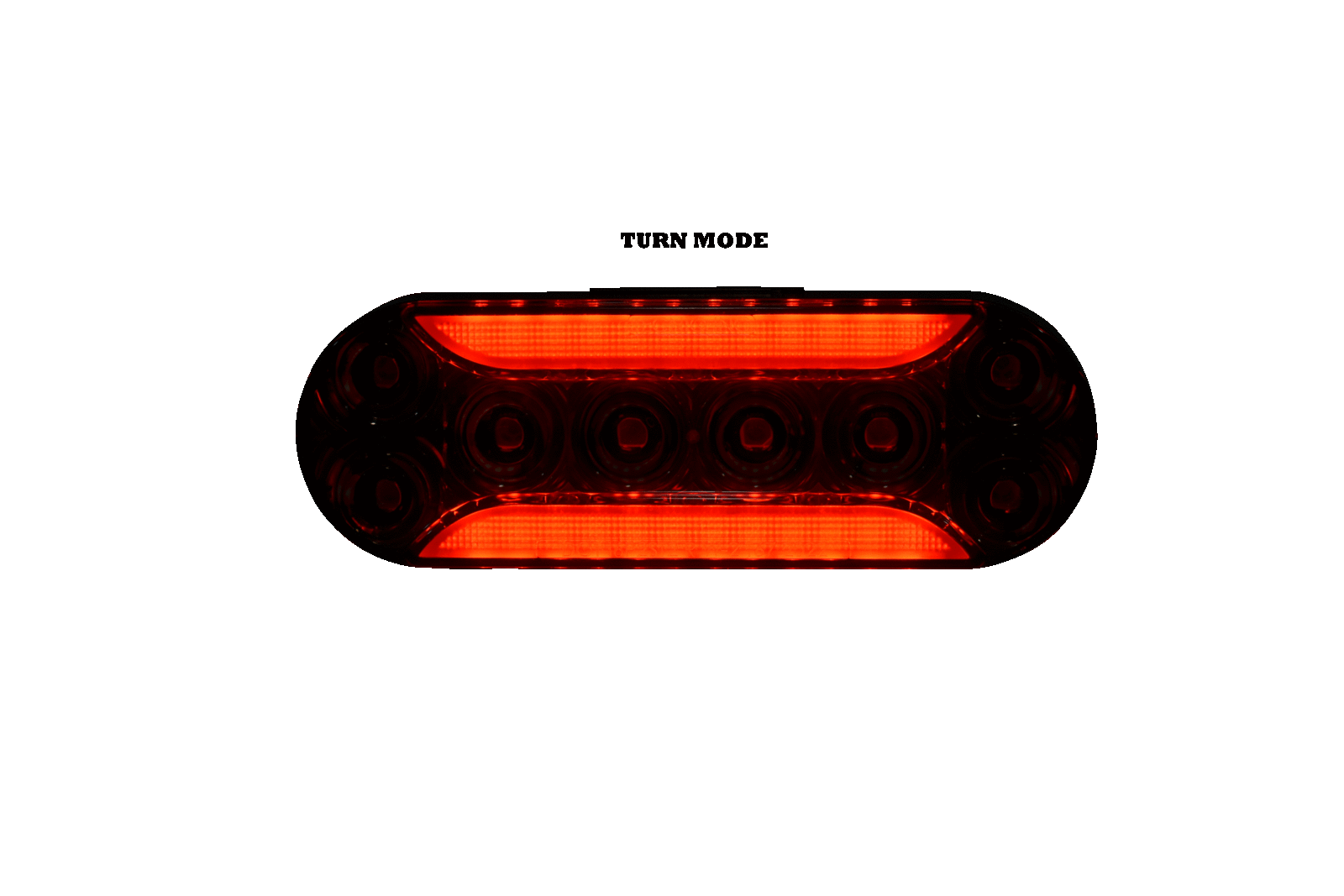

T67 6" Oval - Diffused Strobe or DOT Lamp
.gif)
.gif)
.gif)
T67 6" Oval - Diffused Strobe or DOT Lamp
Technical Features
- Meets or exceeds FMVSS 108, and is IP68 rated for dust and water incursion

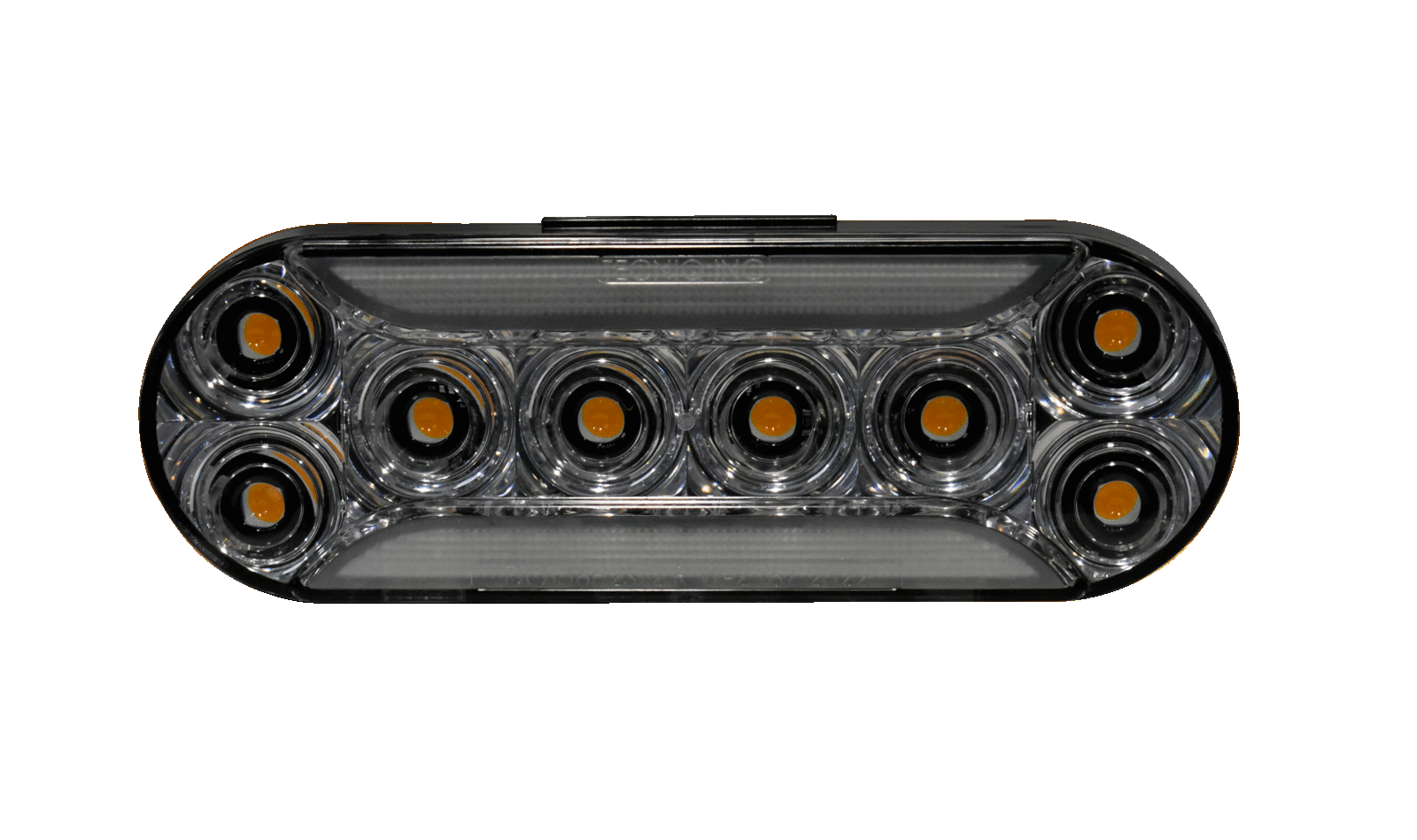

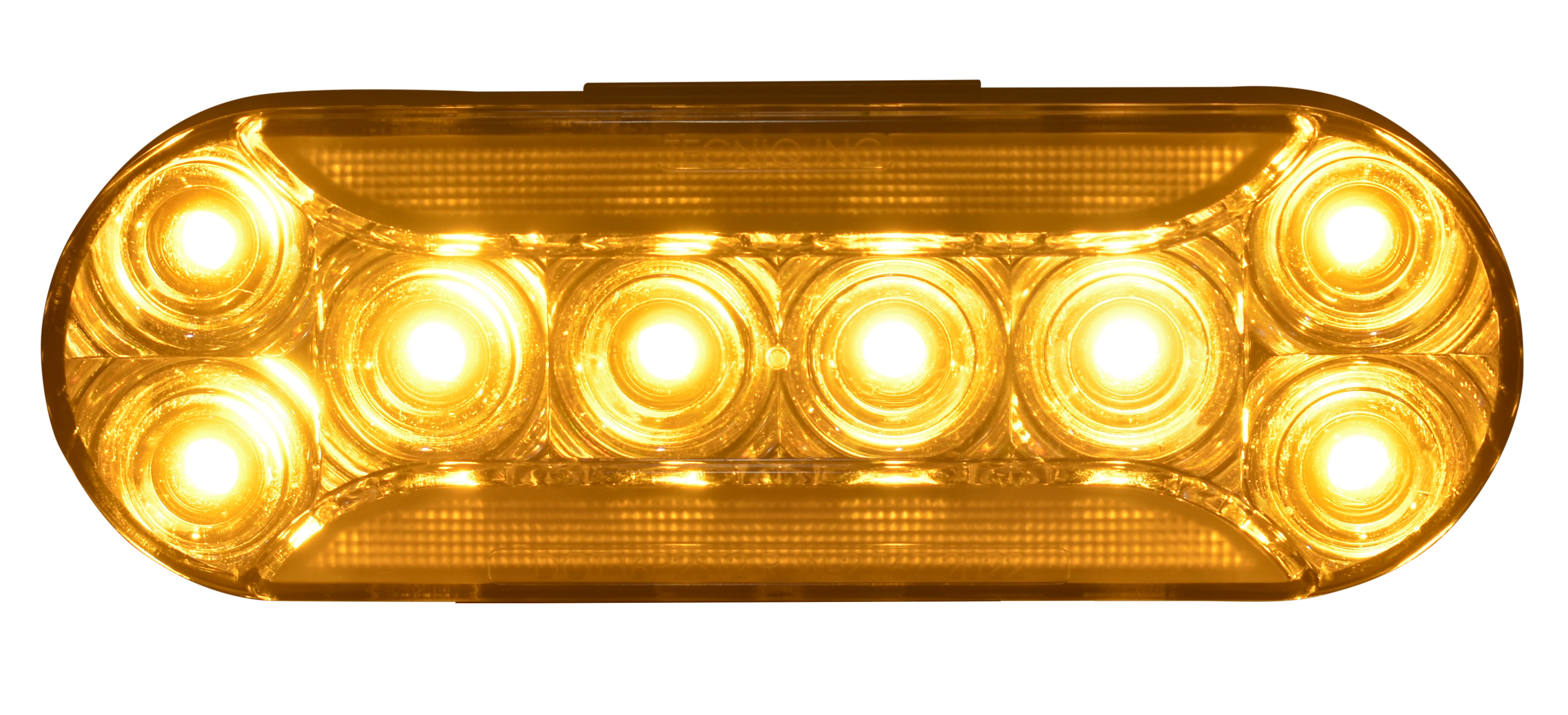

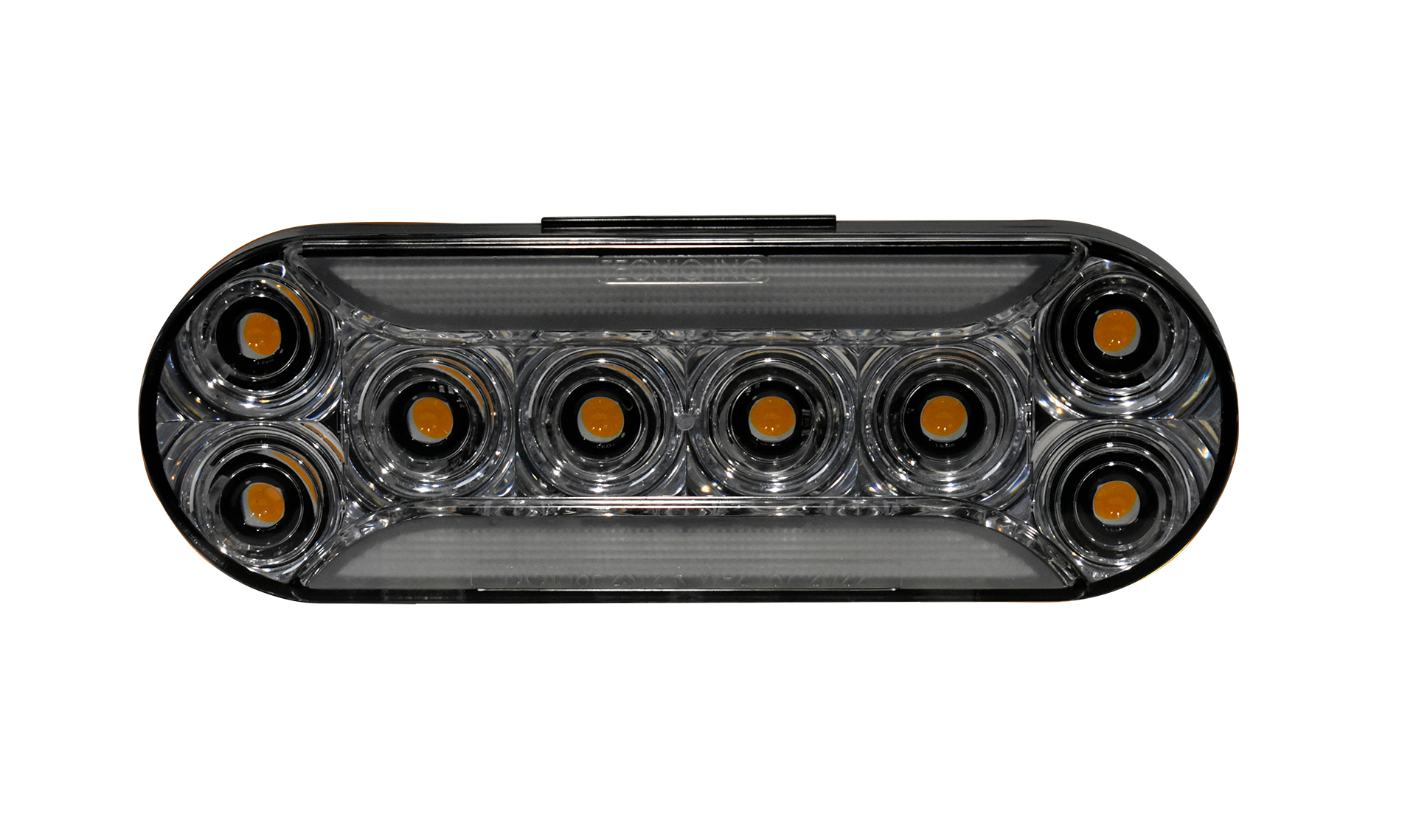

- Amber Strobe meets SAE J595 specs for flashing optical warning devices
- Sonically welded for a 100% sealed light
- Available in (4) different lens/LED configurations, grommet mounted, with an Amp connector. Only clear lenses available right now.
- Comes with TecNiq Lifetime Warranty
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim

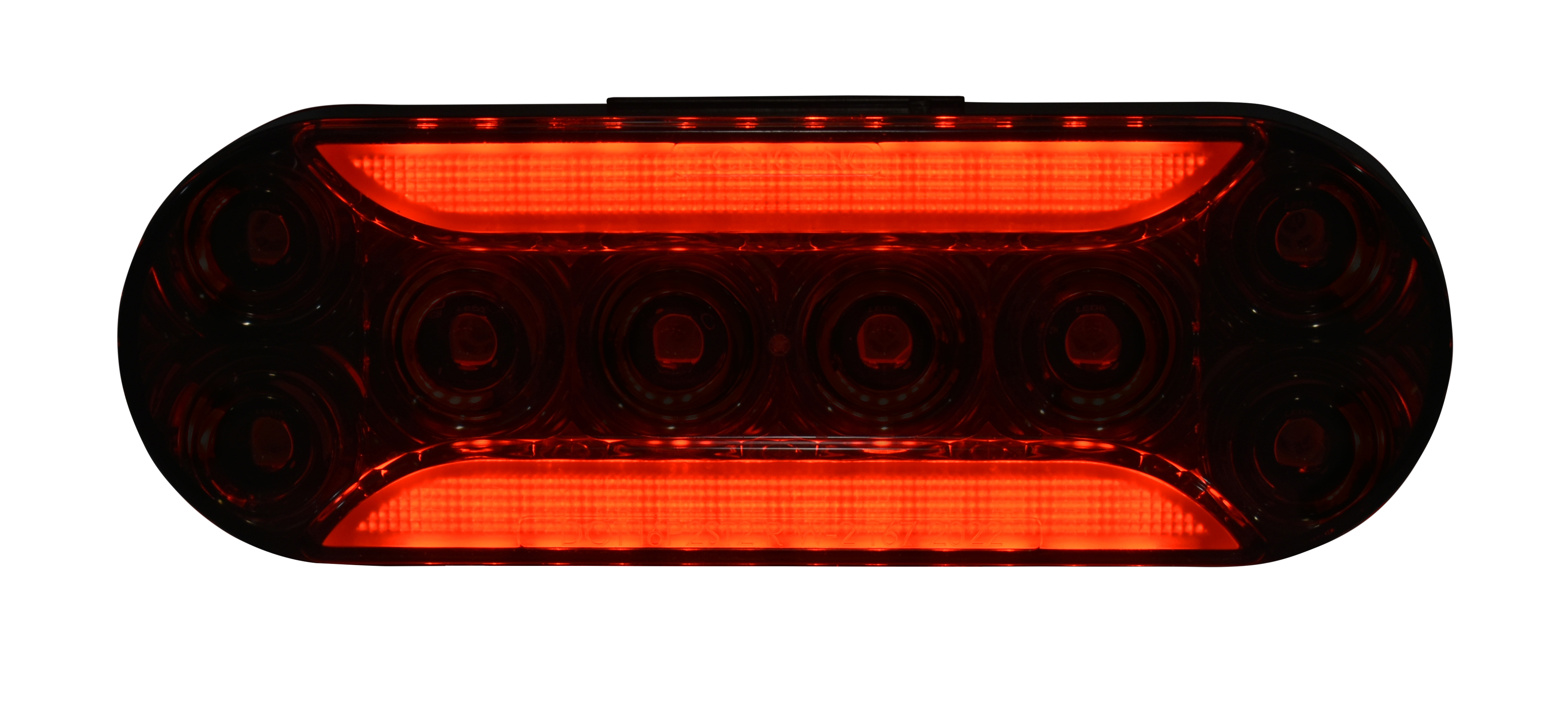

Introducing TecNiq’s ALL NEW T67 6” Oval Diffused Lamp. This all new light from TecNiq combines all the features of a traditional Stop/Tail/Turn & Reverse lamp, with the new styling of a diffused top and bottom lensing. Diffused lensing is a great way to make a statement, while at the same time drawing attention to the light - assuring that you will be seen and safe out on the roads. The T67 is also available in an Amber Strobe, keeping motorists aware and crews safe.

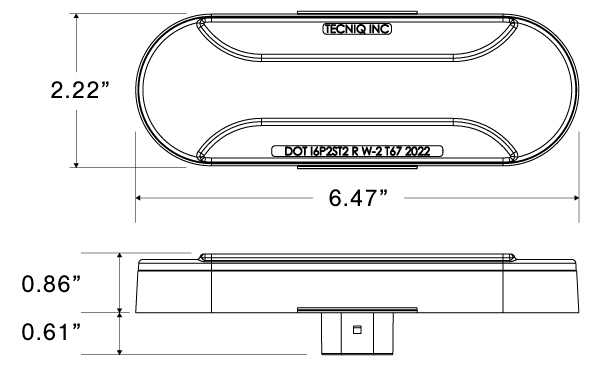

| Dimensions |
|
| LEDs | 32 (T67-RW0A-1 - 50) |
| Voltage | 9-14VDC |
| Current |
0.575A (± 0.085A) - Amber Strobe's Reverse 0.280A (± TBD) - Amber Strobe 0.170A (± 0.030A) - Stop/Turn 0.075A (± 0.012A) - Tail 0.575A (± 0.085A) - Reverse |
| Connectors | Amp |
| Mounting | Grommet |
| LED Colors | Red • Amber • White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T67-AWZ0A-1 |
6" Oval Grommet Amber Flasher Diffuse Reverse w Amp
|
 |
 |
Amp | ||
| T67-AWZ0T-1 |
6" Oval Grommet Amber Flasher Diffuse Reverse w PL3
|
|
|
Tri Pole | ||
| T67-RC0A-1 |
6" Oval Grommet Red Stop Diffuse Tail w Amp
|
 |
|
Amp | ||
| T67-RC0P-1 |
6IN Oval STT GM Red Clr Diffuse Tail PgTl
|
|
|
Pigtail | ||
| T67-RC0T-1 |
6IN Oval STT GM Red Clr Diffuse Tail PL3 Conn
|
|
|
Tri Pole | ||
| T67-RT0A-1 |
6" Oval Grommet Tinted Stop Diffuse Tail w Amp
|
|
 |
Amp | ||
| T67-RT0T-1 |
Red Diffuse STT Grommet Mount Tinted Lens w Tripole
|
|
|
Tri Pole | ||
| T67-RW0A-1 |
6" Oval Grommet Red Diffuse STTR w Dual Amp
|
|
|
Amp | ||
| T67-RW0P-1 |
6" Oval Grommet Red Diffuse STTR w Pigtails
|
|
|
Pigtail | ||
| T67-RWTB-1 |
6IN Oval GM STTR Tint .180 Bullets
|
|
|
0.180" Bullets | ||
| T67-RWTP-1 |
6IN Oval GM STTR Tint PgTl
|
|
|
Pigtail | ||
| T67-WC0A-1 |
6" Oval Grommet Diffuse Reverse w Amp
|
 |
|
Amp | ||
| T67-WC0T-1 |
6" Oval Grommet Diffuse Reverse w PL3
|
|
|
Tri Pole | ||
| T67-WT0A-1 |
6" Oval Grommet Tinted Diffuse Reverse w Amp
|
|
|
Amp | ||
| T67-WT0T-1 |
White Diffuse Rev Grommet Mount Tinted Lens w Tripole
|
|
|
Tri Pole |
