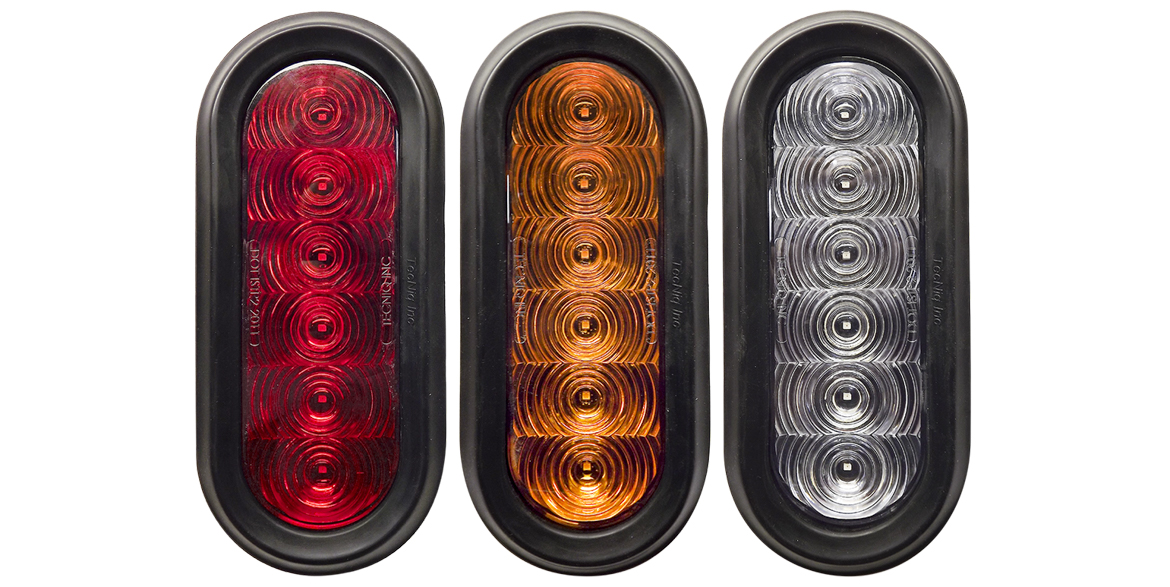

T66 6" Oval Stop/Tail/Turn
T66 6" Oval Stop/Tail/Turn
Technical Features
- Smooth surface, great looking Stop/Tail/Turn Light
- Durable impact resistant lens
- Fit all industry standard 6" oval applications
- Available in grommet or surface mount
- Can be mounted horizontal, vertical, or at any angle
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Excellent impact and UV resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim
Following the success of our 4" round tail lamp, TecNiq has introduced a line of 6" oval stop-turn-tail lamps. TecNiq's T66 can be mounted at any angle for DOT compliance. These lights employ the same world leading lens design and high quality construction used throughout our product line to create a top quality, cost-effective lighting solution.
| Dimensions |

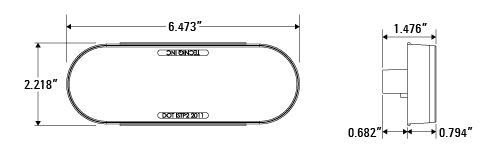

Grommet Mount - 6.473"x 2.218"x 1.47"
|
| LEDs | 6 |
| Voltage | 9-14VDC |
| Current |
0.17A-0.28A - Colored lens 0.12A-0.16A - Red/Clear 0.12A-0.16A - Amber/Clear 0.21A-0.27A - White |
| Connectors |
Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Red • Amber • White |
| Angle |
|
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T60-0G00-1 |

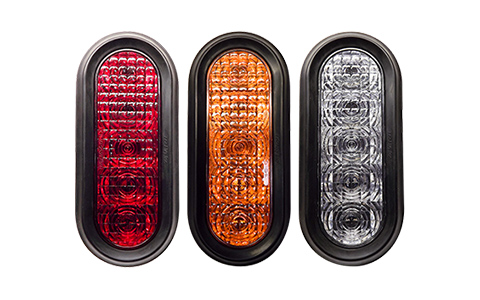

6" Oval Grommet
|
- | ||||
| T61-0B00-1 |

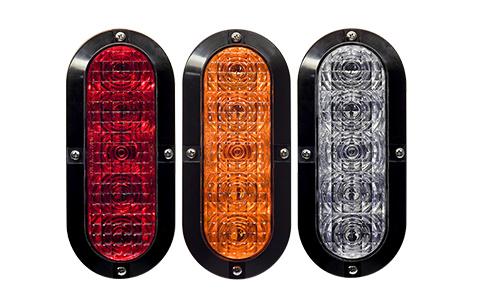

6" Oval Surface Mount Trim Ring Black
|
- | ||||
| T61-0C00-1 |
6" Oval Surface Mount Trim Ring Chrome
|
- | ||||
| T61-0G00-1 |
.090 Thick Neoprene Gasket
|
- | ||||
| T66-AA0A-1 |
6IN Oval 6 LED Turn Grommet Mount Amber Lens Amp Conn.
|
 |
 |
120 | Amp | |
| T66-AA0P-1 |
6" Oval 6 LED Turn Grommet Mount Amber Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-AA0T-1 |

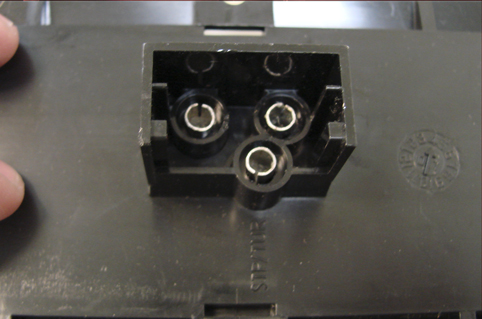

6" Oval 6 LED Turn Grommet Mount Amber Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-AASA-1 |
Oval 6 LED Turn Surface Mount Amber Lens Amp Conn.
|
|
|
120 | Amp | |
| T66-AASP-1 |
6" Oval 6 LED Turn Surface Mount Amber Lens Pig-Tail
|
|
|
140 | Pigtail | |
| T66-AAST-1 |
6" Oval 6 LED Turn Surface Mount Amber Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-AC0A-1 |
6" Oval 6 LED Amber Turn Grommet Mount Clear Lens Amp Connector
|
|
 |
120 | Amp | |
| T66-AC0P-1 |
6" Oval 6 LED Amber Turn Grommet Mount Clear Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-AC0T-1 |
6" Oval 6 LED Ambr Turn Grommet Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-RC0A-1 |
6" Oval 6 LED STT Grommet Mount Clear Lens Amp Connector
|
 |
|
120 | Amp | |
| T66-RC0P-1 |
6" Oval 6 LED STT Grommet Mount Clear Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-RC0T-1 |
6" Oval 6 LED STT Grommet Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-RCSB-1 |
6" Oval LED STT Surface Mount Clear Lens with .180 Bullets
|
|
|
140 | 0.180" Bullets | |
| T66-RCSP-1 |
6" Oval 6 LED STT Surface Mount Clear Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-RCST-1 |
6" Oval 6 LED STT Surface Mount ClearLens 3 Pole
|
|
|
140 | Tri Pole | |
| T66-RR0A-1 |
6" Oval 6 LED STT Grommet Mount Red Lens Amp Connector
|
|
 |
120 | Amp | |
| T66-RR0M-1 |
6IN Oval 6LED STT GM Red Lens .156 Barrels
|
|
|
|||
| T66-RR0N-1 |
6IN Oval 6LED STT GM Red Lens .156 Barrels Dielectric Grease
|
|
|
|||
| T66-RR0P-1 |
6" Oval 6 LED STT Grommet Mount Red Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-RR0T-1 |
6" Oval 6 LED STT Grommet Mount Red Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-RRSA-1 |
6" Oval 6 LED STT Surface Mount Red Lens Amp Conn.
|
|
|
120 | Amp | |
| T66-RRSB-1 |
6" Oval 6 LED STT Surface Mount Red Lens w/180 Bullets
|
|
|
140 | 0.180" Bullets | |
| T66-RRSP-1 |
6" Oval 6 LED STT Surface Mount Red Lens Pigtail
|
|
|
140 | Pigtail | |
| T66-RRST-1 |
6" Oval 6 LED STT Surface Mount Red Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-WC0T-1 |
6" Oval 6 LED White Grommet Mount Clear Lens 3 Pole
|
 |
|
120 | Tri Pole | |
| T66-WCRA-1 |
6" Oval Reverse 6 LED White Grommet Mount Clear Lens Amp
|
|
|
120 | Amp | |
| T66-WCRB-1 |
6" Oval Reverse 6 LED White Grommet Clear Crimped 180 bul
|
|
|
140 | 0.180" Bullets | |
| T66-WCRP-1 |
6" Oval Reverse 6 LED White Grommet Mount Clear Lens PigTail
|
|
|
140 | Pigtail | |
| T66-WCRT-1 |
6" Oval Reverse 6 LED White Grommet Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T66-WCSA-1 |
6" Oval 6 LED White Reverse Surface Mount Clear Lens Amp Connector
|
|
|
120 | Amp | |
| T66-WCSP-1 |
6" Oval 6 LED White Reverse Surface Mount Pig-Tail
|
|
|
140 | Pigtail | |
| T66-WCST-1 |
6" Oval 6 LED White Reverse Surface Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T99-0010-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - Straight
|
Tri Pole | ||||
| T99-0020-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree
|
Tri Pole | ||||
| T99-0021-1 |
Harness PL3 to 2 Pole Conn and Grnd Rng 12in
|
|||||
| T99-0040-1 |
Amp - Pigtail Wire Adapter
|
Amp | ||||
| T99-0050-1 |
Amp - Tripole Adapter
|
Amp - Tri Pole | ||||
| T99-0060-1 |
Y Style plug with 6" wires
|
Tri Pole |
