T62 6" Oval Stop/Tail/Turn Flange Mount
T62 6" Oval Stop/Tail/Turn Flange Mount
Technical Features
- Flange mount 6" oval - fits all industry standard applications
- Can be purchased for horizontal or vertical position mounting - separate part numbers
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- Also available in T60 grommet mount version and T61 surface mount
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim

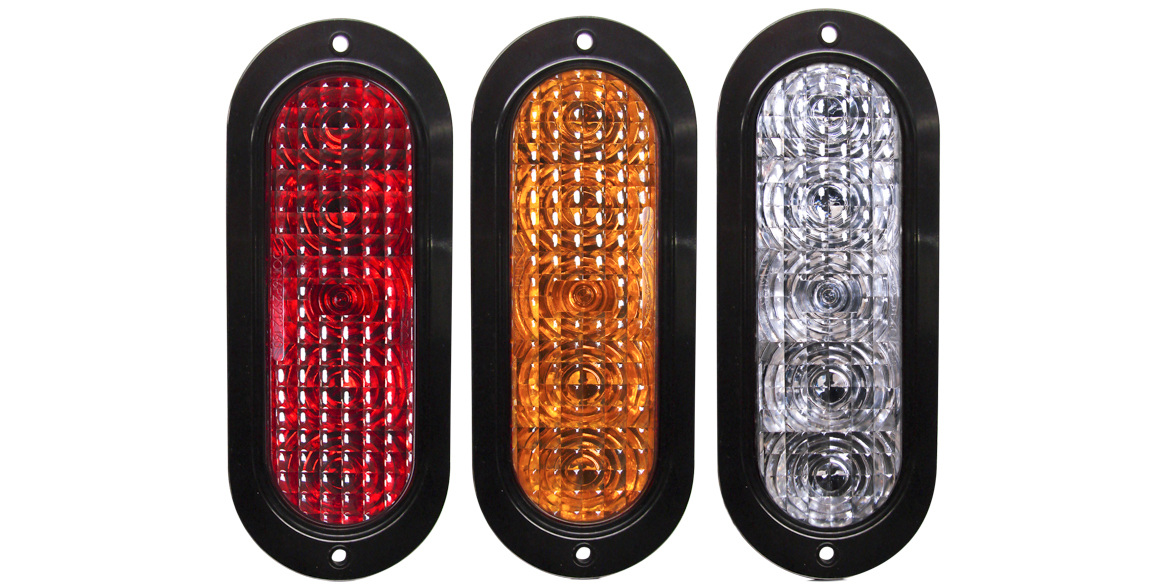

The TecNiq T62 lamps are offered in horizontal and vertical mounting styles for DOT compliance. It is available with either amber or red LEDs, plus we offer clear lens options and a variety of connector styles on request. These lights employ the same world leading lens design and high quality construction used throughout our product line to create a top quality, cost-effective lighting solution.

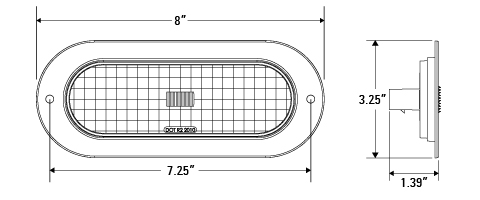

| Dimensions |
|
| LEDs | 5 |
| Voltage | 9-14VDC |
| Current |
0.17A-0.23A - Colored lens 0.10A-0.14A - Red/Clear 0.28A-0.36A - Amber/Clear 0.31A-0.39A - White |
| Connectors |
Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T62-0S00-1 |
SS trim ring for oval tail lamp
|
- | ||||
| T62-AAHA-1 |
Amber Flush Mount Horizontal Amber Lens Amp Connector
|
 |
 |
120 | Amp | |
| T62-AAWHA-1 |
Amber Flush Mount Horizontal White Base Amber Lens Amp
|
|
|
120 | Amp | |
| T62-RCHA-1 |
Red Flush Mount Horizontal Oval Tail Clear Lens Amp Connecto
|
 |
 |
120 | Amp | |
| T62-RCVA-1 |
Red Flush Mount Vertical Oval Tail Clear Lens Amp Connector
|
|
|
120 | Amp | |
| T62-RRHA-1 |
Red Flush Mount Horizontal Oval Tail Red Lens Amp Connector
|
|
 |
120 | Amp | |
| T62-RRVA-1 |
Red Flush Mount Vertical Oval Tail Red Lens Amp Connector
|
|
|
120 | Amp | |
| T62-W0VA-1 |
Oval Tail Reverse Lamp Flush Vertical Mount
|
 |
|
120 | Amp | |
| T99-0010-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - Straight
|
Tri Pole | ||||
| T99-0020-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree
|
Tri Pole | ||||
| T99-0021-1 |
Harness PL3 to 2 Pole Conn and Grnd Rng 12in
|
|||||
| T99-0040-1 |
Amp - Pigtail Wire Adapter
|
Amp | ||||
| T99-0050-1 |
Amp - Tripole Adapter
|
Amp - Tri Pole | ||||
| T99-0060-1 |
Y Style plug with 6" wires
|
Tri Pole |
