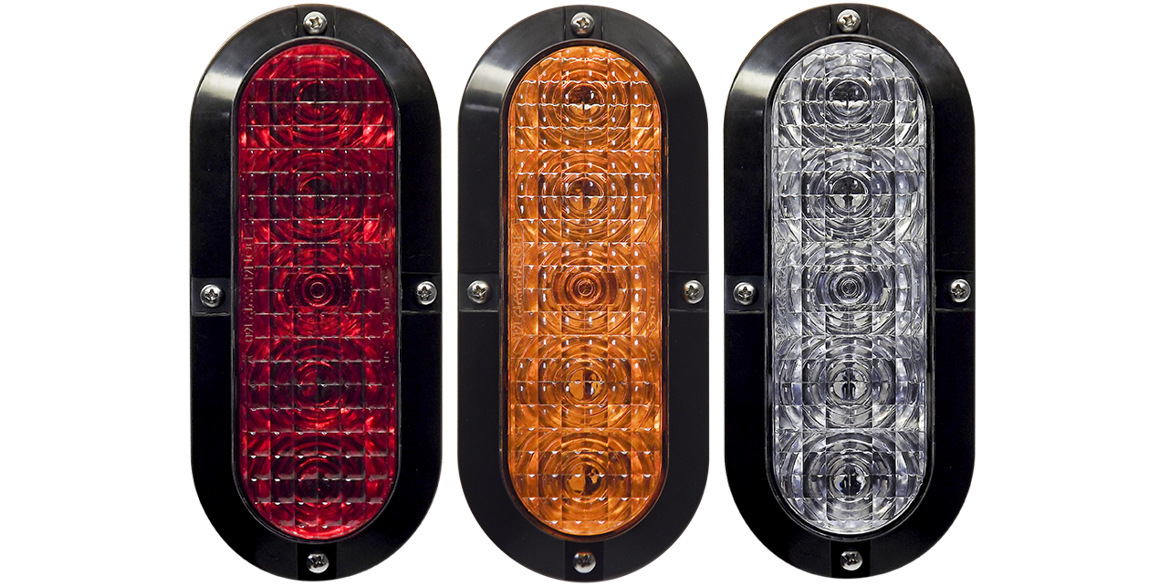

T61 6" Oval Stop/Tail/Turn Surface Mount
T61 6" Oval Stop/Tail/Turn Surface Mount
Technical Features
- Surface mount 6" oval - fits all industry standard applications
- Can be purchased for horizontal or vertical position mounting - separate part numbers
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- Also available in T60 grommet mount version and T62 flange mount
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim
The TecNiq T61 lamps are offered in horizontal and vertical mounting styles for DOT compliance. In addition, we offer a variety of connector styles and clear lens options on request.

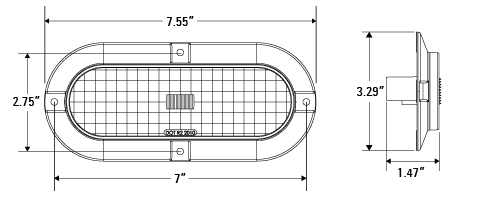

| Dimensions |
|
| LEDs | 5 |
| Voltage | 9-14VDC |
| Current |
0.17A-0.23A - Colored lens 0.10A-0.14A - Red/Clear 0.28A-0.36A - Amber/Clear 0.21A-0.27A - White |
| Connectors |
Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White/Color |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T61-0B00-1 |
6" Oval Surface Mount Trim Ring Black
|
- | ||||
| T61-0C00-1 |
6" Oval Surface Mount Trim Ring Chrome
|
- | ||||
| T61-0G00-1 |
.090 Thick Neoprene Gasket
|
- | ||||
| T61-AAHA-1 |
6" Oval Amber Turn Horiz. Surface Mount Amber Lens Amp
|
 |
 |
120 | Amp | |
| T61-AAHB-1 |
6IN Oval Amb Turn Horiz SM Amb Lns .180 Bullets
|
|
|
|||
| T61-AAHP-1 |
6" Oval Amber Turn Horiz. Surface Mount Amber Lens Pig Tail
|
|
|
140 | Pigtail | |
| T61-AAHT-1 |
6" Oval Amber Turn Horiz. Surface Mount Amber Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-AAVA-1 |
6" Oval Amber Turn Vertical Surface Mount Amber Lens Amp
|
|
|
120 | Amp | |
| T61-AAVP-1 |
6" Oval Amber Turn Vertical Surface Mount Amber Len Pig Tail
|
|
|
140 | Pigtail | |
| T61-AAVT-1 |
6" Oval Amber Turn Vertical Surface Mount Amber Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-ACHA-1 |
6" Oval Amber Turn Horiz. Surface Mount Clear Lens Amp
|
|
 |
120 | Amp | |
| T61-ACHP-1 |
6" Oval Amber Turn Horiz. Surface Mount Clear Lens Pig Tail
|
|
|
140 | Pigtail | |
| T61-ACHT-1 |
6" Oval Amber Turn Horiz. Surface Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-ACVA-1 |
6" Oval Amber Turn Vert. Surface Mount Clear Lens Amp connector
|
|
|
120 | Amp | |
| T61-ACVP-1 |
6" Oval Amber Turn Vertical Surface Mnt Clear Lens Pig Tail
|
|
|
140 | Pigtail | |
| T61-ACVT-1 |
6" Oval Amber Turn Vertical Surface Mnt Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-RCHA-1 |
6" Oval Red STT Horiz. Surface Mount Clear Lens Amp
|
 |
|
120 | Amp | |
| T61-RCHP-1 |
Red STT Horiz. Surface Mount Clear Lens w/Pig-Tail
|
|
|
140 | Pigtail | |
| T61-RCHT-1 |
6" Oval Red STT Horiz. Surface Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-RCVA-1 |
6" Oval Red STT Vertical Surface Mount Clear Lens Amp
|
|
|
120 | Amp | |
| T61-RCVP-1 |
6" Oval Red STT Vertical Surface Mount Clear Lens Pig Tail
|
|
|
140 | Pigtail | |
| T61-RCVT-1 |
6" Oval Red STT Vertical Surface Mount Clear Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-RRHA-1 |
6" Oval Red STT Horiz. Surface Mount Red Lens Amp
|
|
 |
120 | Amp | |
| T61-RRHB-1 |
6" Oval Red STT Horiz Surf Mnt Red Lns PigTail w/.180 Bullet
|
|
|
140 | 0.180" Bullets | |
| T61-RRHP-1 |
6" Oval Red STT Horiz. Surface Mount Red Lens w/Pig-Tail
|
|
|
140 | Pigtail | |
| T61-RRHT-1 |
6" Oval Red STT Horiz. Surface Mount Red Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-RRVA-1 |
6" Oval Red STT Vertical Surface Mount Red Lens Amp
|
|
|
120 | Amp | |
| T61-RRVP-1 |
6" Oval Red STT Vertical Surface Mount Red Lens Pig Tail
|
|
|
140 | Pigtail | |
| T61-RRVT-1 |
6" Oval Red STT Vertical Surface Mount Red Lens 3 Pole
|
|
|
120 | Tri Pole | |
| T61-WCHP-1 |
6" Oval Horizontal Surface Mount Light Pigtail
|
 |
|
140 | Pigtail | |
| T61-WCVP-1 |
6" Oval Vertical Surface Mount Reverse Light Pigtail
|
|
|
140 | Pigtail | |
| T99-0010-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - Straight
|
Tri Pole | ||||
| T99-0020-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree
|
Tri Pole | ||||
| T99-0021-1 |
Harness PL3 to 2 Pole Conn and Grnd Rng 12in
|
|||||
| T99-0040-1 |
Amp - Pigtail Wire Adapter
|
Amp | ||||
| T99-0050-1 |
Amp - Tripole Adapter
|
Amp - Tri Pole | ||||
| T99-0060-1 |
Y Style plug with 6" wires
|
Tri Pole |
