T42 4" Round Stop/Tail/Turn/Reverse
T42 4" Round Stop/Tail/Turn/Reverse
Technical Features
- Save time and money with our new combination Stop/Tail/Turn and Reverse Light
- Fits all standard 4” round applications
- IP68 Rated - Dust and water proof with hermetic seal
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- Lifetime Warranty
TecNiq's All New T42 4" Round Stop/Tail/Turn/Reverse Light brings multi functions to a standard, elegant package. The T42 fits all standard 4" round applications, and is IP68 rated for dust and water incursion. It comes with reliable performance for over 100k hours, and meets all FMVSS 108 requirements for wide and narrow vehicles.

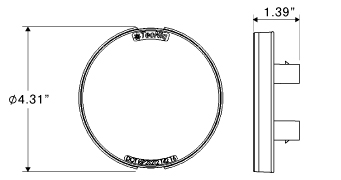

| Dimensions |
|
| LEDs | 12 Red/4 White |
| Voltage | 9-14VDC |
| Current |
0.23A-0.31A - Red (brake) 0.33A-0.44A - White 0.08A-0.1A - Red (Tail) |
| Connectors |
Amp Connector
|
| Mounting | Fits standard 4" mounting holes |
| LED Colors | Red/White |
| Angle |
|
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T40-0G00-1 |
4" Round Grommet
|
100 | - | |||
| T40-0G20-1 |
4" Round Grommet High Grip
|
100 | - | |||
| T40-0GG0-1 |
T40 Adhesive Flange Gasket
|
100 | - | |||
| T42-RW0A-1 |
4in Round STTR w Large Reverse Grommet Mount Amp
|
 |
 |
100 | Amp | |
| T42-RW0T-1 |
4in Round STTR w Large Reverse Grommet Mount Tripole
|
|
|
100 | Tri Pole |
