T41 High Brightness Reverse Lamp
T41 High Brightness Reverse Lamp
Technical Features
- Bright and durable reverse light
- Fits all industry standard 4" applications
- Lamp is certified for both, one or two backup lamp systems
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Reliable performance over 50,000 hours

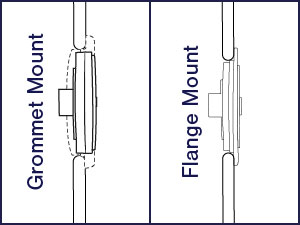

- Mounts with standard grommets or our anti-theft stainless steel trim ring

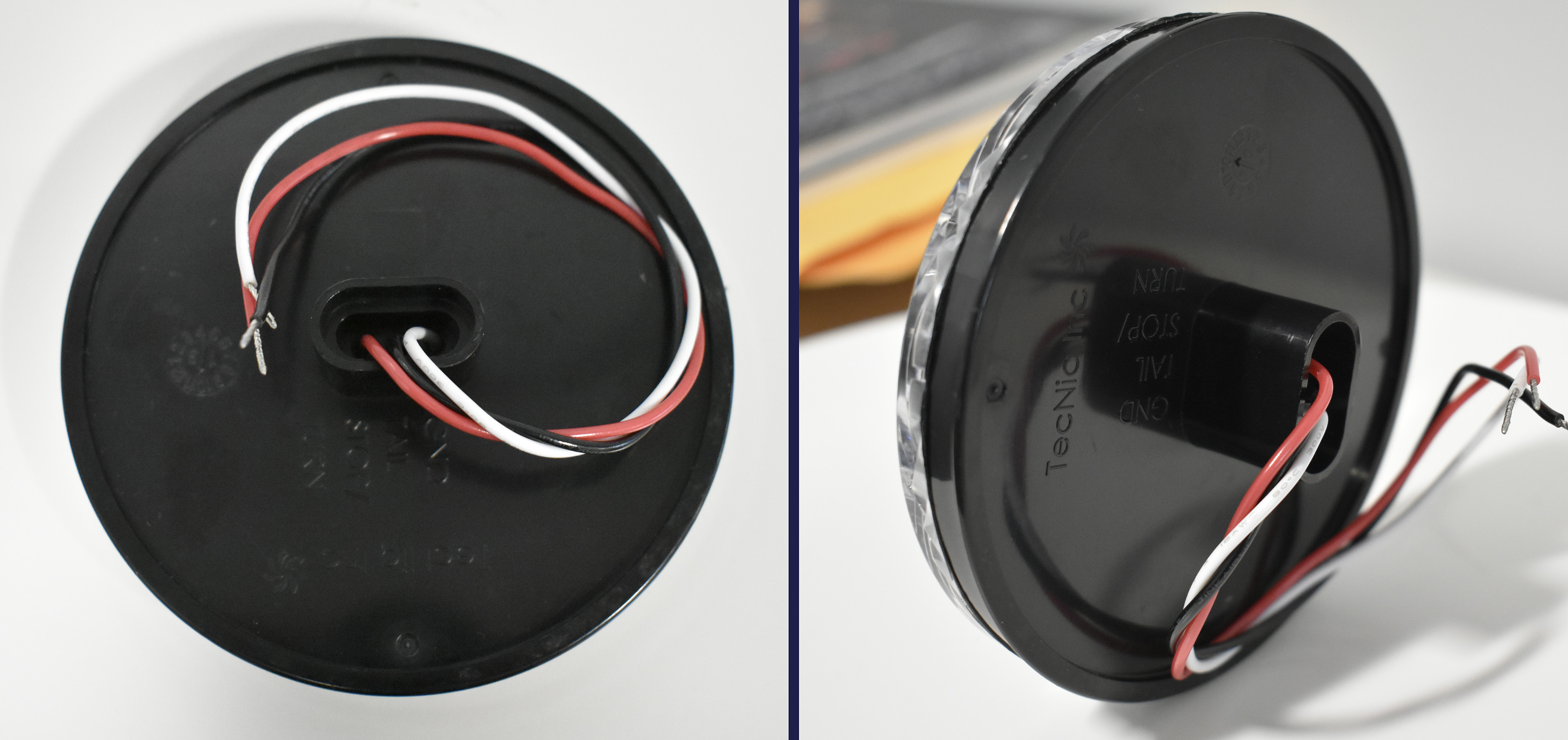

- WIRE COLORS
White – Ground, Black – Positive

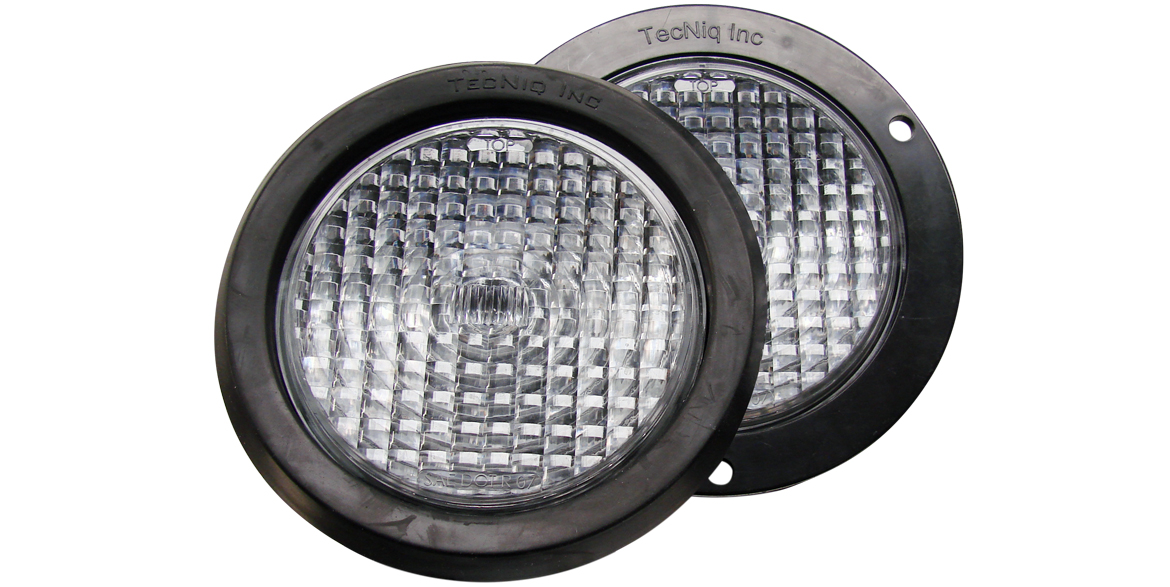

The TecNiq T41 Incorporates our world-leading optic designs and a single ultra-bright LED source, this lamp exceeds the requirement for a single reverse lamp twice over. Made with top-quality circuit board materials, urethane potting and durable polycarbonate construction that you've come to expect from TecNiq, this lamp is sure to offer many years of trouble free service.

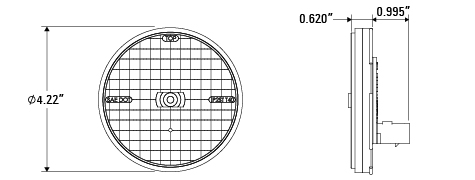

| Dimensions |
Grommet Mount - Ø4.22"x 0.96"
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.26A-0.34A - White |
| Connectors |
Amp Connector
|
| Mounting | Fits standard 4" mounting holes |
| LED Colors | White |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - Reverse |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T40-0G00-1 |
4" Round Grommet
|
100 | - | |||
| T40-0G20-1 |
4" Round Grommet High Grip
|
100 | - | |||
| T40-0GG0-1 |
T40 Adhesive Flange Gasket
|
100 | - | |||
| T40-0S00-1 |
4" Round Trim Ring SS
|
100 | - | |||
| T41-WC0A-1 |
4" Round 2x Reverse Lamp Grommet Amp
|
 |
 |
100 | Amp | |
| T41-WC0B-1 |
4` Round 2X Reverse Lamp Grommet Bullet
|
|
|
100 | 0.180" Bullets | |
| T41-WC0P-1 |
4" Round 2x Reverse Lamp Grommet w/Pig Tail
|
|
|
100 | Pigtail | |
| T41-WC0T-1 |
4" Round 2x Reverse Lamp Grommet 3 Pole
|
|
|
100 | Tri Pole | |
| T41-WCFA-1 |
4" Round Reverse Lamp Clear Lens Flange Mount Amp
|
|
|
100 | Amp | |
| T41-WCFP-1 |
4" Round Reverse Lamp Clear Lens Flange Mount Pigtail
|
|
|
100 | Pigtail | |
| T41-WCFT-1 |
4" Round Reverse Lamp Clear Lens Flange Mount 3 Pole
|
|
|
100 | Tri Pole | |
| T99-0010-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - Straight
|
Tri Pole | ||||
| T99-0020-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree
|
Tri Pole | ||||
| T99-0021-1 |
Harness PL3 to 2 Pole Conn and Grnd Rng 12in
|
|||||
| T99-0040-1 |
Amp - Pigtail Wire Adapter
|
Amp | ||||
| T99-0050-1 |
Amp - Tripole Adapter
|
Amp - Tri Pole | ||||
| T99-0060-1 |
Y Style plug with 6" wires
|
Tri Pole |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
