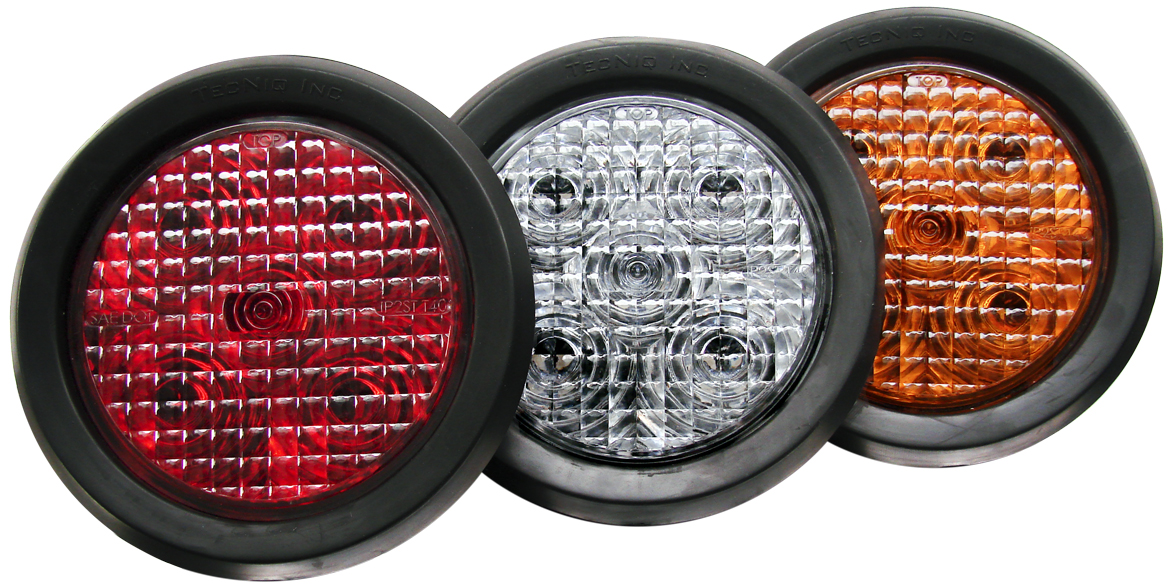

T40 4" Round Stop/Tail/Turn
T40 4" Round Stop/Tail/Turn
Technical Features
- Industry standard 4" round stop/tail/turn light

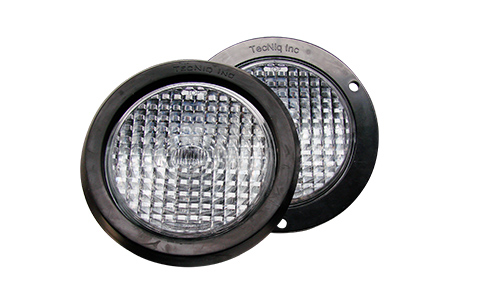

- Offered in our grommet or flange mount styles
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim
Incorporating our world-leading optics, the T40 is constructed from rugged automotive-grade materials and the latest generation LEDs. Backed by our remarkable lifetime warranty, this tail lamp is designed to provide your customers with a lifetime of troublefree service and quality.
| Dimensions |
Grommet Mount - Ø4.22"x 0.96"
|
| LEDs | 5 |
| Voltage | 9-14VDC |
| Current |
0.17A-0.23A - Colored lens 0.10A-0.14A - Red/Clear 0.26A-0.34A - Amber/Clear |
| Connectors |
Amp Connector
|
| Mounting | Fits standard 4" mounting holes |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T40-0G00-1 |
4" Round Grommet
|
100 | - | |||
| T40-0G20-1 |
4" Round Grommet High Grip
|
100 | - | |||
| T40-0GG0-1 |
T40 Adhesive Flange Gasket
|
100 | - | |||
| T40-0S00-1 |

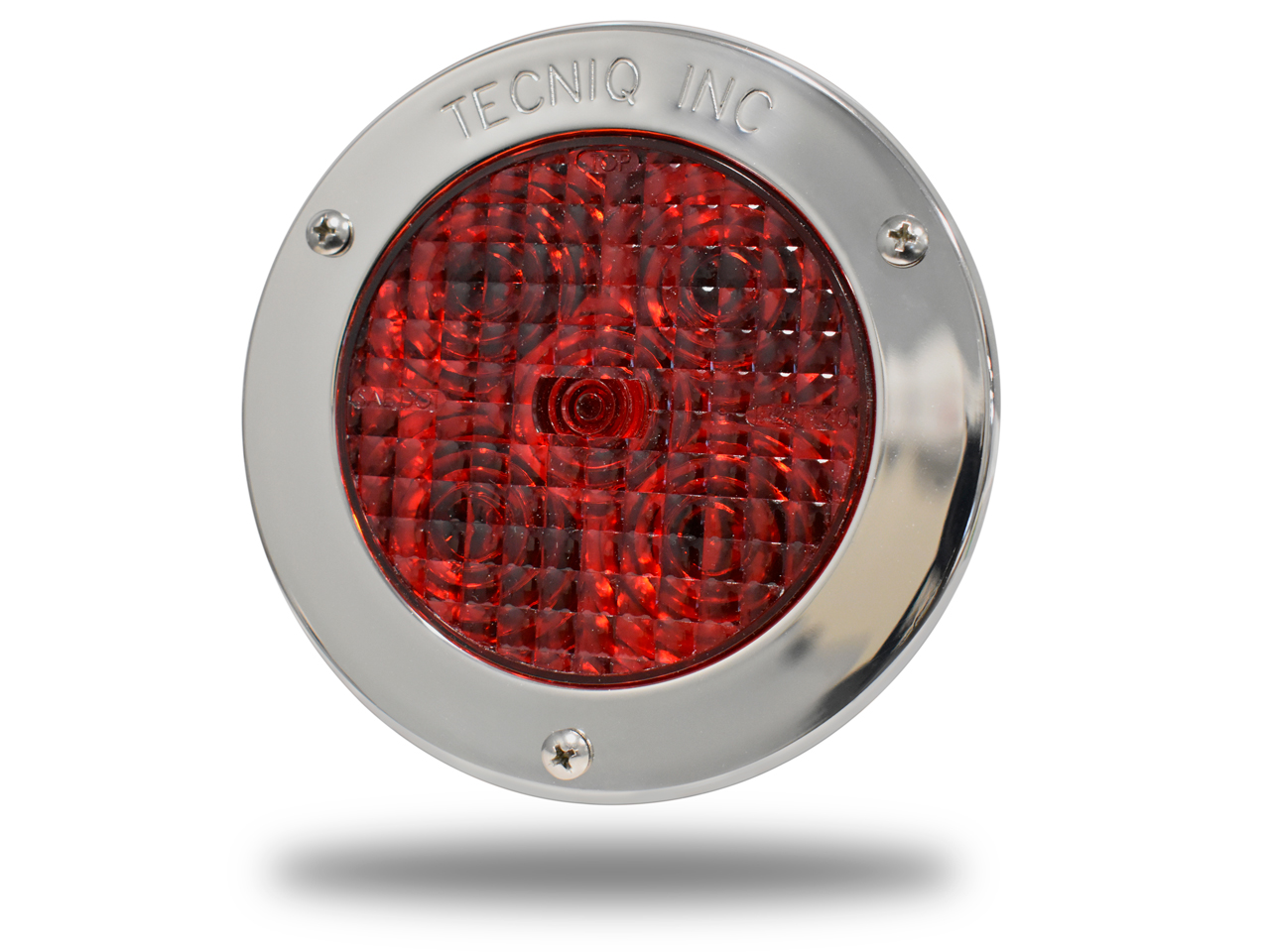

4" Round Trim Ring SS
|
100 | - | |||
| T40-AA0A-1 |
4" Round Amber Turn Lamp Amber Lens
|
 |
 |
100 | Amp | |
| T40-AA0P-1 |
4" Round Amber Turn Lamp Amber Lens w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-AA0T-1 |
4" Round Amber Turn Lamp Amber Lens 3 Pole
|
|
|
100 | Tri Pole | |
| T40-AAFA-1 |
4" Round Amber Turn Lamp Amber Lens Flange Mount
|
|
|
100 | Amp | |
| T40-AAFB-1 |
4` Round Amber Turn Lamp Amber Lens Flange 0.180 Bullet
|
|
|
100 | 0.180" Bullets | |
| T40-AAFP-1 |
4" Round Amber Turn Lamp Amber Lens Flange Mount w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-AAFT-1 |
4" Round Amber Turn Lamp Amber Lens Flange Mount 3 Pole
|
|
|
100 | Tri Pole | |
| T40-AC0A-1 |
4" Round Amber Turn Lamp Clear Lens
|
|
 |
100 | Amp | |
| T40-AC0P-1 |
4" Round Amber Turn Lamp Clear Lens w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-AC0T-1 |
4" Round Amber Turn Lamp Clear Lens 3 Pole
|
|
|
100 | Tri Pole | |
| T40-ACFA-1 |
4" Round Amber Turn Lamp Clear Lens Flange Mount
|
|
|
100 | Amp | |
| T40-ACFP-1 |
4" Round Amber Turn Lamp Clear Lens Flange Mount w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-ACFT-1 |
T64" Round Amber Turn Lamp Clear Lens Flange Mount 3 Pole
|
|
|
100 | Tri Pole | |
| T40-RC0A-1 |
4" Round STT Lamp Clear Lens
|
 |
|
100 | Amp | |
| T40-RC0P-1 |
4" Round STT Lamp Clear Lens w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-RC0T-1 |
4" Round STT Lamp Clear Lens 3 Pole
|
|
|
100 | Tri Pole | |
| T40-RCFA-1 |
4" Round STT Lamp Clear Lens Flange Mount
|
|
|
100 | Amp | |
| T40-RCFP-1 |
4" Round STT Clear Lens Flange Mount w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-RCFT-1 |
4" Round STT Lamp Clear Lens Flange Mount 3 Pole
|
|
|
100 | Tri Pole | |
| T40-RR0A-1 |
4" Round STT Lamp Red Lens
|
|
 |
100 | Amp | |
| T40-RR0B-1 |
4" Round STT Lamp Red Lens Pig Tail w/.180 Bullet
|
|
|
100 | 0.180" Bullets | |
| T40-RR0P-1 |
4" Round STT Lamp Red Lens w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-RR0T-1 |
4IN Rnd STT Lt Red Lens GM PL3
|
|
|
100 | Tri Pole | |
| T40-RRFA-1 |
4" Round STT Red Lens Flange Mount
|
|
|
100 | Amp | |
| T40-RRFB-1 |
4" Round STT Lamp Red Lens Pig Tail w/.180 Bullet w/flange
|
|
|
100 | 0.180" Bullets | |
| T40-RRFP-1 |
4" Round STT Red Lens Flange Mount w/Pig Tail
|
|
|
100 | Pigtail | |
| T40-RRFT-1 |
4" Round STT Red Lens Flange Mount 3 Pole
|
|
|
100 | Tri Pole | |
| T99-0010-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - Straight
|
Tri Pole | ||||
| T99-0020-1 |
12" 3-Pole .156" Bullet w/#6 GND Lug - 90 degree
|
Tri Pole | ||||
| T99-0021-1 |
Harness PL3 to 2 Pole Conn and Grnd Rng 12in
|
|||||
| T99-0040-1 |
Amp - Pigtail Wire Adapter
|
Amp | ||||
| T99-0050-1 |
Amp - Tripole Adapter
|
Amp - Tri Pole | ||||
| T99-0060-1 |
Y Style plug with 6" wires
|
Tri Pole |
