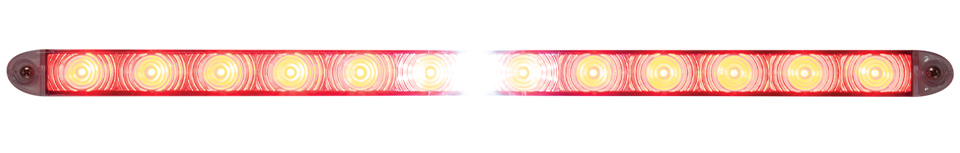

T16 20" Stop/Tail/Turn/Reverse
T16 20" Stop/Tail/Turn/Reverse
Technical Features
- Save time and money with our new combination Stop/Tail/Turn and Reverse Light
- FMVSS 108 - meets all standards for wide and narrow vehicles
- IP68 Rated - Dust and water proof with hermetic seal
- Sleek, slender design allows for larger door openings
- Can be mounted horizontal, vertical, or at any angle
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- UV and impact resistant automotive grade polycarbonate lens
- WIRE COLORS
White – Ground, Red – High/Turn, Black – Low/Dim, Yellow – Reverse
Save time and money with TecNiq's new 20" combination Stop/Tail/Turn and Reverse Light. The T16 meets all FMVSS 108 standards for wide and narrow vehicles, is IP68 rated for dust and water proof, is hermetically sealed, and can be mounted horizontally, vertically, or at any angle. The T16 is a great choice for an oversized trailer, larger work trucks and more.

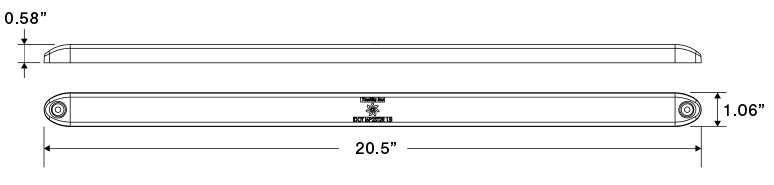

| Dimensions |
|
| LEDs | 11 (+2 white) |
| Voltage | 9-14VDC |
| Current |
0.07A-0.10A - Brake/Turn 0.17A-0.23A - Reverse |
| Connectors | 9" wire |
| Mounting | Surface mount using 2 screws |
| LED Colors | Red/White combo |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T16-RC00-1 |
20" slim profile clear lens STT
|
 |
 |
100 | Pigtail | |
| T16-RCW0-1 |
20" slim profile clear lens STTR
|
|
|
100 | Pigtail | |
| T16-RCWB-1 |
20IN Slim Profile Clr Lns STTR .180 Bullets
|
|
|
|||
| T16-RR00-1 |
20" slim profile Red lens STT
|
|
 |
100 | Pigtail | |
| T16-RT00-1 |
20IN Slim Profile Tinted Lens STT
|
|
|
100 | Pigtail | |
| T16-RT0F-1 |
20IN Slim Profile Tinted Lens STT W xTM06-3S
|
|
|
|||
| T16-RWT0-1 |
20IN Slim Profile Tinted Lens STTR
|
|
|
100 | Pigtail | |
| T16-RWTB-1 |
20IN Slim Profile Tinted Lns STTR .180 Bullets
|
|
|
|||
| T16-RWTF-1 |
20IN Slim Profile Tinted Lens STTR W xTM06-4S
|
|
|
