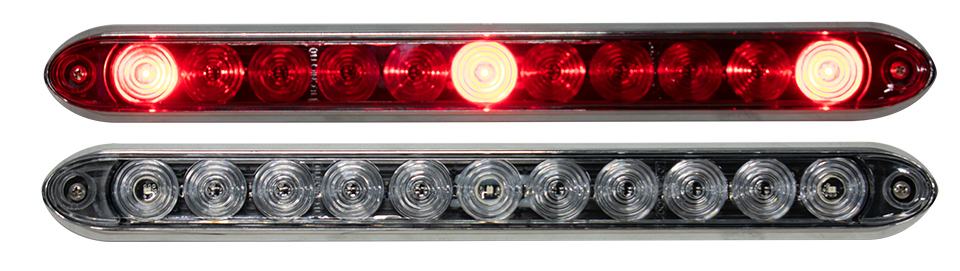

T12 Heavy Duty Over 80" ID Bar
T12 Heavy Duty Over 80" ID Bar
Technical Features
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- IP68 Rated - Dust and water proof with hermetic seal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- Reliable performance over 100,000 hours
- Can be mounted horizontal, vertical, or at any angle
- WIRE COLORS
White – Ground, Black – Positive
While narrow and thin, the T12 meets FMVSS requirements with a wide angle of bright illumination for maximum safety. Unlike similar lamps, ours is sonically welded for a lifetime of care-free service. Made with top-quality materials, urethane potting and durable polycarbonate construction.
| Dimensions |
|
| LEDs | 3 |
| Voltage | 9-14VDC |
| Current |
0.04A-0.07A - Red 0.04A-0.07A - Amber 0.325A-0.395A - Red/White Combo |
| Connectors | 9" wire |
| Mounting | Surface mount using (2) #8 screws (screw covers included) |
| LED Colors | Red • Amber • Red/White combo |
| Wire Colors |
White Wire red/amber stripe - Ground Black Wire - ID Bar |
| Ground | White/Color |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T10-0B00-1 |
T10 Black Trim Ring
|
100 | - | |||
| T10-0C00-1 |
T10 Chrome Trim Ring
|
100 | - | |||
| T10-0G00-1 |
T10 Neoprene gasket
|
100 | - | |||
| T12-AA00-1 |
Amber Low Profile ID Bar Amber Lens
|
 |
 |
100 | Pigtail | |
| T12-AC00-1 |
Amber Low Profile ID Bar Clear Lens
|
|
 |
100 | Pigtail | |
| T12-RC00-1 |
Red Low Profile ID Bar Clear Lens
|
 |
|
100 | Pigtail | |
| T12-RC0B-1 |
Red Low Profile ID Bar Clear Lens PigTail w/.180" Bullets
|
|
|
100 | Pigtail | |
| T12-RC0M-1 |
Red Low Profile ID Bar Clear Lens w/.156 Bullets
|
|
|
100 | 0.156" Bullets | |
| T12-RC0T-1 |
Red Low Profile ILD Bar Clear Lens .156" Barrels w/ grease
|
|
|
100 | 0.156" Barrels | |
| T12-RR00-1 |
Red Low Profile ID Bar Red Lens
|
|
 |
100 | Pigtail | |
| T12-RR0B-1 |
Red Low Profile ID Bar Red Lens PigTail w/.180" Bullets
|
|
|
100 | 0.180" Bullets | |
| T12-RR0G-1 |
Red Low Profile ID Bar Red Lens W/Ground Ring
|
|
|
100 | Pigtail w/ Ground Ring | |
| T12-RR0M-1 |
Red Low Profile ID Bar Red Lens w/.156 Bullets
|
|
|
100 | 0.180" Bullets | |

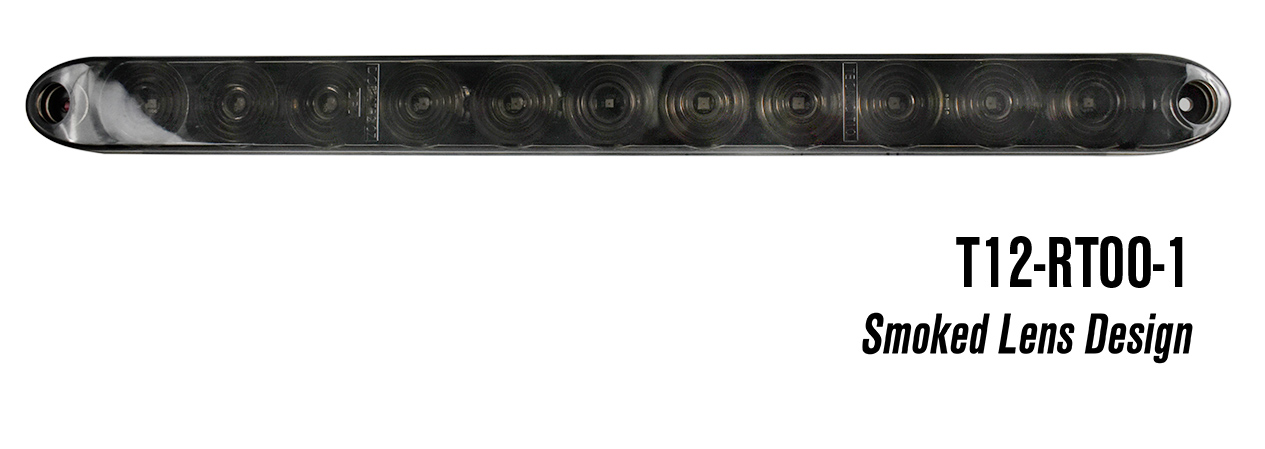

| T12-RT00-1 |
Red Low Profile ID Bar Tinted Lens
|
|
 |
100 | Pigtail | |
| T12-RT0B-1 |
Red Low Profile ID Bar Tinted Lns .180 Bullets
|
|
|
|||
| T12-RW00-1 |
Red ID Bar/Load Lamp Clear Lens
|
 |
|
100 | Pigtail | |
| T12-RW0B-1 |
Red ID Bar/Load Lamp Clear Lens w/ .180" Bullets
|
|
|
100 | 0.180" Bullets |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
