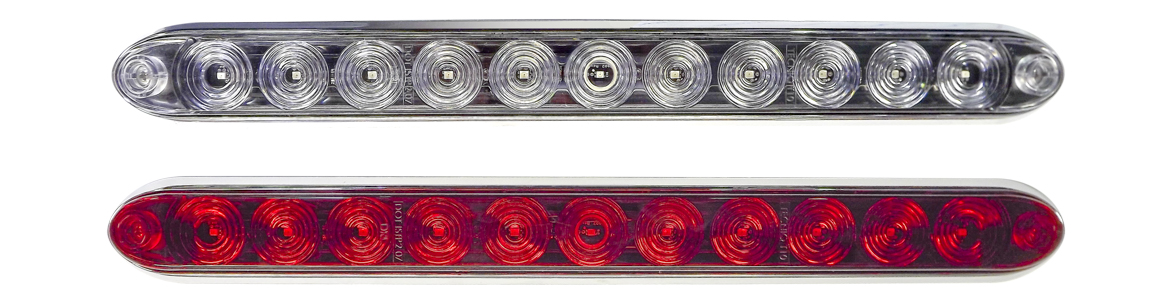

T11 Supplemental ID Bar/Third Brake
T11 Supplemental ID Bar/Third Brake
Technical Features
- Thin, low-profile 3rd Brake/ID Bar
- For use in addition to a T10 or T12
- Can be mounted horizontal, vertical or at an angle
- Slim design for use where space is a premium
- Reliable performance over 100,000 hours
- Waterproof, sealed body that is immune to shock and vibration
- Assembled in the USA with a Lifetime Warranty
- Third Brake or ID Bar for use on: Heavy duty trucks, Semi-trailers, Cargo and Utility trailers, Boat trailers, Work vehicles and any wide or narrow motor vehicle requiring quality DOT rated lighting
- WIRE COLORS
White/Brown – Ground, Red – High/Turn, Black – Low/Dim
This quality waterproof 15" lamp can be mounted where space is a premium. While narrow and thin, it meets FMVSS requirements with a wide angle of bright illumination for maximum safety. Unlike similar lamps, ours is sonically welded for a lifetime of care-free service.
Made with top-quality circuit board materials, urethane potting and durable polycarbonate construction that you've come to expect from TecNiq, the quality and value of this lamp are unsurpassed in the industry.

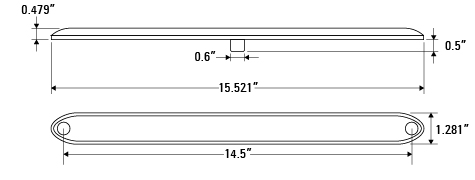

| Dimensions |
|
| LEDs | 11 |
| Voltage | 9-14VDC |
| Current | 0.17A-0.21A - Red |
| Connectors | 9" wire |
| Mounting | Surface mount using (2) #8 screws (screw covers included) |
| LED Colors | Red |
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - ID Bar |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T10-0B00-1 |
T10 Black Trim Ring
|
100 | - | |||
| T10-0C00-1 |
T10 Chrome Trim Ring
|
100 | - | |||
| T10-0G00-1 |
T10 Neoprene gasket
|
100 | - | |||
| T11-RC00-1 |
Red Low Profile Third Brake Clear Lens
|
 |
 |
100 | Pigtail | |
| T11-RC1B-1 |
Red Low Profile Third Brake Clear Lens W 20IN PgTL 180in Bullets
|
|
|
|||
| T11-RR00-1 |
Red Low Profile Third Brake Red Lens
|
|
 |
100 | Pigtail | |
| T11-RR1B-1 |
Red Low Profile Third Brake Red Lens W 20IN PgTL 180in Bullets
|
|
|
