T10 Stop Turn Tail
T10 Stop Turn Tail
Technical Features
- Meets all FMVSS 108 requirements for wide and narrow vehicles
- IP68 Rated - Dust and water proof with hermetic seal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
Excellent impact and UV resistance - Automotive exterior lighting grade polycarbonate
- Reliable performance over 100,000 hours
- Can be mounted horizontal, vertical, or at any angle
- WIRE COLORS
White – Ground, Red/Amber – High/Turn, Black – Low/Dim
This quality waterproof 15" lamp can be mounted in unique locations where space is a premium. While narrow and thin, it meets FMVSS requirements with a wide angle of bright illumination for maximum safety. Unlike similar lamps, ours is sonically welded for a lifetime of care free service. Made with top-quality circuit board materials, urethane potting and durable polycarbonate construction that you've come to expect from TecNiq, the quality and value of this lamp are unsurpassed in the industry.
| Dimensions |
|
| LEDs | 11 |
| Voltage | 9-14VDC |
| Current |
0.22A-0.29A - Stop (red lens) 0.17A-0.23A - Turn (amber lens) 0.11A-0.23A - Red/Clear 0.17A-0.23A - Amber/Clear 0.31A-0.38A - White 0.36A-0.48A - Smoked Lens |
| Connectors | 9" wire |
| Mounting | Surface mount using (2) #8 screws (screw covers included) |
| LED Colors | Red • Amber |
| Wire Colors |
White Wire red/amber stripe - Ground Red Wire - Stop/Turn Black Wire - Tail |
| Ground | White/Color |

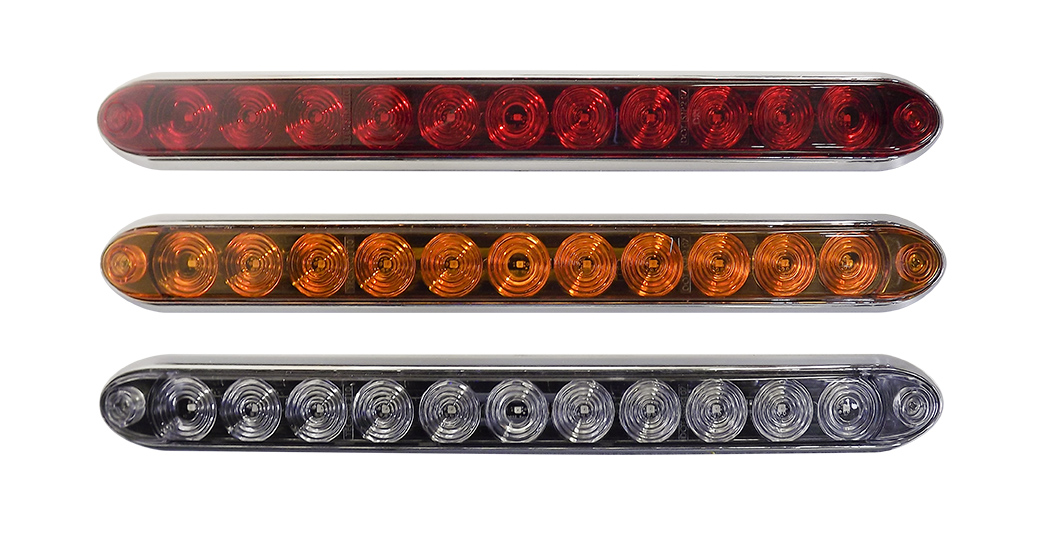

| Lens Colors | Red • Amber • Clear • Smoked |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T10-0B00-1 |
T10 Black Trim Ring
|
100 | - | |||
| T10-0C00-1 |
T10 Chrome Trim Ring
|
100 | - | |||
| T10-0G00-1 |
T10 Neoprene gasket
|
100 | - | |||
| T10-AA00-1 |
Amber Low Profile Turn Sidemarker Amber Lens
|
 |
 |
100 | Pigtail | |
| T10-AC00-1 |
Amber Low Profile Turn Sidemarker Clear Lens
|
|
 |
100 | Pigtail | |
| T10-AC0F-1 |
Amber Low Profile Turn Sidemarker Clear Lens w xTM06-3S Connector
|
|
|
100 | ||
| T10-RC00-1 |
Red Low Profile STT Clear Lens
|
 |
|
100 | Pigtail | |
| T10-RC0B-1 |
Red Low Profile STT Clear Lens w/.180" Bullets
|
|
|
100 | Pigtail | |
| T10-RC0F-1 |
Red Low Profile STT Clear Lens w xTM06-3S Connector
|
|
|
100 | ||
| T10-RC0M-1 |
Red Low Profile STT Clear Lens w/.156" Bullets
|
|
|
100 | 0.156" Bullets | |
| T10-RR00-1 |
Red Low Profile STT Red Lens
|
|
 |
100 | Pigtail | |
| T10-RR0B-1 |
Red Low Profile STT Red Lens Pigtail w/ 0.180" Bullets
|
|
|
100 | 0.180" Bullets | |
| T10-RR0M-1 |
Red Low Profile STT Red Lens w 156IN Bullets
|
|
|
100 | 0.156" Bullets | |
| T10-RR0P-1 |
Red Low Profile STT Red Lens w 8.5in pigtail wires
|
|
|
|||
| T10-RR0T-1 |
Red Low Profile STT Red Lens w/.156" Barrels w/ grease
|
|
|
100 | 0.156" Barrels | |

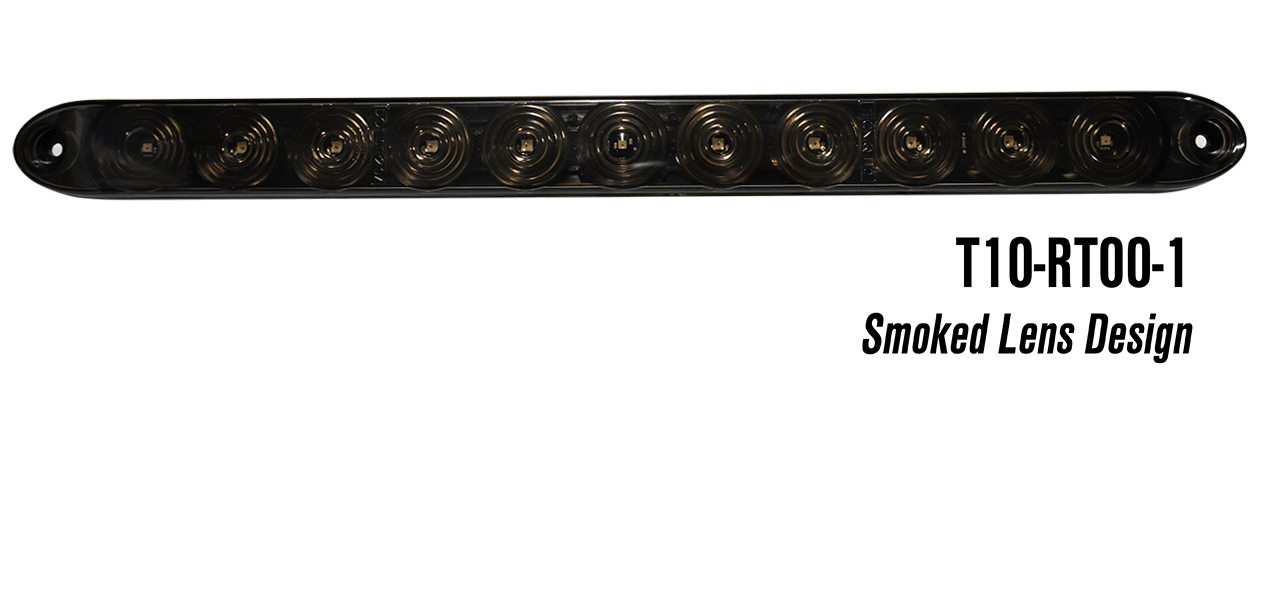

| T10-RT00-1 |
Red Low Profile STT Tinted Lens
|
|
 |
100 | Pigtail | |
| T10-RT0B-1 |
**Red 11LED Tinted Lens Low Profile STT SM 9IN Lead W/.180IN Bullets
|
|
|
|||
| T10-RT0M-1 |
Red Low Profile STT Tint Lns SM w 156 Bullets 9IN PgTl
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
