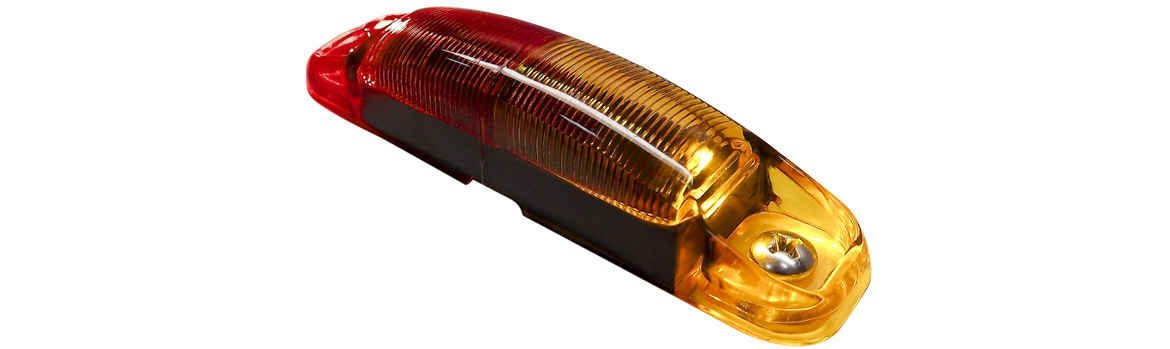

S91 Heavy Duty Bi-Color Fender Light
S91 Heavy Duty Bi-Color Fender Light
Technical Features
- New fender light with excellent durability

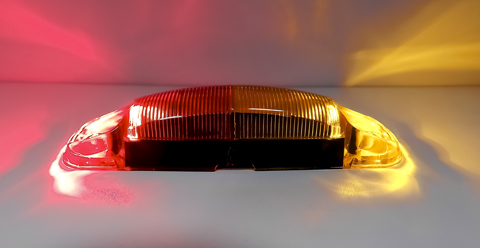

- Fully submersible bi-color red/amber LED fender light

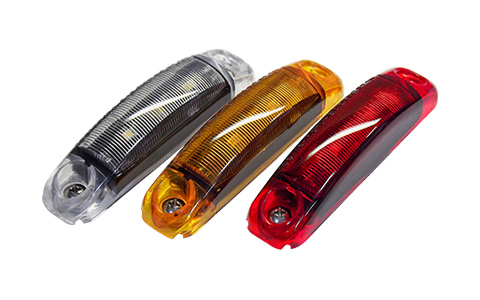

- Part of the S18 side marker family
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof
- Reliable performance over 100,000 hours
- Low amp draw easily mounts with just two screws
- WIRE COLORS
White – Ground, Black – Positive
The TecNiq S91 bi-color sidemarker is manufactured to withstand harsh environments, vigorous use and is submersible. With a low amp draw and surface mount, this light delivers savings, convenience and durability.

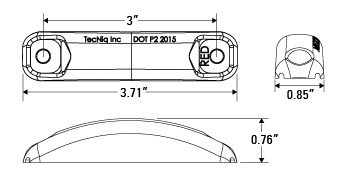

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current | 0.06A-0.07A |
| Connectors |
6" sheathed pigtail 11" sheathed pigtail |
| Mounting | Surface-mounted with 3" hole spacing |
| LED Colors | Red/Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S91-0B10-1 |
Fender light wire guide 7.5" black
|
100 | - | |||
| S91-AR00-1 |
Fender Light Amber Red Lens Pigtail
|
 |
 |
100 | Pigtail (6") | |
| S91-AR01-1 |
Fender Light Amber Red Lens Pigtail 11in wire
|
|
|
100 | Pigtail (11") | |
| S91-ARC0-1 |
Fender Light Clear Lens Pigtail
|
|
 |
100 | Pigtail (6") | |
| S91-ARC15-1 |
Bi-Color Fender Lt SM Amb Red 15in PigTl
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
