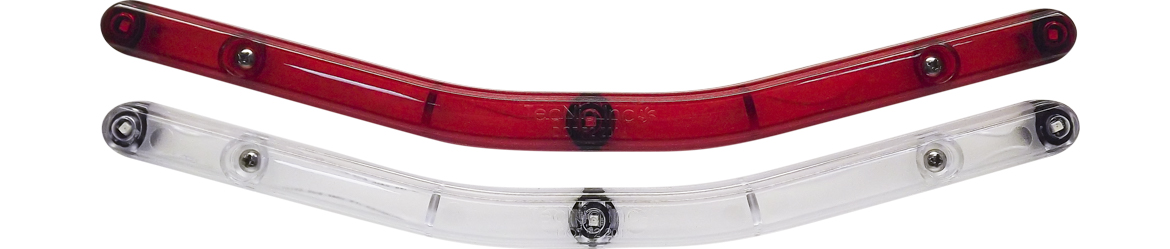

S52 V-Shaped Identification Bar for Marine Trailers
S52 V-Shaped Identification Bar for Marine Trailers
Technical Features
- Fully submersible LED Identification bar
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Durable impact resistant lens
- Available in colored or clear impact resistant lens
- IP68 rating while exceeding FMVSS 108 standards
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Black – Positive
The TecNiq S52 is built for the marine industry. Completely submersible this LED identification bar has been awarded an IP68 rating while exceeding FMVSS 108 standards. Available in clear or colored lens, our S52 model is made of high-quality materials, impact resistant, potted with TecSeal, and backed by our lifetime guarantee.

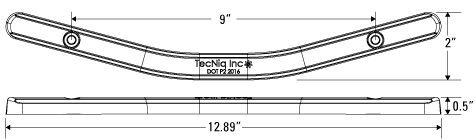

| Dimensions |
|
| LEDs | 3 |
| Voltage | 9-14VDC |
| Current | 0.07A-0.09A - Red |
| Connectors | 7" sheathed pigtail |
| Mounting | Surface-mounted with 9" hole spacing |
| LED Colors | Red |
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S52-RC00-1 |
Red ID Bar with Clear Lens V Shape Pigtail
|
 |
 |
25 | Sheathed Pigtail | |
| S52-RC10-1 |
Red ID Bar with Clear Lens V Shape W/58" Lead
|
|
|
25 | Pigtail (58") | |
| S52-RR00-1 |
Red ID Bar with Red Lens V Shape Pigtail
|
|
 |
25 | Sheathed Pigtail | |
| S52-RR0M-1 |
Red ID Bar with Red Lens V Shape PgTl .156IN Bullets
|
|
|
|||
| S52-RR10-1 |
Red ID Bar with Red Lens V Shape W/58" Lead
|
|
|
25 | Pigtail (58") |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
