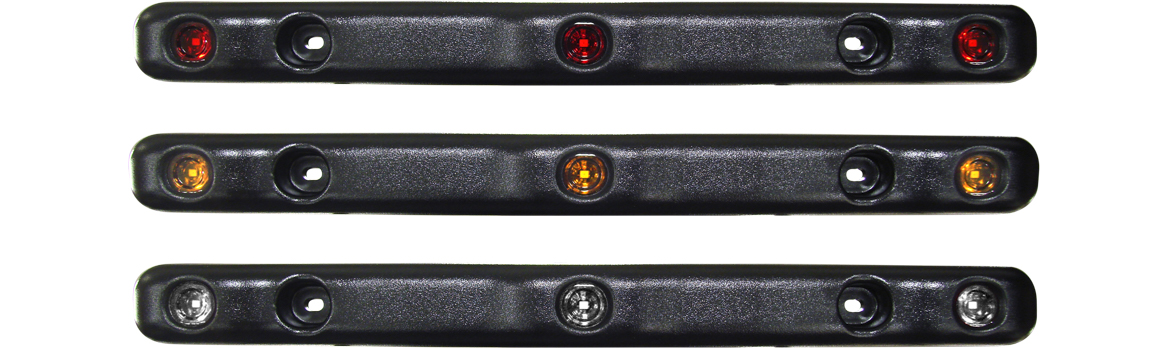

S50 Heavy Duty Identification Bar
S50 Heavy Duty Identification Bar
Technical Features
- Fully submersible over 80" ID bar
- Rugged impact resistant design
- Available in colored or clear impact resistant lens
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 rating while exceeding FMVSS 108 standards
- Reliable performance over 100,000 hours
- WIRE COLORS
White/Colored Stripe – Ground, Black – Positive
The TecNiq S50 features three high-brightness S21 side markers combine to make this wide-vehicle identification bar one of
the most rugged and cost effective solutions on the market. Exceeding specifications by several times, you can use this light to
indicate an over 80 vehicle or for whenever extra visibility is required.

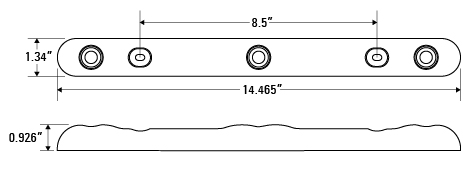

| Dimensions |
|
| LEDs | 3 |
| Voltage | 9-14VDC |
| Current | 0.18A-0.24A - Red/Amber |
| Connectors | 9" pigtail |
| Mounting | Surface-mounted with 8.5" hole spacing |
| LED Colors | Red • Amber |
| Wire Colors |
White/Color Wire - Ground Black Wire - 12VDC Power |
| Ground | White/Color |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S50-AAB0-1 |
S50 Tri-Bar Amber Amber Lens Black Body
|
 |
 |
25 | Sheathed Pigtail | |
| S50-ACB0-1 |
Tri-Bar Amber Clear Lens Black Body
|
|
 |
25 | Sheathed Pigtail | |
| S50-RCB0-1 |
Tri-Bar Red Clear Lens Black Body
|
 |
|
25 | Sheathed Pigtail | |
| S50-RRB0-1 |
S50 Tri-Bar Red Red Lens Black Body
|
|
 |
25 | Sheathed Pigtail | |
| S50-RRBG-1 |
S50 Tri-Bar Red Red Lens Black Body with #10 Ground Ring
|
|
|
25 | Sheathed Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
