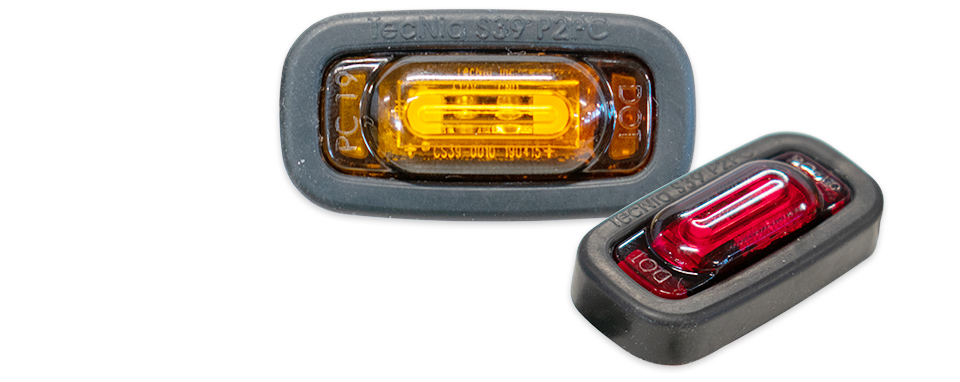

S39 Adhesive Mounted PC Rated Side Marker
S39 Adhesive Mounted PC Rated Side Marker
Technical Features
- FMVSS 108 - meets all standards for wide and narrow vehicles
- IP68 Rated - Dust and water proof with hermetic seal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Impact resistant lens
- UV Resistant automotive grade polycarbonate lens
- Rated LED Life - 50,000 hrs
- WIRE COLORS
Black – Ground, White – Positive
Our surface mount S39 is easily installed and meets FMVSS standards for wide and narrow vehicles. Built with quality materials and backed by our guarantee, you can expect the superior performance you have come to love with TecNiq products in this sidemarker.

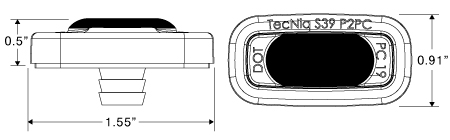

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current | 0.07A-0.09A - Amber/Red |
| Mounting | Surface Mounts with adhesive backing (0.5" wire hole) |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S39-AA00-1 |
S39 Amber Sidemarker Amber Len
|
 |
 |
100 | Pigtail (9") | |
| S39-RR00-1 |
S39 Red Sidemarker Red Lens
|
 |
 |
100 | Pigtail (9") |
