S38 Surface Mounted PC Rated Side Marker
S38 Surface Mounted PC Rated Side Marker
Technical Features
- New surface mounted mini clearance markers, offer a great appearance, easy installation, and can be purchased with available gasket.
- Easily mounts with two screws
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- PC/P2 output exceeds FMVSS 108 specifications
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Black – Positive

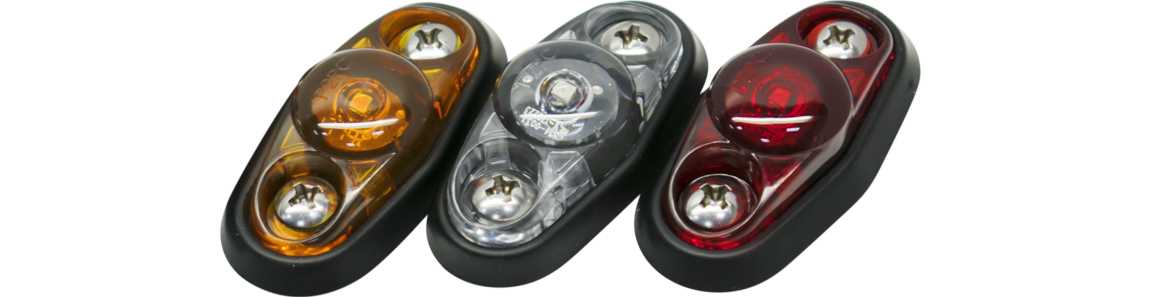

The TecNiq S38 Mini Surface Mount Light allows the benefit of self-grounding and is available in an assortment of colors. Engineered to exceed PC FMVSS specifications this light will save you time and money. Constructed using impact resistant lens, TecSeal potting and guaranteed for a lifetime of use.

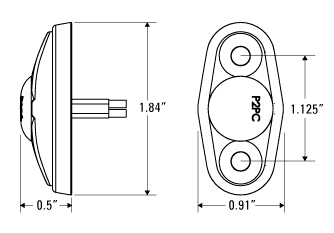

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored Lens 0.06A-0.08A - Red/Clear 0.03A-0.06A - Amber/Clear |
| Mounting | Surface Mounts with two screws spaced 1.125" apart |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S38-0G00-1 |
Overmolded Gasket
|
100 | - | |||
| S38-AA09-1 |
Amber Mini Surface PC Sidemarker Amber Lens 5" wire
|
 |
 |
100 | Sheathed Pigtail | |
| S38-AAG0-1 |
Amber Mini Surface PC Sidemarker Amber Lens 5" wire Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S38-AC09-1 |
Amber Mini Surface PC Sidemarker Clear Lens 5" wire
|
|
 |
100 | Sheathed Pigtail | |
| S38-ACG0-1 |
Amber Mini Surface PC Sidemarker Clear Lens 5" wire Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S38-BC09-1 |
Blue Mini Surface PC Sidemarker Clear Lens 5" wire
|
 |
|
100 | Sheathed Pigtail | |
| S38-GC09-1 |
Green Mini Surface Mount Accent Light Clear Lens
This part number is only available in quantities over 1000.
|
 |
|
100 | Sheathed Pigtail | |
| S38-RC09-1 |
Red Mini Surface PC Sidemarker Clear Lens 5" wire
|
 |
|
100 | Sheathed Pigtail | |
| S38-RCG0-1 |
Red Mini Surface PC Sidemarker Clear Lens 5" wire Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S38-RR09-1 |
Red Mini Surface PC Sidemarker Red Lens 5" wire
|
|
 |
100 | Sheathed Pigtail | |
| S38-RR09F-1 |
PC/P2 Sidemarker Lt SM Red Red Lns GM Rev Grnd Deutsch
|
|
|
|||
| S38-RRG0-1 |
Red Mini Surface PC Sidemarker Red Lens 5" wire Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S38-WC09-1 |
White Mini Surface PC Sidemarker Clear Lens 5" wire
|
 |
|
100 | Sheathed Pigtail |
