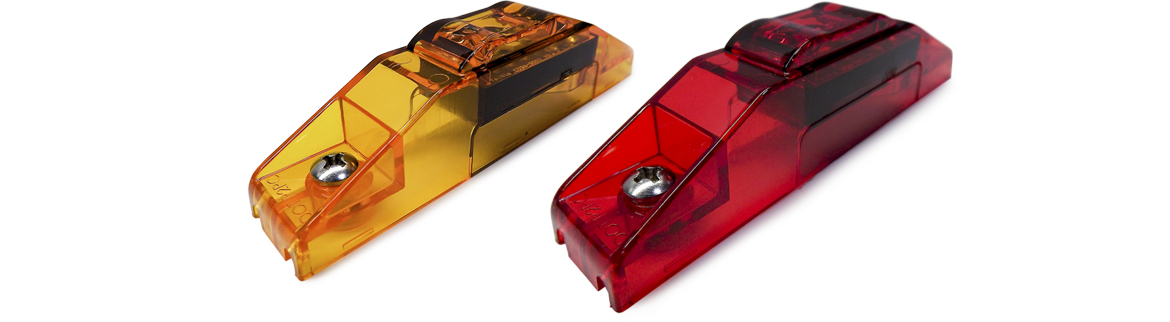

S36 PC/P2 Rated Side Markers
S36 PC/P2 Rated Side Markers
Technical Features
- Easy installation surface mount design
- P2/PC Rated side marker
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
The S36 was originally designed to slip into the top rail of a semi-trailer, this style light now wears many hats throughout the industry. This lamp employs our latest high-efficiency lens technology and dual LED design to meet the PC rating.

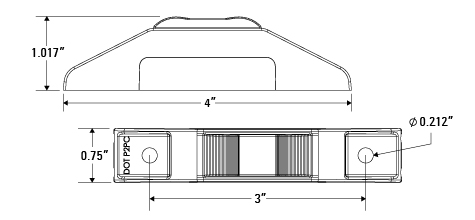

| Dimensions |
|
| LEDs |
1 - P2 Rated 2 - PC Rated |
| Voltage | 9-14VDC |
| Current | 0.05A-0.07A - Red/Amber |

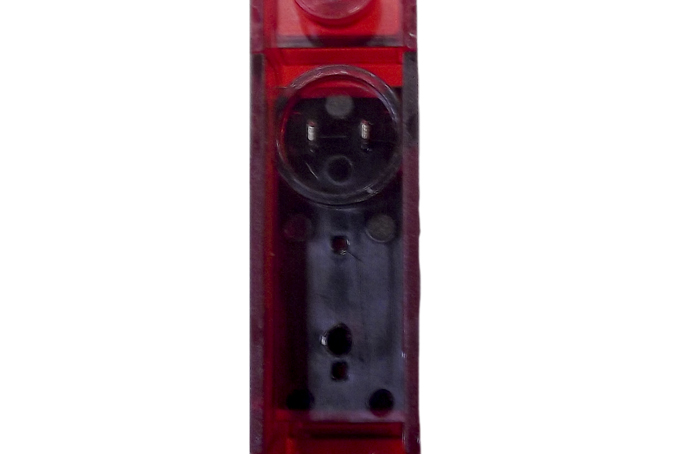

| Connectors |
S35 2-Pole Connector
|
| Mounting | Surface-mounted with 3" hole spacing (Must be mounted horizontally to meet spec) |
| LED Colors | Red • Amber |

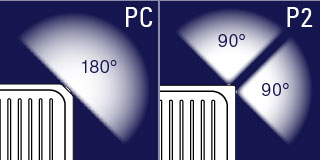

| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S36-AA10-1 |
S36 Amber P2 Sidemarker Amber Lens
|
 |
 |
100 | Two Pole (S99-3600-1) | |
| S36-AA20-1 |
S36 Amber PC Sidemarker Amber Lens
|
|
|
100 | Two Pole (S99-3600-1) | |
| S36-AC10-1 |
S36 Amber PC Sidemarker Clear Lens
|
|
 |
100 | Two Pole (S99-3600-1) | |
| S36-AC20-1 |
S36 Amber PC Sidemarker Clear Lens
|
|
|
100 | Two Pole (S99-3600-1) | |
| S36-RC10-1 |
S36 Red PC Sidemarker Clear Lens
|
 |
|
100 | Two Pole (S99-3600-1) | |
| S36-RC20-1 |
S36 Red PC Sidemarker Clear Lens
|
|
|
100 | Two Pole (S99-3600-1) | |
| S36-RR10-1 |
S36 Red P2 Sidemarker Red Lens
|
|
 |
100 | Two Pole (S99-3600-1) | |
| S36-RR20-1 |
S36 Red PC Sidemarker Red Lens
|
|
|
100 | Two Pole (S99-3600-1) | |
| S99-0035-1 |
S35 2-Pole Sure-Seal w/.180" Bullet and #6 GND Lug 90 deg.
|
Two Pole | ||||
| S99-0A35-1 |
S35 2-Pole Sure-Seal w/.180" Bullet and 1" #10 GND Lug
|
Two Pole | ||||
| S99-3600-1 |
2 Pole Connector W/Bullet Ends
|
Two Pole | ||||
| S99-3610-1 |
2 Pole Connector W/Bullet Ends and Grommet
|
Two Pole | ||||
| S99-3714-1 |
2 Pole Connector w 180 Bullet/Barrel and 14mm Grommet 12 inch
|
