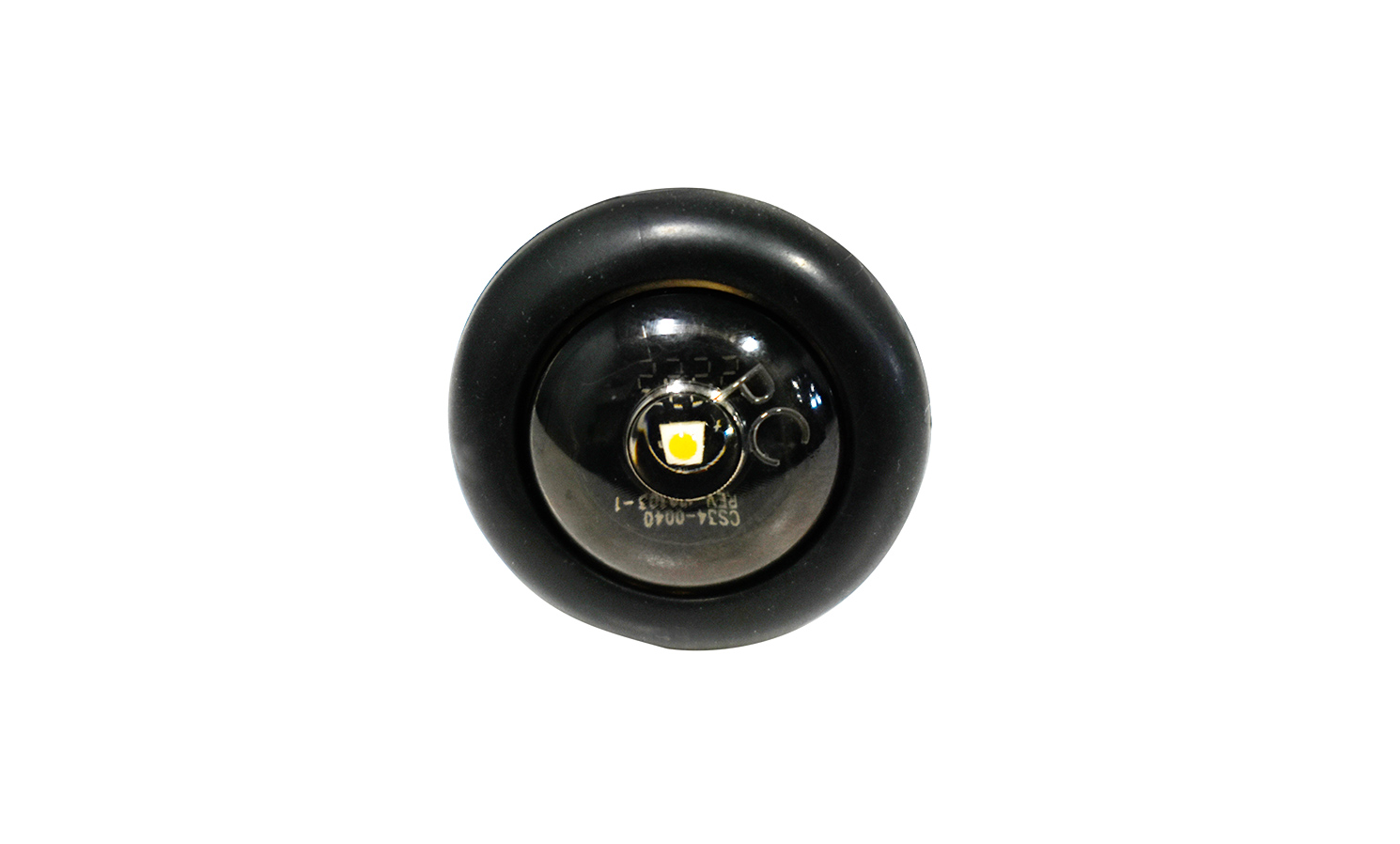

S34 PC/P2 Rated Miniature Side Marker
S34 PC/P2 Rated Miniature Side Marker
Technical Features
- Easily mounts into standard 3/4" hole at any orientation
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens

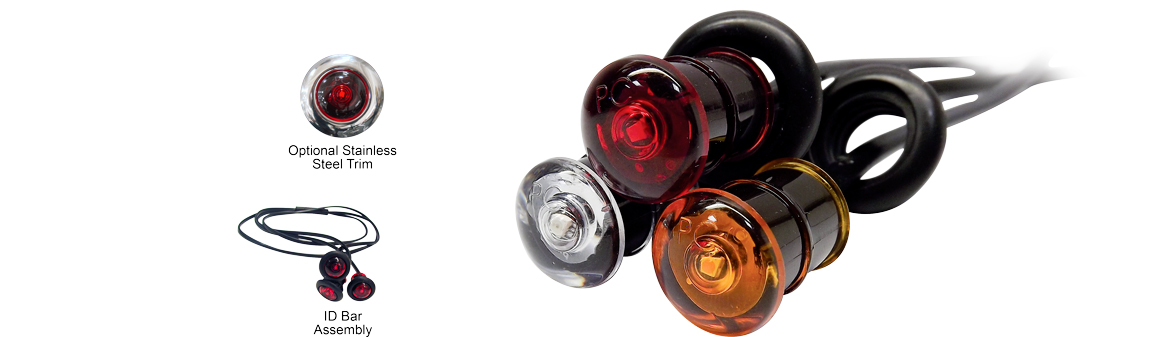

- 316 stainless steel trim ring available
- PC/P2 output exceeds FMVSS 108 specifications
- Reliable performance over 100,000 hours
- Available in color changing RGB option
- WIRE COLORS
White – Ground, Black – Positive - Includes chemical resistant TPE grommet
TecNiq was one of the first companies to produce a rotation-insensitive mini-PC lamp in this popular format. Working with a major manufacturer, our engineers needed to meet a significant thermal and optical design challenge when the most sophisticated competitors were failing. The world-leading efficient S34 marker lamp was born. The high impact polycarbonate
body filled with our unbelievably tough urethane, makes this light nearly hammer proof.

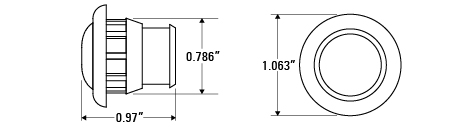

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored Lens 0.06A-0.08A - Red/Clear 0.03A-0.06A - Amber/Clear |
| Connectors | 9" pigtail |
| Mounting | Grommet Mounts in 3/4" hole |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S33-0G00-1 |
S33 Grommet Black
|
100 | - | |||
| S33-0G1A-1 |
Gasket w/O-Ring Thick Material High Durometer
|
100 | - | |||
| S33-0S00-1 |
S33/S34 Stainless Steel Trim Ring
|
100 | - | |||
| S34-3CHF-1 |
S34 RGB Light w Harness and xT04-4P
|
 |
 |
100 | Sheathed Pigtail | |
| S34-AA00-1 |
Amber Mini PC Sidemarker Amber Lens 8.5" Wire
|
 |
 |
100 | Sheathed Pigtail | |
| S34-AA09-1 |
Amber Mini PC Sidemarker Amber Lens Black Positive 8.5IN PgTl
|
|
|
100 | Sheathed Pigtail | |
| S34-AA0B-1 |
Amber Mini PC Sidemarker Amber Lens w/.180 Bullet 12" Wire
|
|
|
100 | 0.180" Bullets (12") | |
| S34-AA0F-1 |
Amber Mini PC Sidemarker Amber Lens xTM06-2S
|
|
|
100 | xTMO6-2S | |
| S34-AA14C-1 |
Amber PC sidemarker Amber Lens with 14inc 2C Wire and 2P C Connector
|
|
|
100 | 2P C Connector | |
| S34-AA17B-1 |
S34 Amber Mini PC Sidemarker Amber Lens with 11" Wire and Grommet and 0.180" Bullets
|
|
|
100 | 0.180" Bullets (11") | |
| S34-AA20-1 |
Amber Mini PC Sidemarker Amber Lens dual intensity pigtail 6" Wire
|
|
|
100 | Sheathed Pigtail | |
| S34-AA23-1 |
Amber Mini PC Sidemarker Amber Lens Dual intensity Pigtail 12" Wire
|
|
|
100 | Sheathed Pigtail | |
| S34-AA2B-1 |
Dual Intensity Amber Mini PC Sidemarker Amber Lens w/.180 Bullet 6" Wire
|
|
|
100 | 0.180" Bullets (6") | |
| S34-AA30C-1 |
Amber PC Sidemarker Amber Lens w/2 Pole Connector Thin Grommet
|
|
|
100 | 2 Pole | |
| S34-AA39P-1 |
Amber Mini PC Sidemarker Amber Lens Thin Grommet w/ 8.5" Wire
|
|
|
100 | ||
| S34-AA49B-1 |
Amber Mini PC Sidemarker Amber Lens w/.180 Bullet 40" wire
|
|
|
100 | Sheathed Pigtail | |
| S34-AA9A-1 |
Amber Mini PC Sidemarker Amber Lens w/.156 Bullet
|
|
|
100 | 0.156" Bullets | |
| S34-AA9B-1 |
Amber Mini PC Sidemarker Amber Lens w/.180 Bullet 12" reverse wire
|
|
|
100 | 0.180" Bullets | |
| S34-AA9F-1 |
Amber Mini PC Sidemarker Amber Lens 2P Deutsch Connector 8.5" wire
|
|
|
100 | Deutsch Conn (8.5") | |
| S34-AA9G-1 |
Amber Mini PC Sidemarker Amber Lens 11 inch wire with Ground Ring
|
|
|
100 | Pigtail (11")/Gnd Ring | |
| S34-AA9H-1 |
Amber Mini PC Sidemarker Amber Lens 18" Wire Black Positive
|
|
|
100 | Sheathed Pigtail (18") | |
| S34-AA9HM-1 |
Amber Mini PC Sidemarker Amber Lens 18" Wire Lead W/.156 Bullets Black Positive
|
|
|
100 | 0.156" Bullets (18") | |
| S34-AA9L-1 |
Amber Mini PC Sidemarker Amber Lens 11 inch wire
|
|
|
100 | Sheathed Pigtail (11") | |
| S34-AA9M-1 |
Amber Mini PC SM Amber Lens Black Positive Wire w/.156" Bullets 8.5" Wire
|
|
|
100 | 0.156" Bullets | |
| S34-AA9N-1 |
Amber Mini PC Amber Lens Black Positive Wire w .156" Barrels 8.5" Wire
|
|
|
100 | 0.156" Barrels | |
| S34-AA9NG-1 |
PC/P2 Mini Sidemarker Lt GM Amb Rev Grnd PigTl 156 Barrel W/Grease
|
|
|
|||
| S34-AA9SA-1 |
Amber Mini PC Sidemarker Amber Lens 12in w 2P Amp
|
|
|
100 | ||
| S34-AA9U-1 |
Amber Mini PC SideMarker Amber Lens .156 Barrel w/ Shroud
|
|
|
100 | 0.156" Barrels | |
| S34-AAE05-1 |
Amber Mini PC SM Amber Lens 5' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-AAE20-1 |
Amber Mini PC SM Amber Lens 20' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-AAE40-1 |
Amber Mini PC SM Amber Lens 40' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-AAG9B-1 |
Amb Mini PC SM Amb Lens Grommeted .180 Bullet 12IN wire
|
|
|
|||
| S34-AAN9-1 |
Amber Mini PC Sidemarker Amber Lens W/ NO sheath NO TIN w/8.5" wire
|
|
|
100 | Pigtail (9") | |
| S34-AAS9D-1 |
Amber 1LED Amber Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn an
|
|
|
100 | ||
| S34-AC00-1 |
Amber Mini PC Sidemarker Clear Lens with 12' Wire
|
|
|
100 | Sheathed Pigtail | |
| S34-AC09-1 |
Amber Mini PC Sidemarker Clear Lens Black Positive 12IN PgTl
|
|
|
100 | Sheathed Pigtail | |
| S34-AC0F-1 |
Amber Mini PC Sidemarker Clear Lens xTM06-2S Connector
|
|
|
|||
| S34-AC0U-1 |
Amber Mini PC Sidemarker Clear Lens w 2P Conn
|
|
|
100 | ||
| S34-AC9B-1 |
Amber Mini PC Sidemarker Clear Lens w/.180 Bullet 12" wire
|
|
|
100 | 0.180" Bullets | |
| S34-AC9D-1 |
Amber 1LED Clear Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn
|
|
|
100 | ||
| S34-AC9H-1 |
Amber Mini PC Sidemarker Clear Lens 18` Black Positive wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S34-ACS9D-1 |
Amber 1LED Clear Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn an
|
|
|
100 | ||
| S34-AT09-1 |
Amber Mini PC Sidemarker Tinted Lens Black Positive 12" wire
|
|
 |
100 | ||
| S34-AT9B-1 |
Amber Mini PC Sidemarker Tinted Lens Reverse Polarity 8 inch wire w/ .180" Bullets
|
|
|
|||
| S34-AT9U-1 |
Amber Mini PC SideMarker Tinted Lens 0.156 Barrel W/Shroud
|
|
|
|||
| S34-BC00-1 |
Blue Accent Light Clear Lens w/8.5" wire
|
 |
|
100 | Sheathed Pigtail | |
| S34-BC0M-1 |
Blue Mini PC Sidemarker Clear Lens w/.156" Bullets
|
|
|
100 | 0.156" Bullets | |
| S34-GC09-1 |
Green Mini PC Sidemarker Clear Lens White Gnd 8in
|
 |
|
100 | ||
| S34-GC0M-1 |
Green Mini PC Sidemarker Clear Lens w/.156" Bullets
|
|
|
100 | 0.156" Bullets | |
| S34-RC00-1 |
Red Mini PC Sidemarker Clear Lens w/8.5" wire
|
 |
|
100 | Sheathed Pigtail | |
| S34-RC09-1 |
Red Mini PC Sidemarker Clear Lens Black Positive 12IN PigTl
|
|
|
100 | Sheathed Pigtail | |
| S34-RC0F-1 |
Red Mini PC Sidemarker Clear Lens xTM06-2S Connector
|
|
|
100 | xTM06-2S | |
| S34-RC9A-1 |
Red Mini PC Sidemarker Clear Lens 12` Wire with .156` Bullets
|
|
|
100 | 0.156" Bullets | |
| S34-RC9B-1 |
Red Mini PC Sidemarker Clear Lens w/.180 Bullet w/12" wire
|
|
|
100 | 0.180" Bullets | |
| S34-RC9D-1 |
Red 1LED Clear Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn
|
|
|
100 | ||
| S34-RC9H-1 |
Red Mini PC Sidemarker Clear Lens 18` Black Positive wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S34-RCS9D-1 |
Red 1LED Clear Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn and
|
|
|
100 | ||
| S34-RR00-1 |
Red Mini PC Sidemarker Red Lens w/8.5" wire
|
|
 |
100 | Sheathed Pigtail | |
| S34-RR09-1 |
Red Mini PC Sidemarker Red Lens Black Positive 8.5IN PgTl
|
|
|
100 | Sheathed Pigtail | |
| S34-RR0B-1 |
Red Mini PC Sidemarker Red Lens w/.180 Bullet 12" wire
|
|
|
100 | 0.180" Bullets (12") | |
| S34-RR0C-1 |
Red PC sidemarker Red Lens w/2 Pole Connector
|
|
|
100 | 2 Pole | |
| S34-RR0D-1 |
Red Mini PC Sidemarker Red Lens w/8.5" wire and DTM04-2P
|
|
|
100 | ||
| S34-RR0F-1 |
Red Mini PC Sidemarker Red Lens xTM06-2S
|
|
|
100 | xTMO6-2S | |
| S34-RR20-1 |
Red Mini PC Sidemarker Red Lens dual intensity pigtail 6" wire
|
|
|
100 | Sheathed Pigtail | |
| S34-RR29A-1 |
Red Mini PC Sidemarker Red Lens Dual Intensity 12" Wire w/ 3 Pin Amp Connector
|
|
|
100 | Sheathed Pigtail | |
| S34-RR2B-1 |
Dual Intensity Red Mini PC Sidemarker Red Lens w/.180 Bullet 6" Wire
|
|
|
100 | 0.180" Bullets (6") | |
| S34-RR2F-1 |
PC/P2 Mini Sidemarker Lt GM Red Dual Int Deutsch
|
|
|
|||
| S34-RR30-1 |
Red Mini PC ID Bar Assembly Red Lens 12" Wire lead
|
|
|
100 | Sheathed Pigtail (12") | |
| S34-RR30C-1 |
Red PC Sidemarker Red Lens w/2 Pole Connector Thin Grommet
|
|
|
100 | 2 Pole | |
| S34-RR31-1 |
Red Mini PC ID Bar Assembly Red Lens 48" Wire Lead
|
|
|
100 | Sheathed Pigtail (48") | |
| S34-RR39P-1 |
Red Mini PC Sidemarker Red Lens Thin Grommet w/ 8.5" Wire
|
|
|
100 | ||
| S34-RR3F-1 |
Red Mini PC ID Bar Assembly Red Lens 12" Wire 2P Deutsch
|
|
|
100 | Deutsch Conn (12") | |
| S34-RR49B-1 |
Red Mini PC Sidemarker Red Lens w/.180 Bullet 40" wire
|
|
|
100 | Sheathed Pigtail (40") | |
| S34-RR5B-1 |
Red Mini PC ID Bar Assembly Red Lens 12" Wire lead w/ .180 bullets
|
|
|
|||
| S34-RR9B-1 |
Red Mini PC Sidemarker Red Lens w/.180 Bullet 12" Black Positive Wire
|
|
|
100 | 0.180" Bullets | |
| S34-RR9F-1 |
Red Mini PC Sidemarker Red Lens w 2P Deutsch Conn.
|
|
|
100 | Deutsch Conn (8.5") | |
| S34-RR9G-1 |
Red Mini PC Sidemarker Red Lens 11 inch wire with Ground Ring
|
|
|
100 | Pigtail (11")/Gnd Ring | |
| S34-RR9H-1 |
Red Mini PC Sidemarker Red Lens 18" Black Positive wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S34-RR9L-1 |
Red Mini PC Sidemarker Red Lens 11 inch wire
|
|
|
100 | Pigtail (11") | |
| S34-RR9M-1 |
Red Mini PC SM Red Lens Black Positive Wire w/.156" Bullets 8.5"wire
|
|
|
100 | 0.156" Bullets | |
| S34-RR9N-1 |
Red Mini PC Red Lens Black Positive Wire w .156" Barrels 8.5" wire
|
|
|
100 | 0.156" Barrels | |
| S34-RR9NG-1 |
PC/P2 Mini Sidemarker Lt GM Red Rev Grnd PigTl 156 Barrel W/Grease
|
|
|
|||
| S34-RR9SA-1 |
Red Mini PC Sidemarker Red Lens 12in w 2P Amp
|
|
|
100 | ||
| S34-RR9U-1 |
Red Mini PC SideMarker Red Lens .156 Barrel w/ Shroud
|
|
|
100 | 0.156" Barrels | |
| S34-RRE05-1 |
Red Mini PC SM Red Lens 5' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-RRE20-1 |
Red Mini PC SM Red Lens 20' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-RRE40-1 |
Red Mini PC SM Red Lens 40' Wire
|
|
|
100 | 0.180" Bullets | |
| S34-RRG9B-1 |
Red Mini PC SM Red Lens Grommeted .180 Bullet 12" wire
|
|
|
|||
| S34-RRN9-1 |
Red Mini PC Sidemarker Red Lens W/ No Sheath NO TIN 8.5" wire
|
|
|
100 | Pigtail (9") | |
| S34-RRS9D-1 |
Red 1LED Red Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn and SS
|
|
|
100 | ||
| S34-RT00-1 |
Red Mini PC Sidemarker Tinted Lens w/8.5" wire
|
|
|
|||
| S34-RT09-1 |
Red Mini PC Sidemarker Tinted Lens Black Positive 12"wire
|
|
|
100 | Pigtail (9") | |
| S34-RT0B-1 |
Red Mini PC Sidemarker Tinted Lens .180 Bullets
|
|
|
|||
| S34-RT9B-1 |
PC/P2 Red LED Tinted Rev Grnd .180 Bullet
|
|
|
|||
| S34-RT9U-1 |
Red Mini PC SideMarker Tinted Lens 0.156 Barrel W/Shroud
|
|
|
|||
| S34-WC00-1 |
3/4" Round Mini White Indicator Light 8.5" wire
|
 |
|
100 | Sheathed Pigtail | |
| S34-WC09-1 |
3/4" Round Mini White Indicator Light Black Positive Wire
|
|
|
100 | Sheathed Pigtail | |
| S34-WC0B-1 |
3/4" Round Mini White Indicator Light W/.180 Bullets
|
|
|
100 | 0.180" Bullets | |
| S34-WC0M-1 |
3/4" Round Mini White Indicator Light w/ .156" Bullets 8.5" wire
|
|
|
100 | 0.156" Bullets | |
| S34-WC9D-1 |
White 1LED Clear Lens 3/4IN Round PC/P2 Side Marker GM Black Positive 9IN Lead W/xTM04-2P Conn
|
|
|
100 | ||
| S34-WCS9D-1 |
White 1LED Clear Lens 3/4IN Round PC/P2 Indicator GM Black Positive 9IN Lead W/xTM04-2P Conn and
|
|
|
100 | ||
| S34-WT00-1 |
White 1LED Tinted Lens 3/4IN Round PC/P2 Indicator GM 9IN Lead
|
|
|
