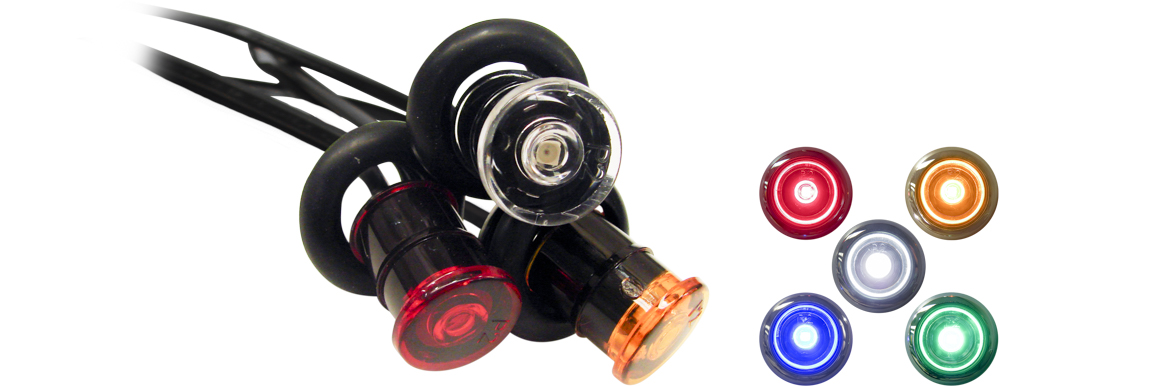

S33 P2 Rated Miniature Side Marker
S33 P2 Rated Miniature Side Marker
Technical Features
- Easily mounts into standard 3/4" hole
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof
- Light output exceeds FMVSS 108 specifications
- 316 stainless steel trim ring available
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Black – Positive - Includes chemical resistant TPE grommet
High impact polycarbonate body, filled with TecNiq's unbelievably tough urethane, makes this light nearly hammer proof. Mounts by drilling a 3/4 inch hole and pressing into a grommet. A single high-output, next-generation LED typically exceeds specifications by several times. TecNiq also provides this same light with white, green and blue LEDs in a clear lens. Useful
for indicators, accent lighting and area lighting in tough environments. As always, TecNiq solutions utilize the best quality components, and a simplified design, to provide our customers with a top quality product at a fantastic price.

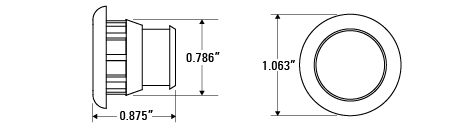

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.05A-0.07A - Red/Amber 0.02A-0.03A - Green/Blue 0.06A-0.08A - White |
| Connectors | 9" pigtail |
| Mounting | Grommet Mounts in 3/4" hole |
| LED Colors | Red • Amber • Green • Blue • White |
| Angle |
|
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S33-0G00-1 |
S33 Grommet Black
|
100 | - | |||
| S33-0G1A-1 |
Gasket w/O-Ring Thick Material High Durometer
|
100 | - | |||
| S33-0S00-1 |
S33/S34 Stainless Steel Trim Ring
|
100 | - | |||
| S33-AA00-1 |
3/4" Mini P2 Amber Sidemarker Amber Lens 12" Wire
|
 |
 |
100 | Sheathed Pigtail | |
| S33-AA09-1 |
3/4` Mini P2 Amber Sidemarker Amber Lens, Black Positive 12" Wire
|
|
|
100 | Sheathed Pigtail | |
| S33-AA9B-1 |
3/4" Mini P2 Amber Sidemarker Amber Lens w/.180 Bullet & 12" Wire
|
|
|
100 | 0.180" Bullets | |
| S33-AA9H-1 |
Amber Mini P2 Sidemarker Amber Lens Black Positive 18" Wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S33-AAFB-1 |
3/4" Mini P2 Amber Sidemarker Amber Lens w/.180 Bullets & 18" Wire
|
|
|
100 | 0.180" Bullets (18") | |
| S33-AC00-1 |
3/4" Mini P2 Amber Sidemarker Clear Lens 12" Wire
|
|
 |
100 | Sheathed Pigtail | |
| S33-AC09-1 |
3/4` Mini P2 Amber Sidemarker Clear Lens Black Positive, 12" Wire
|
|
|
100 | Sheathed Pigtail | |
| S33-AC9B-1 |
3/4` Mini P2 Amber Sidemarker Clear Lens w/.180 Bullet & 12" Wire
|
|
|
100 | 0.180" Bullets | |
| S33-AC9H-1 |
Amber Mini P2 Sidemarker Amber Lens Black Positive, 18" Wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S33-ACFB-1 |
3/4" Mini P2 Amber Sidemarker Clear Lens W/.180 Bullets & 18" Wire
|
|
|
100 | 0.180" Bullets (18") | |
| S33-BC00-1 |
3/4" Round Low Profile Blue Indicator 8.5" Wire
|
 |
|
100 | Sheathed Pigtail | |
| S33-GC00-1 |
3/4" Round Low Profile Green Indicator 12" Wire
|
 |
|
100 | Sheathed Pigtail | |
| S33-RC00-1 |
3/4" Mini P2 Red Sidemarker Clear Lens 12" Wire
|
 |
|
100 | Sheathed Pigtail | |
| S33-RC09-1 |
3/4` Mini P2 Red Sidemarker Clear Lens Black Positive 12" Wire
|
|
|
100 | Sheathed Pigtail | |
| S33-RC9B-1 |
3/4` Mini P2 Red Sidemarker Clear Lens W/.180 Bullets & 12" Wire
|
|
|
100 | 0.180" Bullets | |
| S33-RC9H-1 |
Red P2 Sidemarker Clear Lens Black Positive 18" Wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S33-RCFB-1 |
3/4" Mini P2 Red Sidemarker Clear Lens W/.180 Bullets & 18" Wire
|
|
|
100 | 0.180" Bullets (18") | |
| S33-RR00-1 |
3/4" Mini P2 Red Sidemarker Red Lens 12" Wire
|
|
 |
100 | Sheathed Pigtail | |
| S33-RR09-1 |
3/4` Mini P2 Red Sidemarker Red Lens Black Positive 12" Wire
|
|
|
100 | Sheathed Pigtail | |
| S33-RR9B-1 |
3/4" Mini P2 Red Sidemarker Red Lens W/.180 Bullet & 12" Wire
|
|
|
100 | 0.180" Bullets | |
| S33-RR9H-1 |
Red P2 Sidemarker Red Lens Black Positive 18" Wire
|
|
|
100 | Sheathed Pigtail (18") | |
| S33-RRFB-1 |
3/4" Mini P2 Red Sidemarker Red Lens W/.180 Bullets & 18" Wire
|
|
|
100 | 0.180" Bullets (18") | |
| S33-WC00-1 |
3/4" Round Low Profile White Indicator 12" Wire
|
 |
|
100 | Sheathed Pigtail | |
| S33-WC0B-1 |
3/4" Round Low Profile White Indicator W/.180 Bullets
|
|
|
100 | 0.180" Bullets | |
| S33-WC0F-1 |
3/4" Round Low Profile White Indicator 12" Wire w/ xTM04-2P
|
|
|
100 | ||
| S33-WC0V-1 |
3/4" Round Low Profile White Indicator with Butt connector 12" Wire
|
|
|
100 | Butt Connector (12") |
