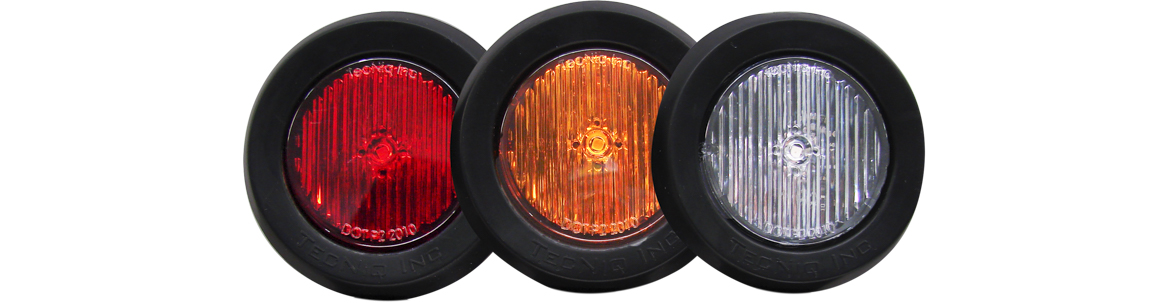

S30 2" Round, Low-Profile Side Marker
S30 2" Round, Low-Profile Side Marker
Technical Features
- Grommet mounted industry standard size
- Standard non-polarized connector
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- WIRE COLORS
Bidirectional positive and ground
Ultra-efficient lenses, combined with our unique materials and powerful next generation LEDs, make this P2-rated lamp an ideal, high-performance, high value lighting solution.

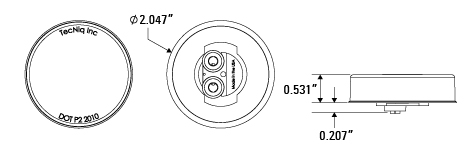

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current |
0.06A-0.08A - Colored lens 0.04A-0.07A - Clear Lens |
| Connectors |
PL2 -Non Polarized Connector
|
| Mounting | Grommet-mounted into standard hole |
| LED Colors | Red • Amber |
| Wire Colors |
White Wire - Interchangeable Black Wire - Interchangeable |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S30-0G00-1 |

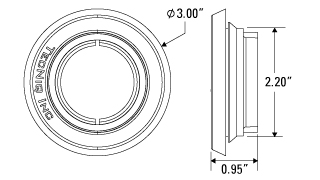

2" Round Sidemarker Grommet
|
125 | - | |||
| S30-AA00-1 |
2IN Round Amber Sidemarker Amber Lens
|
 |
 |
125 | Fem 2 Pole (S99-0010-1) | |
| S30-AA0F-1 |
2IN Rnd Amb Sidemarker Amb Lens w xT06-2S Conn
|
|
|
125 | xT06-6S | |
| S30-AA0P-1 |
2" Round Amber Sidemarker Amber Lens w/ Pig Tail
|
|
|
125 | Pigtail | |
| S30-AC00-1 |
2IN Round Amber Sidemarker Clear Lens
|
|
 |
125 | Fem 2 Pole (S99-0010-1) | |
| S30-AC0F-1 |
2" Round Amber Sidemarker Clear Lens w xT06-2S Connector
|
|
|
125 | xT06-6S | |
| S30-AC0P-1 |
2" Round Amber Sidemarker Clear Lens w/ Pig Tail
|
|
|
125 | Pigtail | |
| S30-AT00-1 |
2IN Round Amb Sidemarker Tinted Lens
|
|
 |
|||
| S30-RC00-1 |
2IN Round Red Sidemarker Clear Lens
|
 |
|
125 | Fem 2 Pole (S99-0010-1) | |
| S30-RC0F-1 |
2" Round Red Sidemarker Red Lens w xT06-2S Connector
|
|
|
125 | xT06-6S | |
| S30-RC0P-1 |
2" Round Red Sidemarker Clear Lens w/ Pig Tail
|
|
|
125 | Pigtail | |
| S30-RR00-1 |
2IN Round Red Sidemarker Red Lens
|
|
 |
125 | Fem 2 Pole (S99-0010-1) | |
| S30-RR0P-1 |
2" Round Red Sidemarker Red Lens w/ Pig Tail
|
|
|
125 | Pigtail | |
| S30-RT00-1 |
2IN Round Red Sidemarker Tinted Lens
|
|
|
|||
| S30-WC00-1 |
2" Round White Area Light Clear Lens
|
 |
|
125 | Fem 2 Pole (S99-0010-1) | |
| S99-0010-1 |
T12-6IN 2-Pole .156IN Bullet with #6 GND Lug
|
Male 2 Pole | ||||
| S99-0016-1 |
T12- 16IN 2-Pole W/#6 Ground Lug
|
Two Pole | ||||
| S99-0018-1 |
T12- 12IN 2-Pole Pigtail Conn
|
Two Pole |
