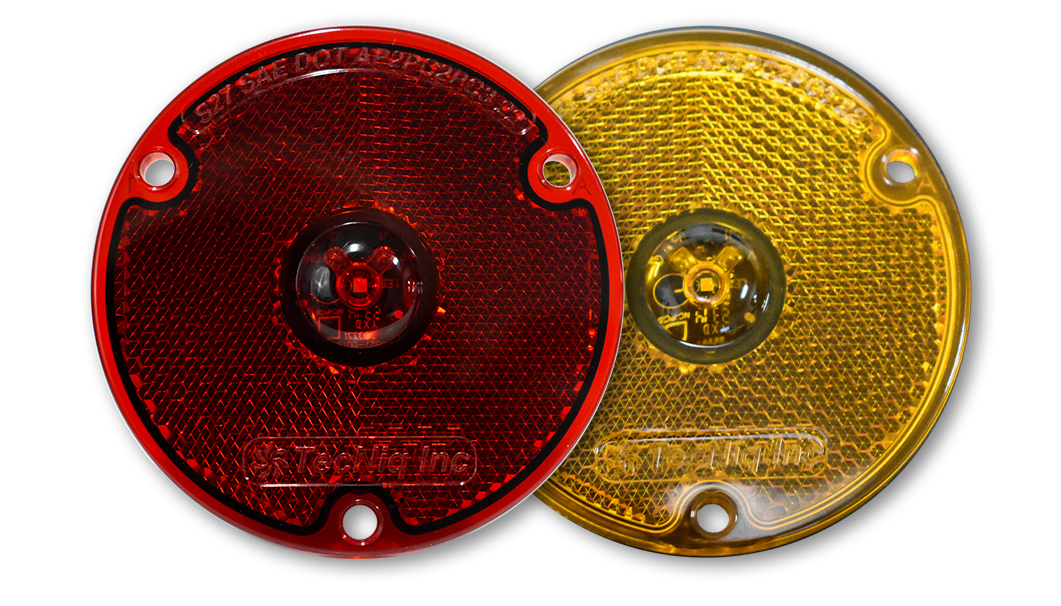

S27 3" Round Side Marker w/ Reflector
S27 3" Round Side Marker w/ Reflector
Technical Features
- PC rated side marker with 2 Pin Amp Connector
- Available with Red or Amber lens
- Designed for 100,000 hours of performance
- FMVSS 108 compliant & fully sealed
The All New S27 PC Rated, Retroreflector Side Marker is the newest side marker light from TecNiq. The S27 features (1) high quality white phosphor LED, with red or amber lenses available. This retroreflector light produces 40 lumens, and is FMVSS 108 compliant. S27s are a surface mount side marker with a 2 pin Amp connector.
| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.08A @ 12V |
| Connectors | 2-pin Amp Connector |
| Mounting | Surface-mounted with 3 - #8 Screws. (must be mounted with logo at bottom) |
| LED Colors | Red • Amber |
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S27-AA0A-1 |
3in Round Amber SM Reflector w 2P Amp
|
 |
 |
|||
| S27-AA0P-1 |
3 in Round Amber SM Reflector w 5" Pigtails
|
|
|
|||
| S27-RR0A-1 |
3in Round Red SM Reflector w 2P Amp
|
 |
 |
|||
| S27-RR0P-1 |
3 in Round Red SM Reflector w 5" Pigtails
|
|
|
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
