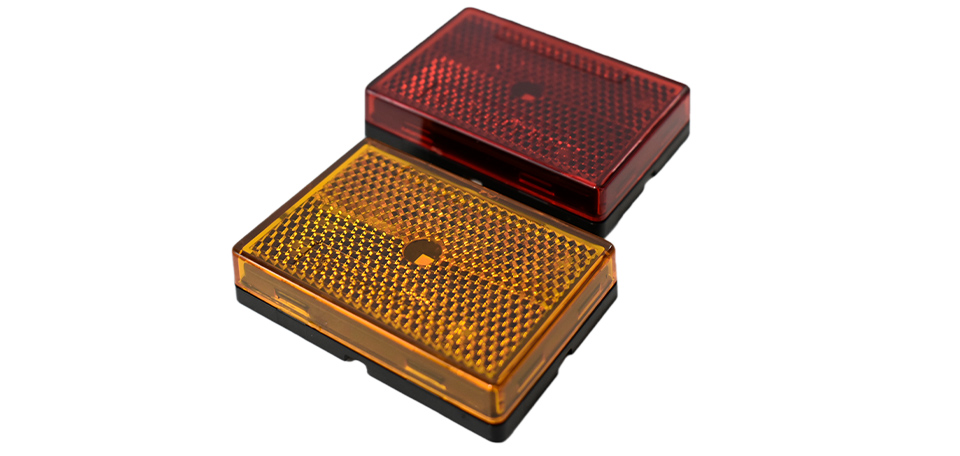

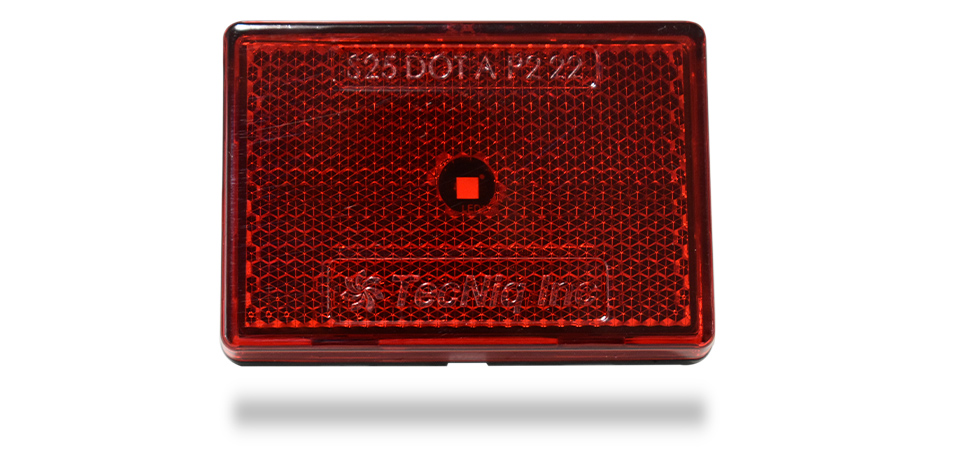

S25 Retro Reflector Side Marker Light
S25 Retro Reflector Side Marker Light
Technical Features
- All New rectangular "Retro" reflector side marker
- Water resistant design with 100% potted circuit board
- Meets or exceeds FMVSS 108 standards
- Available in Amber or Red, with White LED
- Connects with an 11" Pigtail, or 0.156" Bullets
- WIRE COLORS
White – Ground, Black – Positive
The ALL NEW S25 "Retro Reflector" Side Marker from TecNiq is exactly the upgrade your RV, Trailer, or older model Work Truck has been waiting for. Designed to replace existing incandescent lighting, the S25 provides a 100% sealed circuit board light that meets or exceeds FMVS 108 standards for wide or narrow vehicles. Keep the look, but upgrade the illumination with the S25 from TecNiq.

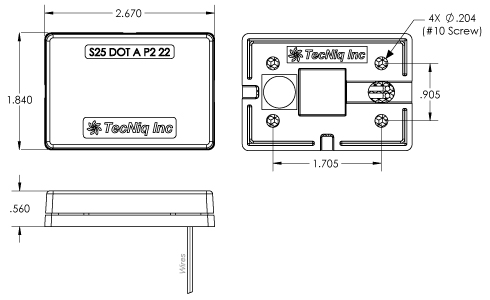

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.08A @ 12V |

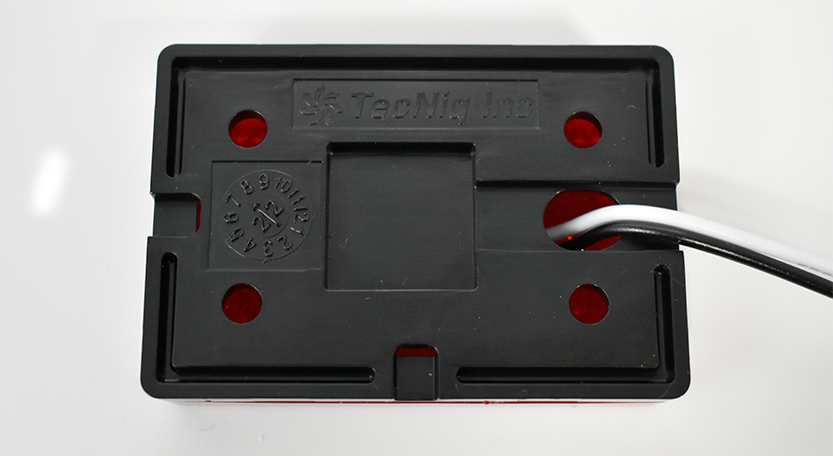

| Mounting | Surface-mounted with #10 Screws. Self grounding option available. |
| LED Colors | Red • Amber |
| Wire Colors |
White Wire - Ground Black Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S25-AA00-1 |
2" x 3" Amber SM w Reflector
|
 |
 |
Unsheathed Pigtail (11") | ||
| S25-AA0MN-1 |
2" x 3" Amber SM w Reflector w 156 bullet and barrel
|
|
|
0.156" Bul / Barrel | ||
| S25-AAGBS-1 |
2" x 3" Amber SM w Reflector w/ gnd ring and 180 bullet/barrel
|
|
|
0.180" Bul / GND Ring | ||
| S25-RR00-1 |
2" x 3" Red SM w Reflector
|
 |
 |
Unsheathed Pigtail (11") | ||
| S25-RR0MN-1 |
2" x 3" Red SM w Reflector w 156 bullet and barrel
|
|
|
0.156" Bul / Barrel | ||
| S25-RRGBS-1 |
2" x 3" Red SM w Reflector w/ gnd ring and 180 bullet/barrel
|
|
|
0.180" Bul / GND Ring |
