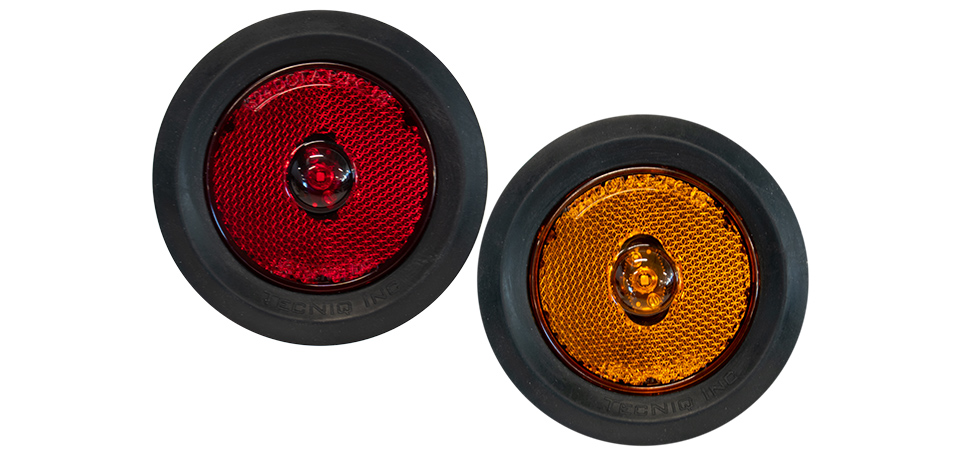

S24 2.5" PC Side Marker w/reflector
S24 2.5" PC Side Marker w/reflector
Technical Features
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Excellent impact and UV resistance - Automotive exterior lighting grade polycarbonate
- IP68 Rated - Dust and water proof with hermetic seal
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- Standard non-polarized connector
- Energy efficient: Draws only 0.07A at 12VDC
- WIRE COLORS
Bidirectional positive and ground
The S24's 2.5" side marker is designed with integrated reflector, durable impact resistant lens, automotive grade polycarbonate and standard non-polarized connector.

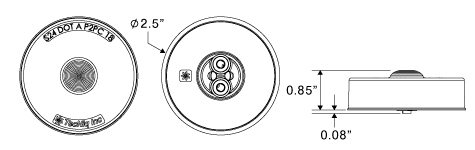

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.068A-0.092A |
| Connectors |
PL2 -Non Polarized Connector
|
| Mounting | Grommet-mounted into standard hole |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Interchangeable Black Wire - Interchangeable |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S10-0G00-1 |
2.5" Round Sidemarker Grommet
|
150 | - | |||
| S10-0G01-1 |
2.5IN Closed Round Sidemarker Grommet
|
|||||
| S24-AA00-1 |
2.5IN Round Amber PC Sidemarker w/Reflector
|
 |
 |
125 | Fem 2 Pole (S99-0010-1) | |
| S24-RR00-1 |
2.5IN Round Red PC Sidemarker w/Reflector
|
 |
 |
125 | Fem 2 Pole (S99-0010-1) |
