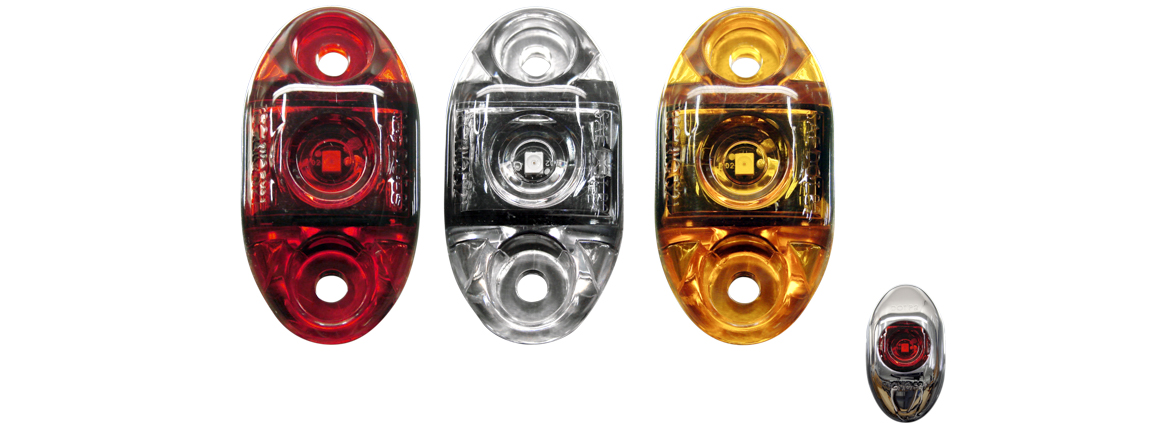

S21 Heavy Duty Oval Marker Lamp
S21 Heavy Duty Oval Marker Lamp
Technical Features
- Another great combination of appealing appearance and extreme durability
- Optional 316 stainless steel cover, hides the fasteners
Excellent impact and UV resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Red/Amber – Positive
The S21 incorporates high-end LEDs and circuit board materials, sealed in extra-thick polycarbonate to produce a tough and reliable LED lighting solution at an exceptional price. Next-generation LEDs provides a superior brightness level several times the required specification. You can use the light as-is, or dress it up with a high-polish stainless steel snap-on cover to give it that finished' look.

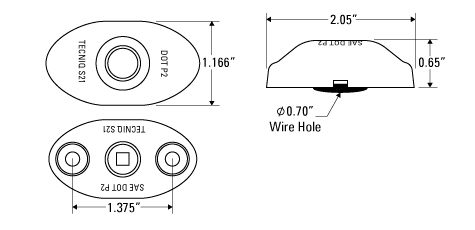

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.04A-0.07A - Red/Amber |
| Connectors | 9" pigtail |
| Mounting | Surface-mounted with 1.375" hole spacing |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Red or Amber Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S21-0G00-1 |
Sidemarker Gasket
|
100 | - | |||
| S21-0G20-1 |
Sidemarker Molded Rubber Gasket
|
100 | - | |||
| S21-0S00-1 |
2" Oval Sidemarker SS Trim Ring
|
100 | - | |||
| S21-AA00-1 |
2" Oval Amber Sidemarker Amber Lens
|
 |
 |
100 | Sheathed Pigtail | |
| S21-AAG0-1 |
2" Oval Amber Sidemarker Amber Lens Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S21-AAGB-1 |
2" Oval Amber Sidemarker Amber Lens Self Grounding .180 Bullet
|
|
|
100 | Pigtail / 0.180" Bul | |
| S21-AAGBS-1 |
2" Oval Amber Sidemarker Amber Lens Self Grounding .180 Bullet and .180 Barrel
|
|
|
100 | Pigtail / Self grounded | |
| S21-AC00-1 |
2" Oval Amber Sidemarker Clear Lens
|
|
 |
100 | Sheathed Pigtail | |
| S21-AC0B-1 |
2" Oval Amber Sidemarker Clear Lens .180 bullets
|
|
|
100 | Pigtail / 0.180" Bul | |
| S21-ACG0-1 |
2" Oval Amber Sidemarker Clear Lens Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S21-RC00-1 |
2" Oval Red Sidemarker Clear Lens
|
 |
|
100 | Sheathed Pigtail | |
| S21-RC0B-1 |
2" Oval Red Sidemarker Clear Lens 0.180 Bullets
|
|
|
100 | Pigtail / 0.180" Bul | |
| S21-RCG0-1 |
2" Oval Red Sidemarker Clear Lens Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S21-RR00-1 |
2" Oval Red Sidemarker Red Lens
|
|
 |
100 | Sheathed Pigtail | |
| S21-RRG0-1 |
2" Oval Red Sidemarker Red Lens Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S21-RRGB-1 |
2" Oval Red Sidemarker Red Lens Self Grounding w/ .180 Bullet
|
|
|
100 | Pigtail / 0.180" Bul | |
| S21-RRGBS-1 |
2" Oval Red Sidemarker Red Lens Self Grounding w/ .180 Bullet and .180 Barrel
|
|
|
100 | Pigtail / Self grounded |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
