S19 PC Rated 1" x 4" Side Marker
S19 PC Rated 1" x 4" Side Marker
Technical Features
- Easily installed surface mounted with self-grounding base (sold separately)
- Standard non-polarized male connector
Excellent impact and UV resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable life performance over 100,000 hours
- WIRE COLORS
Bidirectional positive and ground

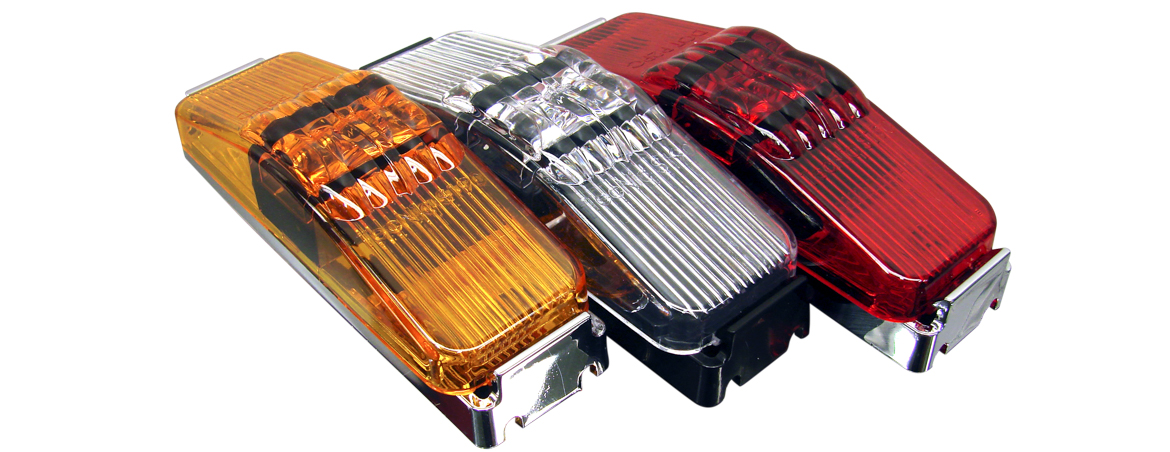

The TecNiq S19 ultra-efficient lenses, combine with our unique materials and next generation LEDs to make this PC rated lamp ideal for those who demand world-class performance at an exceptional price.

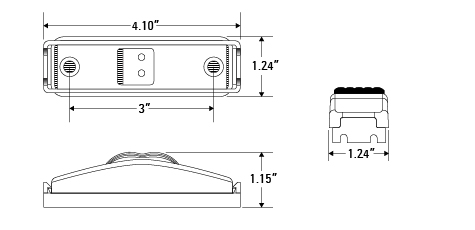

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.04A-0.07A - Red/Amber |
| Connectors |
Mounts with self-grounding base
|
| Mounting | Surface-mounted with 3" hole spacing |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
Black Wire - 12VDC Power Grounding Ring - Ground |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|

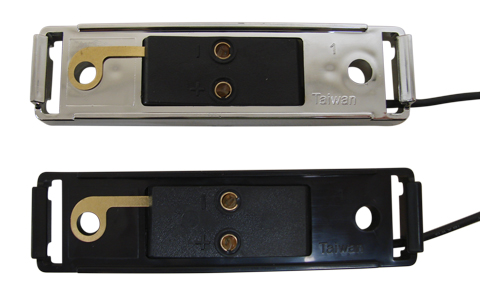

| S19-0B00-1 |
Black 1" x4" Self Grounding Base
|
120 | - | |||
| S19-0C00-1 |
Chrome 1" x4" Self Grounding Base
|
120 | - | |||
| S19-AA00-1 |
1"x4" Amber PC Sidemarker Amber Lens
|
 |
 |
120 | Self-grounding base | |
| S19-AC00-1 |
1"x4" Amber PC Sidemarker Clear Lens
|
|
 |
120 | Self-grounding base | |
| S19-RC00-1 |
1"x4" Red PC Sidemarker Clear Lens
|
 |
|
120 | Self-grounding base | |
| S19-RR00-1 |
1"x4" Red PC Sidemarker Red Lens
|
|
 |
120 | Self-grounding base |
