S18 PC/P2 Rated Marker Light
S18 PC/P2 Rated Marker Light
Technical Features
- Great combination of sleek, smooth design that is extremely tough

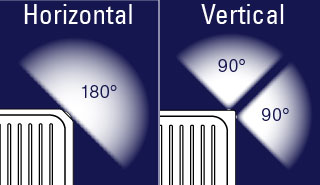

- Vertical mount position meets P2 specifications, while horizontal mount meets PC specifications.
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable life performance over 100,000 hours
- WIRE COLORS
White – Ground, Red/Amber – Positive

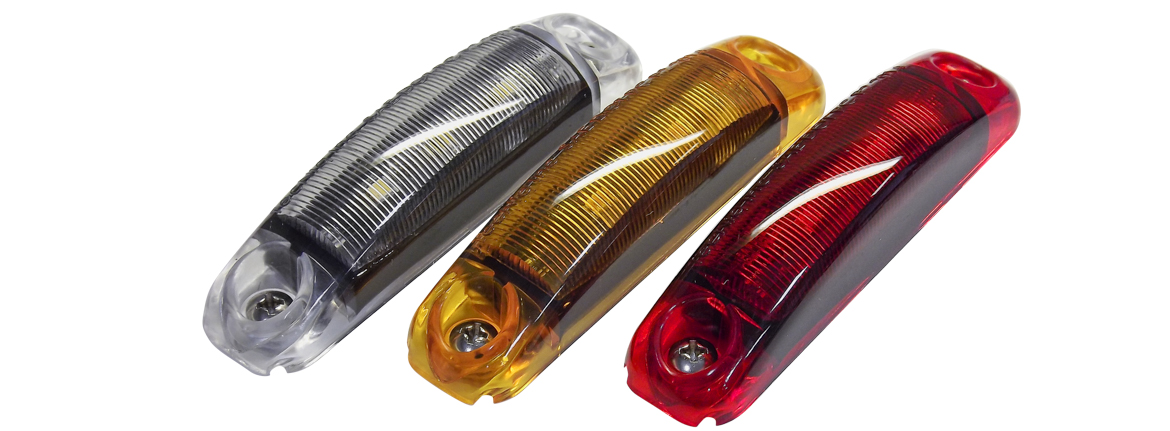

Introducing our new LED Surface Mounted Sidemarker and Area Light - the S18. These new lights provide a combination of great design, ease of installation, and long term durability. This new product line is available in red, amber, and clear lens styles.

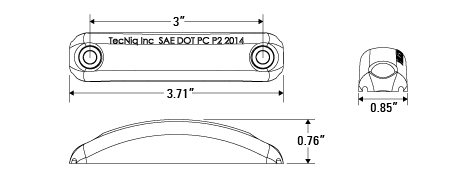

| Dimensions |
|
| LEDs |
2 - Red/Amber 3 - White |
| Voltage | 9-14VDC |
| Current |
0.06A-0.08A - Colored lens 0.05A-0.07A - Clear Lens 0.10A-0.15A - White |
| Connectors |

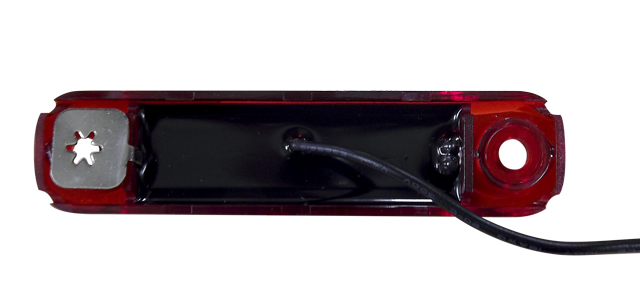

Self Grounding w/ 9" positive
|
| Mounting | Surface-mounted with 3" hole spacing |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Red or Amber Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S18-0G00-1 |
S18 Neoprene Gasket
|
100 | - | |||
| S18-AA00-1 |
S18 Sidemarker Amber Lens Amber LED
|
 |
 |
100 | Pigtail | |
| S18-AAG0-1 |
S18 Sidemarker Amber Lens Amber LED Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S18-AC00-1 |
S18 Sidemarker Clear Lens Amber LED
|
|
 |
100 | Pigtail | |
| S18-ACG0-1 |
S18 Sidemarker Clear Lens Amber LED Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S18-ACGB-1 |
PC/P2 Sidemarker Lt SM Amb Clr Lens SM Self Grnd 7.5IN 180 Bullet
|
|
|
|||
| S18-RC00-1 |
S18 Sidemarker Clear Lens Red LED
|
 |
|
100 | Pigtail | |
| S18-RCG0-1 |
S18 Sidemarker Clear Lens Red LED Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S18-RCGB-1 |
PC/P2 Sidemarker Lt SM Red Clr Lens SM Self Grnd 7.5IN 180 Bullet
|
|
|
|||
| S18-RR00-1 |
S18 Sidemarker Red Lens Red LED
|
|
 |
100 | Pigtail | |
| S18-RR10-1 |
Sidemarker SM Red 2LED Red Lns 14IN PgTl
|
|
|
|||
| S18-RRG0-1 |
S18 Sidemarker Red Lens Red LED Self Grounding
|
|
|
100 | Pigtail / Self grounded | |
| S18-WC00-1 |
S18 Area Lamp Clear Lens White LED
|
 |
|
100 | Pigtail | |
| S18-WC0D-1 |
S18 Area Lamp Clear Lens White LED W/Delphi
|
|
|
100 | Delphi |
