S17 PC/P2 Rated Marker Light
S17 PC/P2 Rated Marker Light
Technical Features
- Surface mounted PC/P2 rated marker light
- Optional chrome bezel, offers premium appearance
- Custom fit TPE gaskets also available
- Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- WIRE COLORS
White – Ground, Red/Amber – Positive

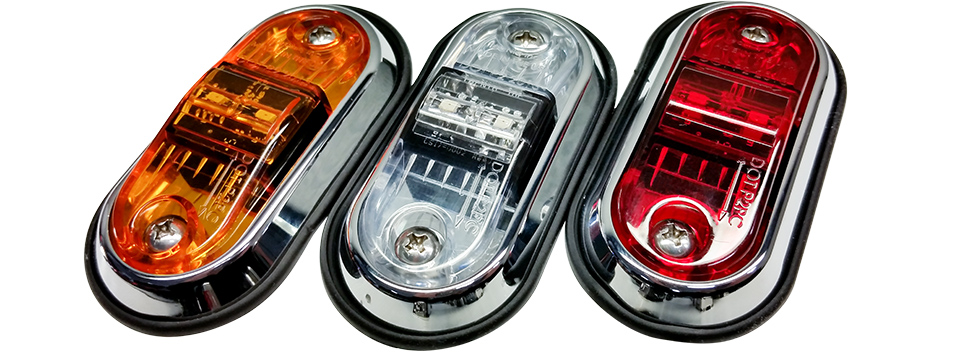

The S17 marker lights provide a combination of great design, ease of installation, and long term durability. This new product line is available in red, amber, and clear lens styles.

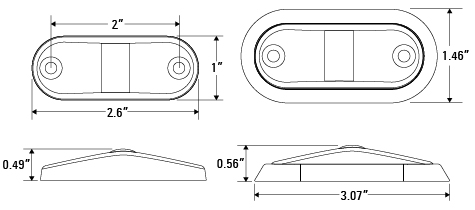

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored lens 0.04A-0.07A - Clear Lens |
| Mounting | Surface-mounted with 2" hole spacing |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Ground Red or Amber Wire - 12VDC Power |
| Ground | White |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S17-0AS0-1 |

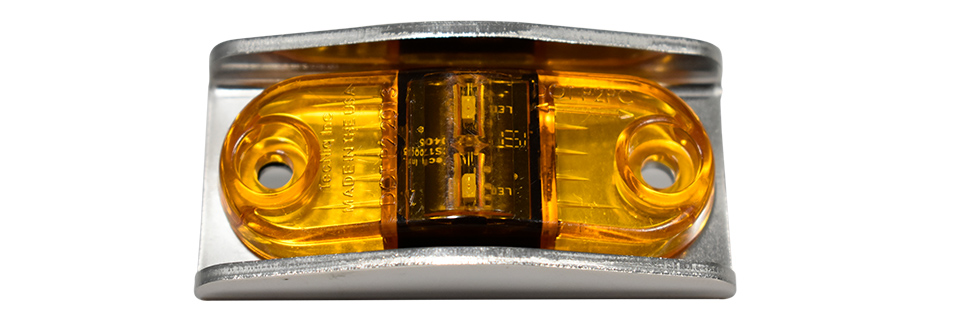

S17 Sidemarker Aluminum Mounting Bracket
|
100 | - | |||
| S17-0B00-1 |
S17 Black Back
|
100 | - | |||
| S17-0C00-1 |
S17 Chrome Back
|
100 | - | |||
| S17-0G00-1 |
S17 Small Gasket
|
100 | - | |||
| S17-0G20-1 |
S17 Large Gasket
|
100 | - | |||
| S17-0GB0-1 |
S17 Large Gasket with Black Back Kit
|
100 | - | |||
| S17-0GC0-1 |
S17 Large Gasket with Chrome Back Kit
|
100 | - | |||
| S17-0SS0-1 |
S17 Sidemarker SS Mounting Bracket
|
100 | - | |||
| S17-AA0P-1 |
S17 Amber PCP2 Marker Light Amber Lens Pigtail
|
 |
 |
100 | Pigtail | |
| S17-AA10-1 |
Amber 2LED Amber Lens Sidemarker SM 14IN Lead
|
|
|
100 | Pigtail | |
| S17-AA20-1 |
S17 Amber PCP2 Marker Dual Intensity Light Amber Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-AA2F-1 |
Dual intensity amber w/ DTM06-3S
|
|
|
|||
| S17-AA2G0-1 |
Amber PCP2 Marker Dual intensity with gasket 12" wire
|
|
|
100 | Pigtail | |
| S17-AAG0-1 |
S17 Amber PCP2 Marker Light Amber Lens Self Ground Pigtail
|
|
|
100 | Pigtail / Self grounded | |
| S17-AAGB-1 |
S17 Amber PCP2 Marker Light Amber Lens .180 Bullet w/#10 GND Ring
|
|
|
100 | 0.180" Bul / GND Ring | |
| S17-AC0M-1 |
S17 Amber P2PC SM Light Clear Lens w/.156" Bullets
|
|
 |
100 | Pigtail / 0.156" Bullet | |
| S17-AC0P-1 |
S17 Amber PCP2 Marker Light Clear Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-ACG0-1 |
S17 Amber PCP2 Marker Light Clear Lens Self Ground Pigtail
|
|
|
100 | Pigtail / Self grounded | |
| S17-ACGB-1 |
**PC/P2 Sidemarker Lt SM Amb Self Ground 180 Bul
|
|
|
|||
| S17-AT0B-1 |
**Amber 2LED Tinted Lens SM PCP2 Marker 5.5IN Lead W/.180IN Bullets
|
|
 |
|||
| S17-AT0P-1 |

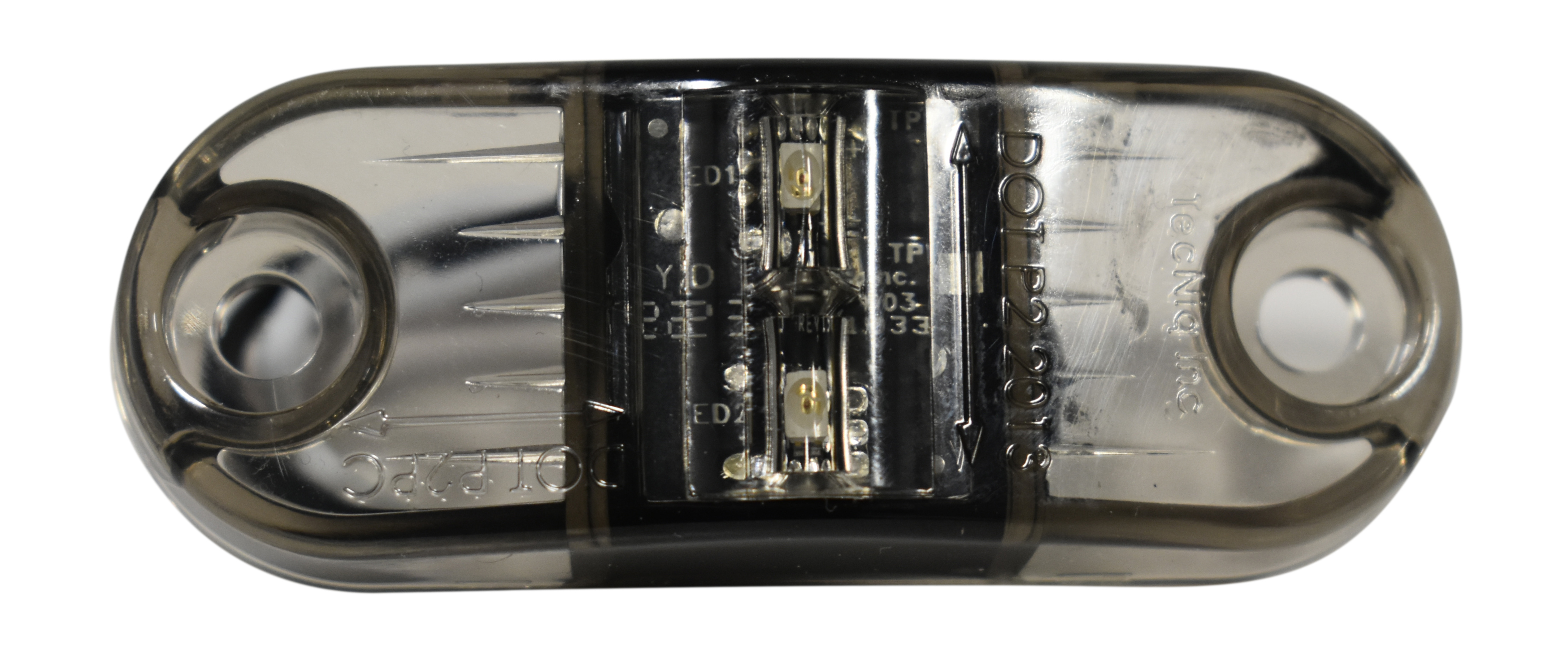

S17 Amber PCP2 Marker Light Tinted Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-ATG0-1 |
S17 Amber PCP2 Marker Light Tinted Lens Self Ground Pigtail
|
|
|
100 | Pigtail/Self grounded | |
| S17-ATGB-1 |
**Amber 2LED Tinted Lens Self Ground SM PCP2 Marker 5.5IN Lead W/.180IN Bullet
|
|
|
|||
| S17-RC0M-1 |
S17 Red P2PC SM Light Clear Lens w/.156" Bullets
|
 |
|
100 | 0.156" Bullets | |
| S17-RC0P-1 |
S17 Red PCP2 Marker Light Clear Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-RCG0-1 |
S17 Red PCP2 Marker Light Clear Lens Self Ground Pigtail
|
|
|
100 | Pigtail / Self grounded | |
| S17-RCGB-1 |
**PC/P2 Sidemarker Lt SM Red Self Ground 180 Bul
|
|
|
|||
| S17-RR0C-1 |
Single Intensity Red with C Connector + Red Lens
|
|
 |
|||
| S17-RR0P-1 |
S17 Red PCP2 Marker Light Red Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-RR10-1 |
Red 2LED Red Lens Sidemarker SM 14IN Lead
|
|
|
100 | Pigtail | |
| S17-RR2G0-1 |
S17 Red PCP2 Marker Dual intensity with gasket
|
|
|
100 | Pigtail | |
| S17-RRG0-1 |
S17 Red PCP2 Marker Light Red Lens Self Ground Pigtail
|
|
|
100 | Pigtail / Self grounded | |
| S17-RRGB-1 |
S17 Red PCP2 Marker Light Red Lens .180 Bullet w/#10 GND Ring
|
|
|
100 | 0.180" Bul / GND Ring | |
| S17-RT0B-1 |
**Red 2LED Tinted Lens SM PCP2 Marker 5.5IN Lead W/.180IN Bullets
|
|
|
|||
| S17-RT0P-1 |
S17 Red PCP2 Marker Light Tinted Lens Pigtail
|
|
|
100 | Pigtail | |
| S17-RTG0-1 |
S17 Red PCP2 Marker Light Tinted Lens Self Ground Pigtail
|
|
|
100 | Pigtail / Self grounded | |
| S17-RTGB-1 |
**Red 2LED Tinted Lens Self Ground SM PCP2 Marker 5.5IN Lead W/.180IN Bullet
|
|
|
