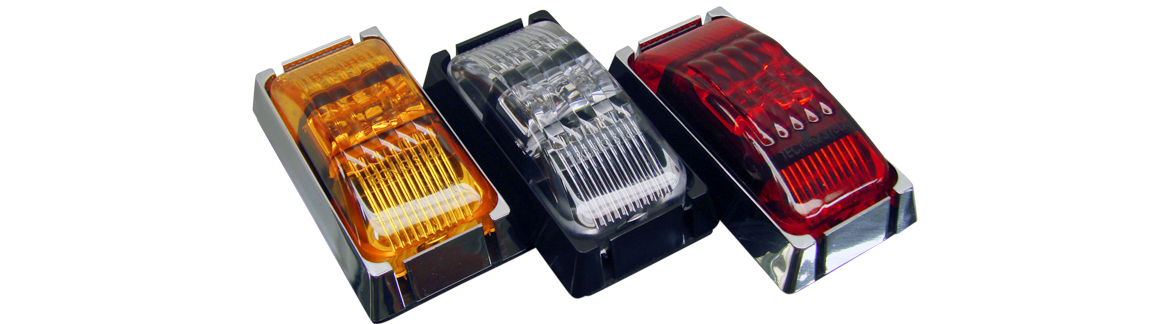

S15 PC Clearance Side Marker Lighting
S15 PC Clearance Side Marker Lighting
Technical Features
- Surface mount installation, with our durable mounting base (sold separately)
- Excellent UV Resistance - Automotive exterior lighting grade polycarbonate
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- IP68 Rated - Dust and water proof
- Durable impact resistant lens
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- Standard non-polarized connector
- WIRE COLORS
Bidirectional positive and ground
The TecNiq S15 produces a full 180 degrees of brilliant light, the S15 exceeds FMVSS standards and provides 100,000 hours of trouble-free performance.

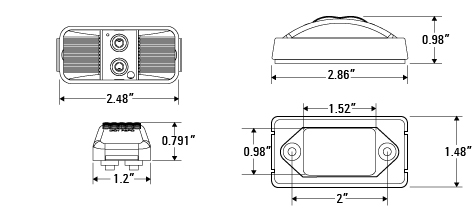

| Dimensions |
|
| LEDs | 1 |
| Voltage | 9-14VDC |
| Current | 0.04A-0.07A - Red/Amber |
| Connectors |
PL2 -Non Polarized Connector
|
| Mounting | Surface-mounted with 2" hole spacing |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
White Wire - Interchangeable Black Wire - Interchangeable |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S15-0B00-1 |
Model S150 Base Black
|
100 | - | |||
| S15-0G00-1 |
Model S150 Grommet Black
|
100 | - | |||
| S15-0S00-1 |
Model S150 Base Chrome
|
100 | - | |||
| S15-AA00-1 |
Model S150 Amber PC Sidemarker Amber Lens
|
 |
 |
120 | Fem 2 Pole | |
| S15-AA0P-1 |
Model S150 Amber PC Sidemarker Amber Lens 14" Pigtail
|
|
|
200 | Pigtail | |
| S15-AC00-1 |
Model S150 Amber PC Sidemarker Clear Lens
|
|
 |
120 | Fem 2 Pole | |
| S15-AC0P-1 |
Model S150 Amber PC Sidemarker Clear Lens 14" Pigtail
|
|
|
200 | Pigtail | |
| S15-RC00-1 |
Model S150 Red PC Sidemarker Clear Lens
|
 |
|
120 | Fem 2 Pole | |
| S15-RC0P-1 |
Model S150 Red PC Sidemarker Clear Lens 14" Pigtail
|
|
|
200 | Pigtail | |
| S15-RR00-1 |
Model S150 Red PC Sidemarker Red Lens
|
|
 |
120 | Fem 2 Pole | |
| S15-RR0P-1 |
Model S150 Red PC Sidemarker Red Lens 14" Pigtail
|
|
|
200 | Pigtail | |
| S99-0010-1 |
T12-6IN 2-Pole .156IN Bullet with #6 GND Lug
|
Male 2 Pole | ||||
| S99-0016-1 |
T12- 16IN 2-Pole W/#6 Ground Lug
|
Two Pole | ||||
| S99-0018-1 |
T12- 12IN 2-Pole Pigtail Conn
|
Two Pole |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
