S14 PC/P2 Rated Marker Light
S14 PC/P2 Rated Marker Light
Technical Features
- Brilliant illumination in a compact size
- IP68 Rated - Dust and water proof
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Stud-mounted, no visible fasteners
- Exceeds FMVSS 108 standards
- Reliable performance over 100,000 hours
- Vertical mount positions meets P2 specifications, while horizontal mount meets PC specifications
- WIRE COLORS
Black – Positive, Stainless Steel Stud – Ground

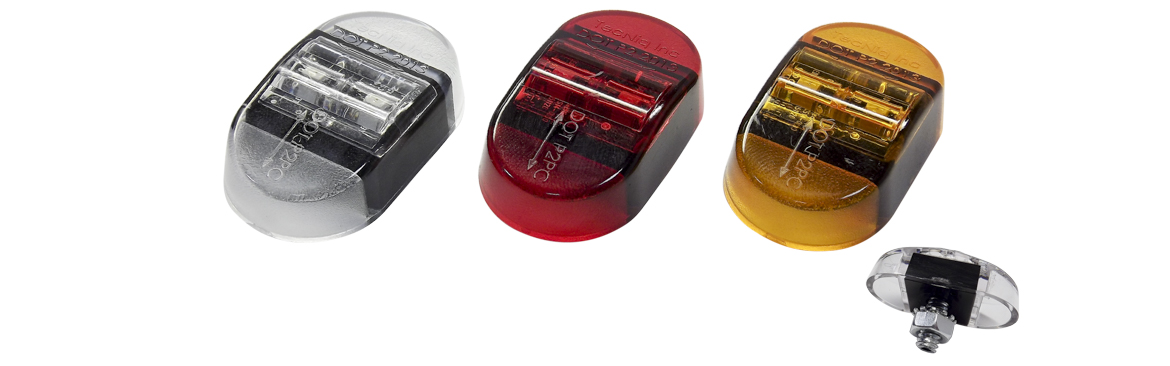

The TecNiq S14 stud mounted side marker is designed to meet both PC and P2 specifications dependent on mounting position. The S14 produces high illumination for a compact size and has no visible fasteners. Built with quality materials, TecSeal and IP68 rated this light is both durable and backed by our lifetime guarantee.

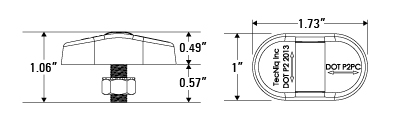

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored lens 0.04A-0.07A - Clear Lens |
| Connectors |
6" 24" |
| Mounting | Stud Mounted, no visible fasteners |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
Black Wire - 12VDC Power Stainless Steel Stud - Ground |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S14-0S40-1 |
S14 Stainless Steel Trim Ring
|
 |
100 | Pigtail | ||
| S14-AAP0-1 |
S14 Amber PCP2 Stud Mount Stainless Steel Marker Light Amber Lens Pigtail
|
 |
 |
100 | Pigtail | |
| S14-AAP1-1 |
S14 Amber PCP2 Stud Mount Stainless Steel Marker Light Amber Lens W/24" Pigtail
|
|
|
100 | Pigtail | |
| S14-AAS0-1 |
S14 Amber PCP2 Stud Mount Marker Light Amber Lens Pigtail
|
|
|
100 | Pigtail | |
| S14-AAS1-1 |
S14 Amber PCP2 Stud Mount Marker Amber Lens, 24" Wire
|
|
|
100 | Pigtail | |
| S14-RCS0-1 |
S14 Red PCP2 Stud Mount Marker Light Clear Lens Pigtail
|
 |
|
100 | Pigtail | |
| S14-RRP0-1 |
S14 Red PCP2 Stud Mount Stainless Steel Marker Light Red Lens Pigtail
|
|
 |
100 | Pigtail | |
| S14-RRP1-1 |
S14 Red PCP2 Stud Mount Stainless Steel Marker Light Red Lens W/24" Pigtail
|
|
|
100 | Pigtail | |
| S14-RRS0-1 |
S14 Red PCP2 Stud Mount Marker Light Red Lens Pigtail
|
|
|
100 | Pigtail | |
| S14-RRS1-1 |
S14 Red PCP2 Stud Mount Marker Red Lens, 24" Wire
|
|
|
100 | Pigtail | |
| S14-RRSB-1 |
Red PCP2 3/8 inch Stud Mount Marker Red Lens With .180 Bullet
|
|
|
100 | Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
