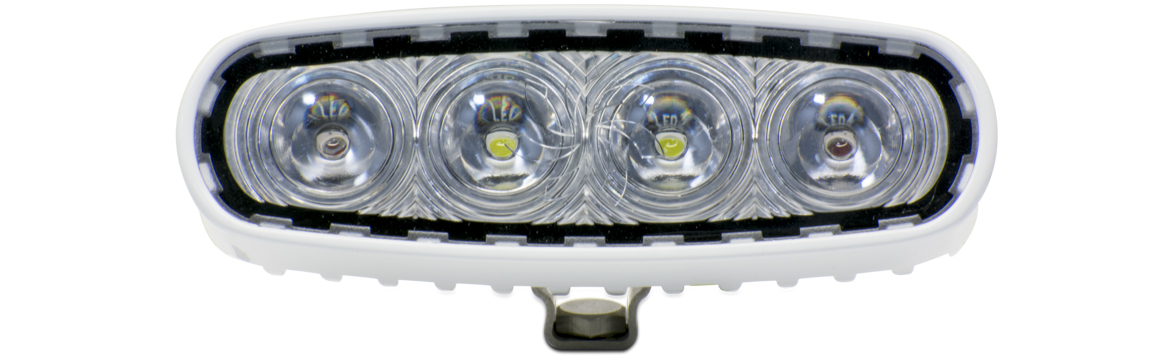

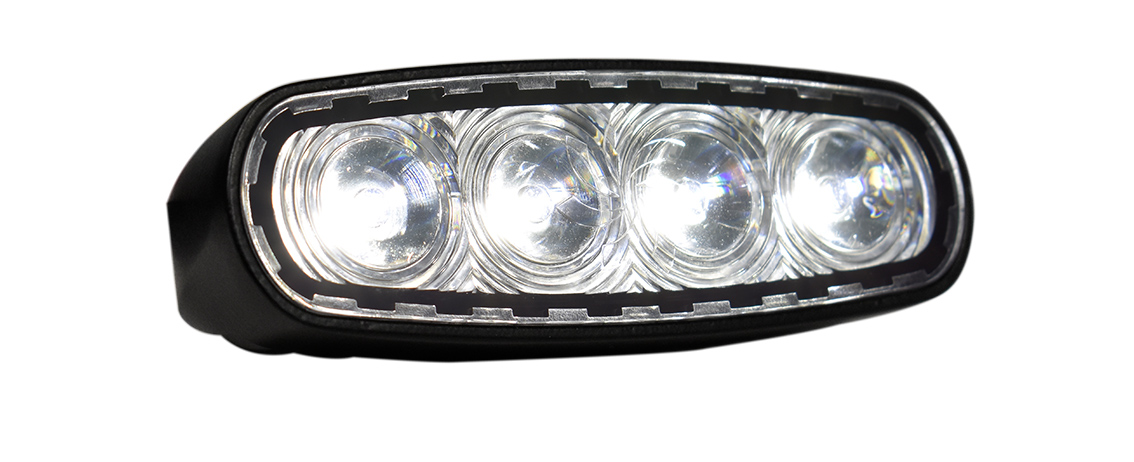

P11 Surface Mounted Spreader Lighting
P11 Surface Mounted Spreader Lighting
Technical Features
- Designed for the most demanding task illumination applications, in the most extreme environments
- Vibration resistant and 100% water proof
- Built with anodized and white powder coated aluminum bodies with impact-resistant polycarbonate flood projection lenses for onal durability
- Available with four high-performance white LEDs, or two white and two night-vision friendly red.
- Proprietary thermal management provides powerful performance in a small package
- Operating voltage range of 9 - 30 VDC
- Completely waterproof and sealed to IP68 standards.
- Reliable performance over 50,000 hours
- Stainless Steel mounting hardware included
- WIRE COLORS
Black – Ground, White – Positive
The TecNiq P11 was built for the demanding task of illumination in the most extreme conditions. Comprised of anodized aluminum, impact resistant polycarbonate, 100% waterproof and vibration resistant - the P11 is a work horse. Proven performance with TecNiq proprietary thermal management testing and IP68 rated. Our flush mount work light beats the
competition in quality and performance.

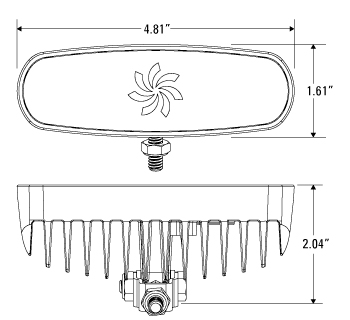

| Dimensions |
|
| LEDs |
4 (white) 2 + 2 red (red option) |
| Lumens |
1450 Lumens 825 Lumens + 160 (red combo model) |
| Voltage | 9-30VDC |
| Current |
12V/24V 1.6A / 0.8A (White) 0.8A +0.3A(red) / 0.4A +0.15A(red) |
| Connectors | 9" Pigtail |
| Mounting | Mounts with 5/8" mounting bolt and hardware (included) |
| Wire Colors |
Black Wire - Ground White Wire - 12/24VDC Power |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| P11-WBBFP-1 |
Blue 2LED White 2LED Spreader Black Housing SM 9IN Lead
|
 |
 |
2 | Sheathed Pigtail (9") | |
| P11-WBFP-1 |
Spreader Light, White LED Surface Mt. Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail (9") | |
| P11-WBWFP-1 |
Blue 2LED White 2LED Spreader White Housing SM 9IN Lead
|
|
|
2 | Sheathed Pigtail (9") | |
| P11-WRBFP-1 |
Spreader Light, White & Red LED, Surface Mt. Black Finish, Pigtail Wires
|
 |
|
2 | Sheathed Pigtail (9") | |
| P11-WRFP-1 |
Spreader Light, White & Red LED, Surface Mt. White Finish, Pigtail Wires
|
|
|
2 | Sheathed Pigtail (9") | |
| P11-WWFP-1 |
Spreader Light, White LED Surface Mt. White Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail (9") |
