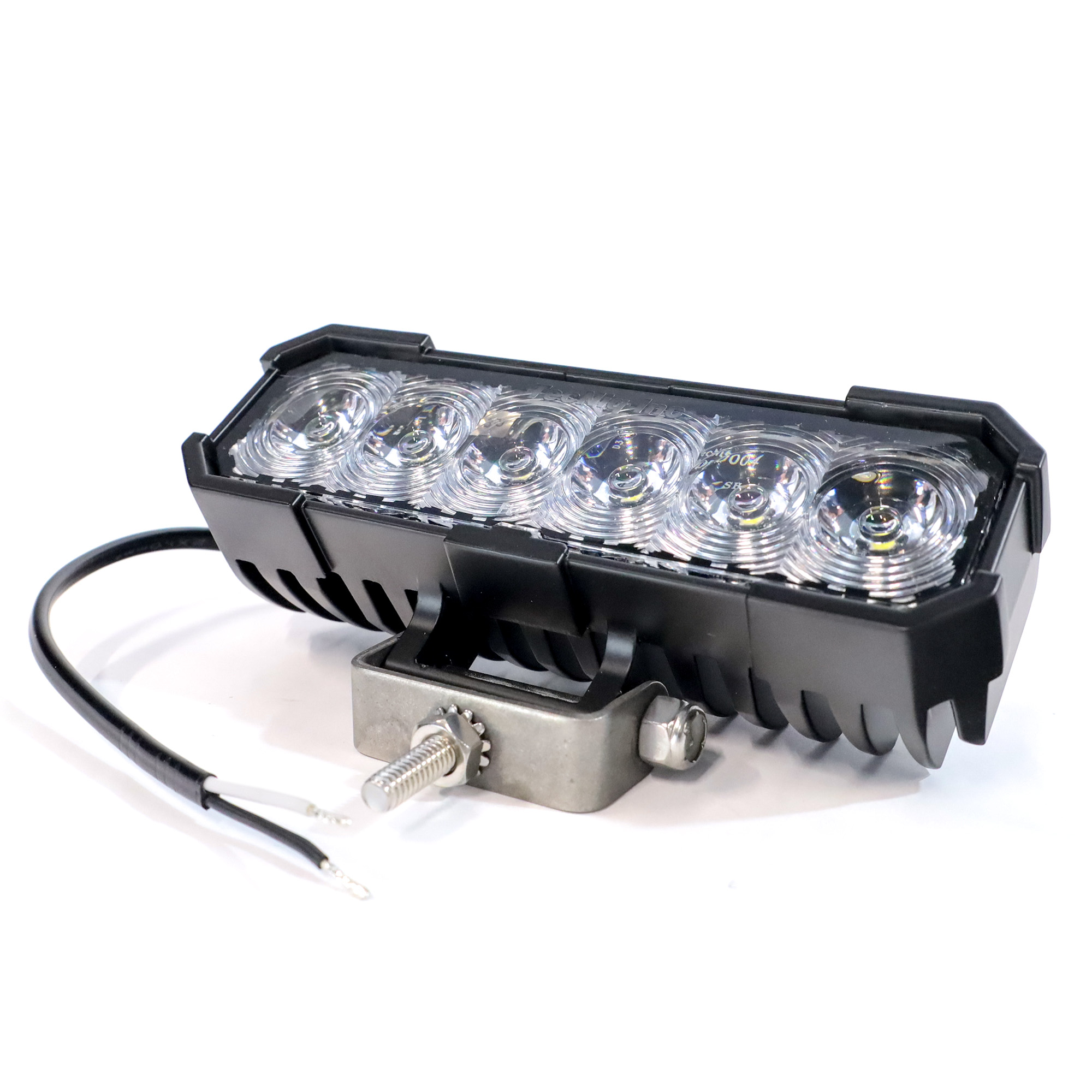

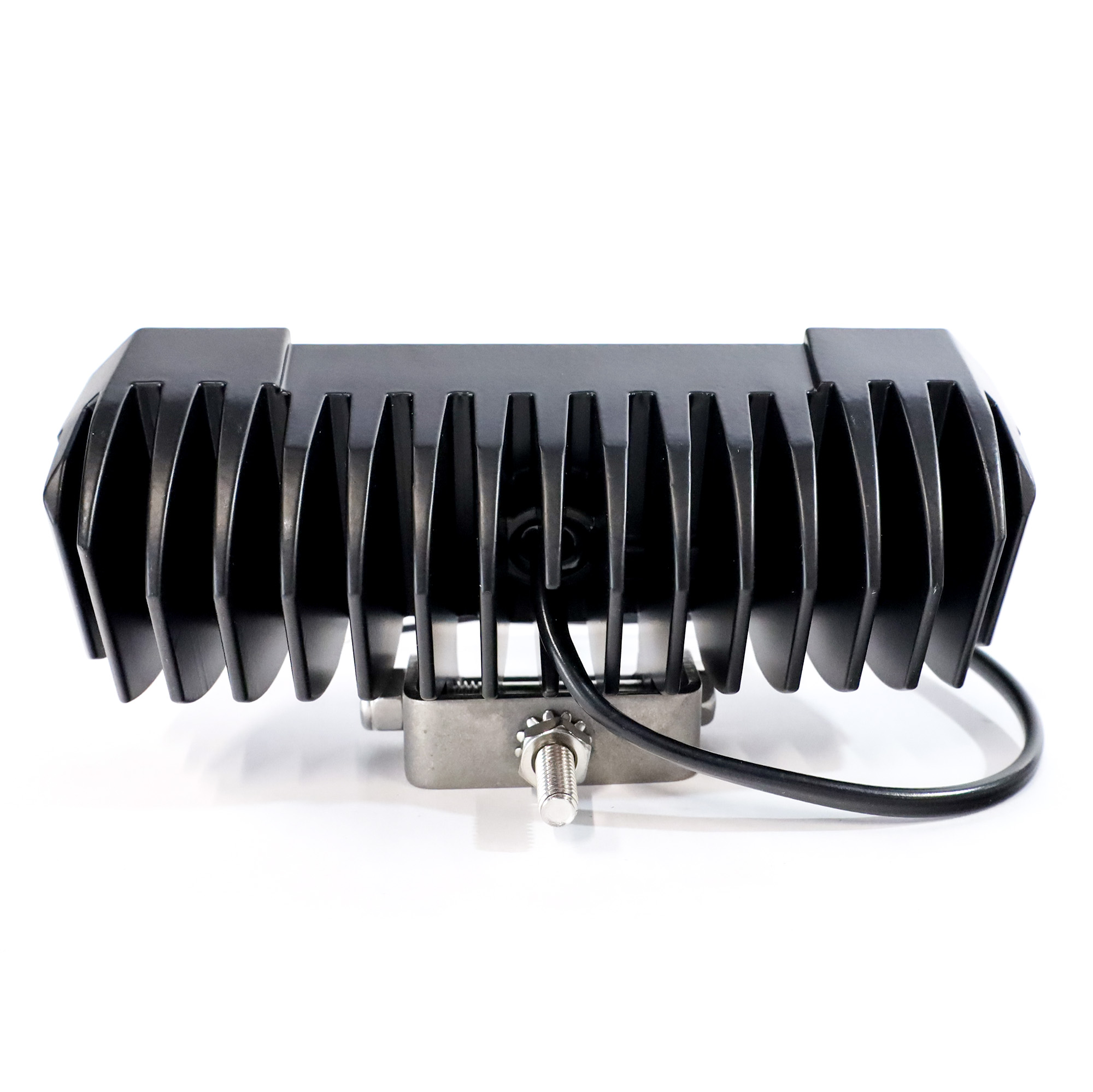

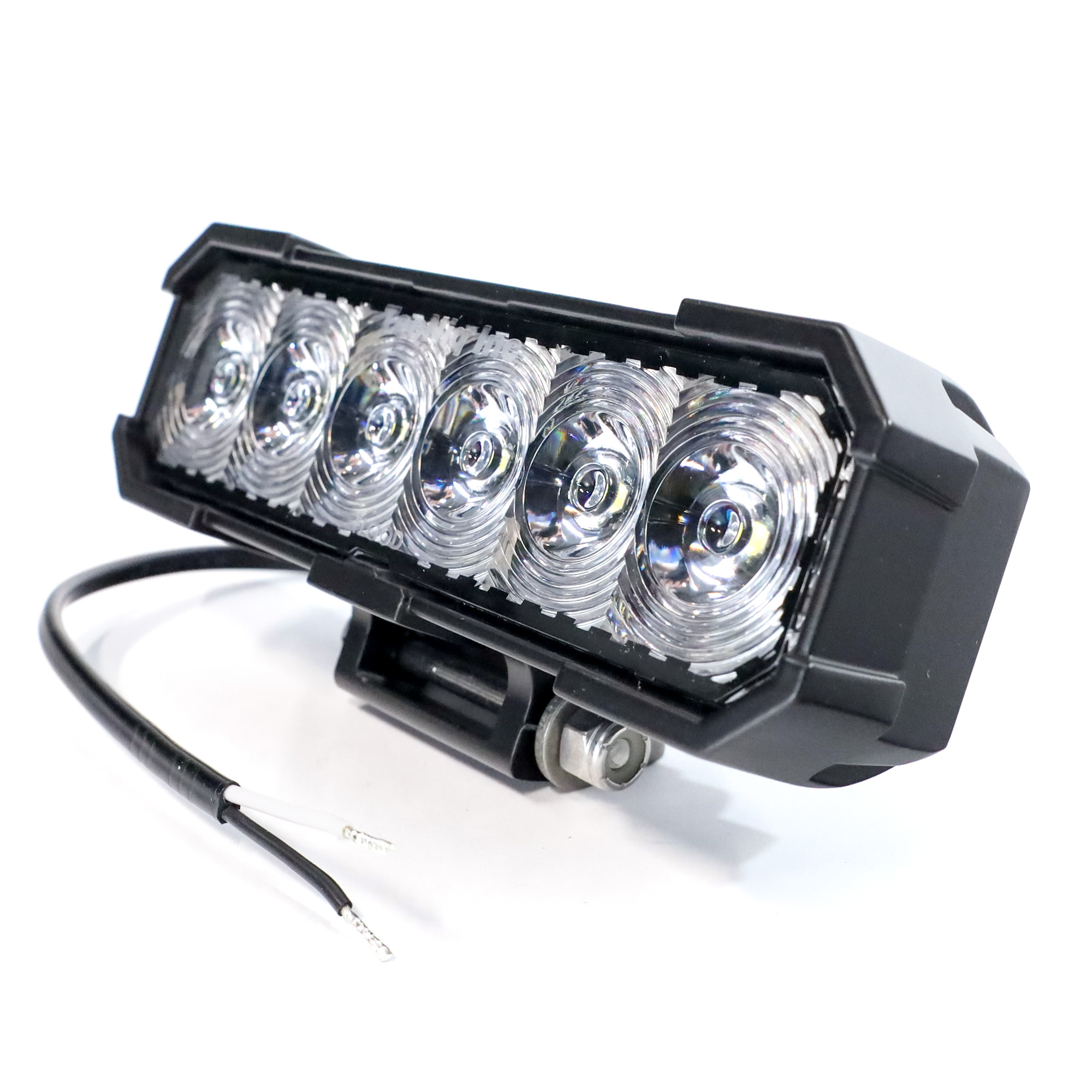

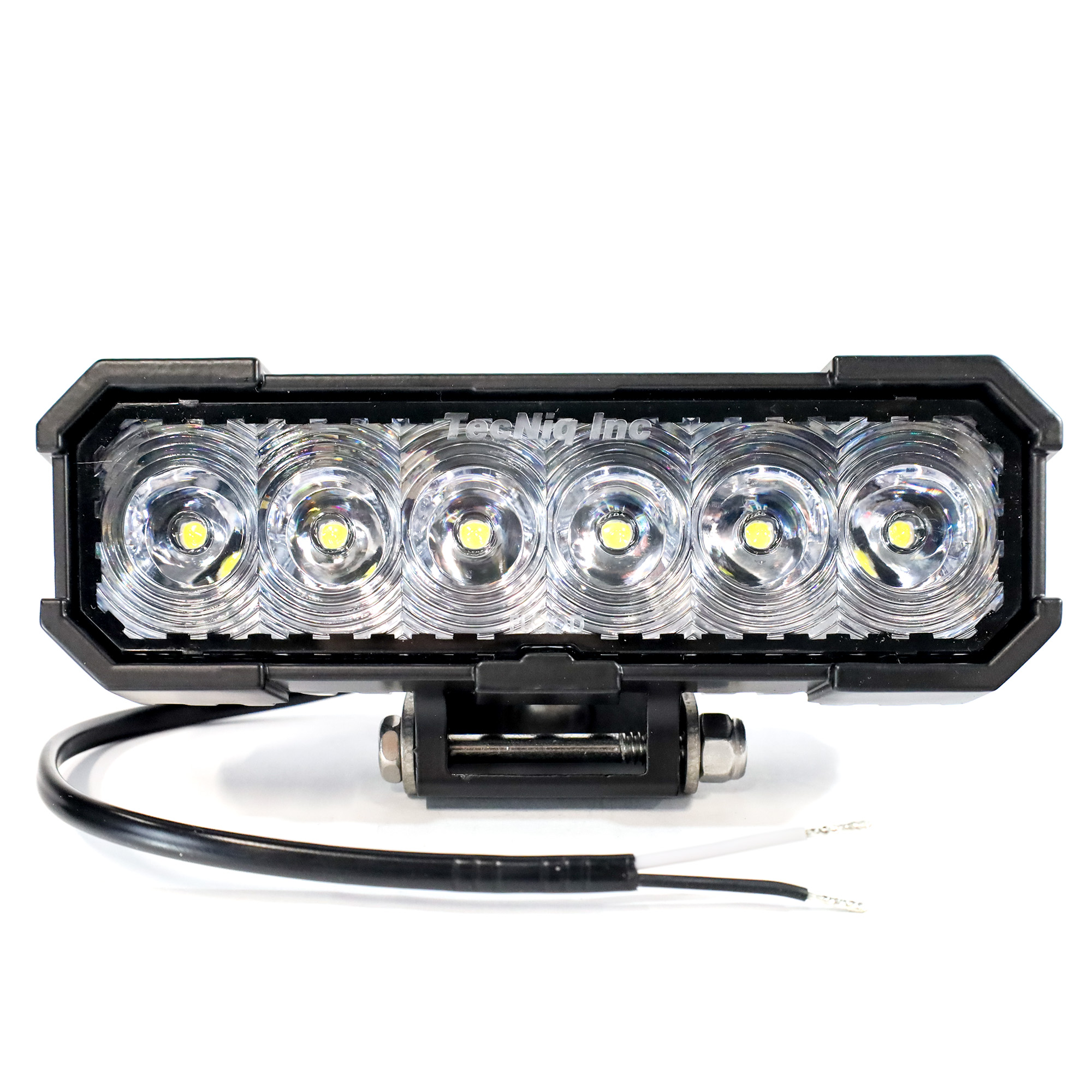

P06 6 LED SteelHead Heavy Duty Work Lighting
P06 6 LED SteelHead Heavy Duty Work Lighting
Technical Features
- Designed for the most demanding task illumination applications, in the most extreme environments
- Vibration resistant and 100% water proof
- Models include Flood or Spot light projection

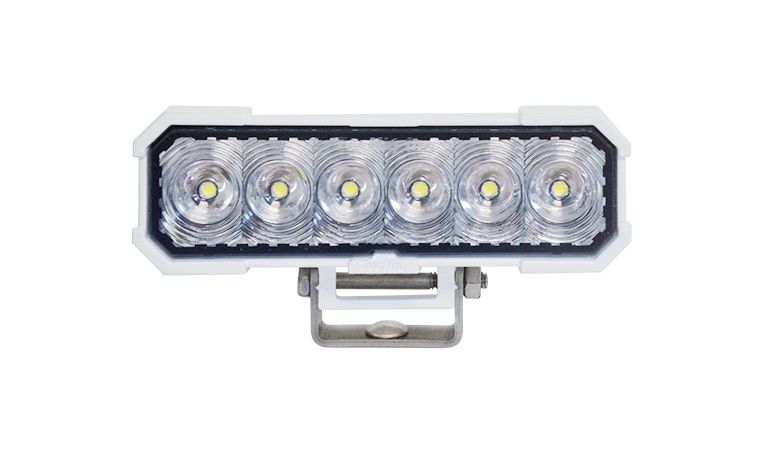

- Available in Black or White Heavy Duty Powder Coating
- Proprietary thermal management provides powerful performance in a small package
- Operating voltage range of 9 - 30 VDC
- IP68 Rated
- Reliable performance over 50,000 hours
- Stainless Steel mounting hardware included
- WIRE COLORS
Black – Ground, White – Positive
The TecNiq Steelhead Line was engineered with the most extreme conditions in mind; 100% waterproof, vibration resistant, IP68 rated, and backed by the TecNiq guarantee. With flood or spot light lens options, and ability to choose from varying lumens, resulting in a heavy duty work lamp that surpasses the competition in performance and quality.
Related Products
| Dimensions |
|
| LEDs | 6 |
| Lumens | 1900 Lumens (6 LED) |
| Voltage | 9-30VDC |
| Current |
6 LED (12V/24V) Amber - 1.30A/0.65A Blue - 1.75A/0.875A Green - 2.00A/1.00A Red - 0.82A/0.41A White - 1.70A/0.85A |
| Connectors | 9" Pigtail |
| Mounting | Mounts with 5/8" mounting bolt and hardware (included) |
| LED Colors | White |
| Wire Colors |
Black Wire - Ground White Wire - 12/24VDC Power |
| Ground | Black |
| Lens Colors | Clear |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| P06-ABFP-1 |
Amber SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires
|
 |
 |
2 | Sheathed Pigtail | |
| P06-ABSP-1 |
Amber SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-BBFP-1 |
Blue SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires
|
 |
|
2 | Sheathed Pigtail | |
| P06-BBSP-1 |
Blue SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-GBFP-1 |
Green SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires
|
 |
|
2 | Sheathed Pigtail | |
| P06-GBSP-1 |
Green SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-RBFP-1 |
Red SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires
|
 |
|
2 | Sheathed Pigtail | |
| P06-RBSP-1 |
Red SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-WBFP-1 |
White SteelHead Flood Lamp 6 LED Black Finish Pigtail Wires
|
 |
|
2 | Sheathed Pigtail | |
| P06-WBSP-1 |
White SteelHead Spot Lamp 6 LED Black Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-WWFP-1 |
SteelHead Flood Lamp 6 LED White Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail | |
| P06-WWSP-1 |
SteelHead Spot Lamp 6 LED White Finish Pigtail Wires
|
|
|
2 | Sheathed Pigtail |
